The Ultimate IoT Gateway Guide: Definition, Features, Architecture & Selection

An IoT Gateway is an intelligent device that acts as the essential bridge between industrial field devices (like PLCs, sensors, and CNCs) and the cloud or IT systems. This guide explains exactly what an industrial IoT gateway does, its key functions (protocol translation, edge computing, security), its core architecture, and a framework for selecting the right one for your IIoT project.

Let's cut through the jargon. You have machines on your factory floor—PLCs, CNCs, sensors. They are full of valuable data, but they speak a dozen different, ancient languages (like Modbus). Your IT systems and cloud platforms (Azure, AWS, SCADA) speak a modern one (like MQTT or HTTP). They can't communicate. Your factory is a digital "Tower of Babel."

The IoT Gateway is the single, indispensable device that solves this problem.

Think of it as a combination of a master translator, a local mini-supercomputer, and a heavily armed security guard, all packed into one rugged box. It's the most critical piece of hardware for any serious Industrial IoT (IIoT) project. This guide will explain exactly what a modern IoT Gateway does, why it's different from a simple router, and how to pick the right one.

In industry, we live in two separate worlds:

1. The OT World (Operational Technology): This is the physical world of production. It's filled with reliable, but often "dumb" and disconnected, hardware like PLCs, VFDs, and sensors. This world values reliability and stability above all else and uses a patchwork of legacy protocols.
2. The IT World (Information Technology): This is the digital world of data. It's fast, cloud-connected, and built on standardized protocols like TCP/IP, HTTP, and MQTT. This world values data, analytics, and scalability.

These two worlds, by default, cannot talk to each other. An IoT Gateway is the purpose-built device that bridges this divide, enabling data to flow securely from the OT world to the IT world so you can actually use it.

A cheap router just passes internet traffic. A professional IoT Gateway performs three critical functions at the "edge" (right next to your machines).

This is the "gateway" part of the name. An industrial IoT gateway speaks the languages of the factory floor.

• It Connects (Southbound): It uses physical ports like RS485, RS232, and industrial Ethernet to connect directly to your PLCs, CNCs, and meters.
• It Translates: It runs "drivers" to understand protocols like Modbus RTU/TCP, Siemens S7, EtherNet/IP, OPC UA, and FOCAS.
• It Standardizes (Northbound): It converts that messy data into a clean, standardized format—usually MQTT with JSON payloads—and sends it securely to your on-premise SCADA or cloud platform (like Azure IoT Hub, AWS IoT Core).

This is what separates a modern IoT Gateway from a simple "protocol converter." Instead of just dumping raw, unfiltered data to the cloud (which is slow and expensive), it processes data locally.

• Data Filtering & Aggregation: Why send temperature data every second if you only need the 1-minute average? The IoT Gateway can calculate this locally, saving massive amounts of bandwidth and cloud cost.
• Real-Time Alerts: If a motor's vibration exceeds a threshold, the gateway can detect it instantly and send a single critical alert, rather than waiting for the cloud to analyze it.
• Run Custom Apps: Advanced gateways (like Robustel's EG series) run an open OS like Debian Linux and support Docker. This means your developers can deploy custom applications (in Python, C++, etc.) or even AI models directly onto the IoT Gateway itself. Add One Product: EG5120

Connecting your factory floor (OT) directly to the internet (IT) is a massive cybersecurity risk. A compromised PLC can bring your entire production line to a halt.

• OT/IT Isolation: The IoT Gateway acts as a secure firewall, standing between your sensitive OT network and the outside world. It ensures that only authorized data (e.g., outbound MQTT on port 8883) can pass through, blocking all other traffic.
• Secure Tunneling: It establishes secure, encrypted VPN (Virtual Private Network) tunnels (like IPsec or OpenVPN) to the cloud, ensuring data integrity.
• Trusted Hardware: Professional industrial gateways are designed with security in mind, often adhering to standards like IEC 62443 and undergoing third-party penetration testing to ensure they are hardened against attacks.

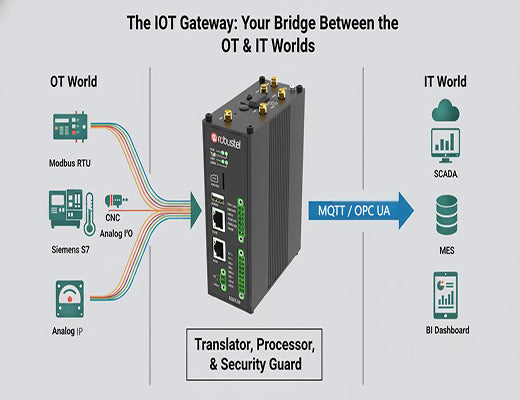

The concept is simple but powerful. The IoT Gateway sits at the center of your data flow:

1. Southbound: Physical I/O (RS485, DI/DO, Ethernet) connects to your field assets (PLCs, CNCs, Sensors).
2. Gateway (Edge Layer): The IoT Gateway (e.g., an Add One Product: EG5120 IoT gateway) polls the devices, translates their protocols (like Modbus), runs edge computing logic (like filtering or AI), and buffers data.
3. Northbound: The gateway uses a secure connection (4G/5G Cellular, Wi-Fi, or Wired WAN) to publish the processed, standardized data (e.g., as MQTT) to the cloud.
4. Cloud Layer: A platform (like Add One Product: RCMS for device management or a SCADA/MES/BI platform) receives, stores, visualizes, and analyzes the data to provide business insights.

• A Router (like your home Wi-Fi router) directs data packets between networks (Network Layer 3). It doesn't know what the data is; it just forwards it.
• An IoT Gateway is a data-aware device (Application Layer 7). It understands the data (Modbus, S7), transforms it (to MQTT), and processes it (edge computing). It contains a router for connectivity, but its main job is data translation and processing.

• A PLC (Programmable Logic Controller) is a real-time control computer. Its job is to run a loop every few milliseconds to safely control a machine. It must be ultra-reliable and deterministic.
• An IoT Gateway is a data collection and processing computer. Its job is to talk to the PLC (as a separate device), collect its data, and send it to the cloud. It is not designed for real-time machine control.

They work together: The PLC runs the machine, and the IoT Gateway monitors the PLC.

When evaluating an industrial IoT gateway, don't just look at the price tag. Focus on these critical factors:

• Protocol Support: Does it natively support the protocols your machines use (Modbus, S7, EtherNet/IP, FOCAS, etc.)?
• Physical I/O: Does it have the right ports? (e.g., enough RS485 ports, Digital Inputs/Outputs for simple sensors).
• Compute Power & OS: Is it a fixed-function "black box," or is it a true edge computing gateway with a powerful CPU and an open OS (like Debian/Docker) for future-proofing?
• Connectivity: How does it connect to the cloud? Reliable 4G/5G cellular (like in Robustel's devices) is often more flexible and secure than relying on guest Wi-Fi.
• Industrial Hardening: Is it truly "industrial"? Look for wide operating temperature ranges (-25°C to +70°C), DIN rail mounting, and high EMC ratings.
• Security: Is it just a basic firewall? Or does the vendor have IEC 62443 certifications and a history of regular security patches?
• Cloud Management Platform: This is a huge one. How will you manage 1,000 devices? A powerful platform like RCMS for remote monitoring, zero-touch deployment, and secure OTA updates is non-negotiable for any serious deployment.

The IoT Gateway is far more than a simple connector box; it's the intelligent, secure, and rugged heart of any modern industrial data solution. It's the critical piece that unlocks the value trapped inside your machinery by bridging the gap between the physical OT world and the digital IT world.

Choosing the right IoT Gateway—one with the right protocol support, edge computing power, and robust security—is the most important first step in your digital transformation.
