LoRaWAN Gateway via Satellite: Future of Remote IoT

Cellular networks cover less than 15% of the Earth's surface. For the ocean, the desert, or the polar caps, 4G is useless. This guide explores the frontier of "LoRaWAN over Satellite." We distinguish between "Direct-to-Satellite" (sensors talking to space) and "Satellite Backhaul" (sensors talking to a LoRaWAN gateway, which talks to space). We argue that for industrial applications, the Gateway approach is superior. It allows for real-time local control, significantly lower satellite data costs, and higher sensor density. We also discuss how to connect a standard LoRaWAN gateway to LEO services like Starlink for high-speed remote backhaul.

What do you do when you need to monitor a buoy in the middle of the Pacific Ocean? Or a pipeline in the Sahara Desert?

You cannot run a cable. You cannot find a 4G signal.

For a long time, the answer was "you don't." But the New Space Race has changed the equation. Satellite connectivity is becoming cheaper and faster.

While there is hype around sensors talking directly to satellites, the most robust industrial solution remains the LoRaWAN gateway.

By using a gateway as the local "Hub" and a satellite link as the "Pipe," you can deploy a network literally anywhere on Earth. This guide explains the architecture of Satellite IoT.

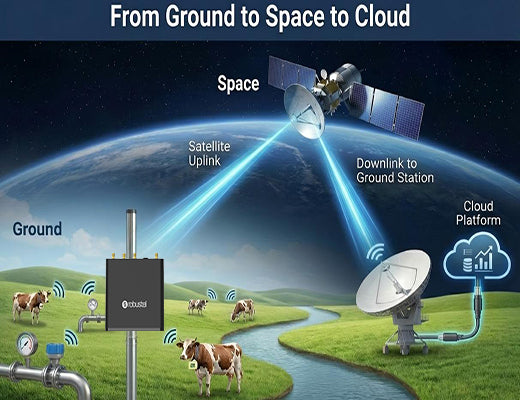

In this model, the LoRaWAN gateway functions exactly as it does in a city. It listens to sensors on the ground (or ship).

The difference is the Backhaul. Instead of plugging into a 4G modem or fiber switch, the LoRaWAN gateway Ethernet port connects to a Satellite Terminal (like a Starlink Dish, Iridium Edge, or BGAN).

1. Sensors: Talk to the gateway via LoRa (Free, Low Power).
2. LoRaWAN gateway: Aggregates and filters the data.
3. Sat Terminal: Sends the filtered data to the Cloud via Space.

Why this beats Direct-to-Satellite: Direct sensors need a clear view of the sky and high transmit power. A sensor buried inside a ship's hold cannot see the sky. But it can reach a LoRaWAN gateway mounted on the bridge. The gateway handles the heavy lifting of the satellite link.

Not all satellites are equal.

• GEO (Geostationary): High orbit (35,000km). High latency (600ms+). Good for small, bursty data.
• LEO (Low Earth Orbit): Low orbit (500km). Low latency (30ms). Examples: Starlink, OneWeb. For a LoRaWAN gateway managing real-time industrial data, LEO is the game-changer. It offers "fiber-like" speeds, allowing you to not just send sensor data, but remote desktop into the gateway for maintenance.

Satellite data is expensive. You pay per Megabyte. You cannot afford to send every "Keep Alive" heartbeat from 1,000 sensors over satellite.

This is where the intelligence of the LoRaWAN gateway saves your budget.

• Edge Filtering: Using an Embedded LNS or Node-RED on the gateway, you configure logic: "Only send data if Temperature > 50°C."
• Compression: The LoRaWAN gateway can batch 100 readings into a single compressed file before uploading.
• Result: You reduce satellite data usage by 90%, making the business model viable.

Container ships are floating cities.

• The Challenge: Monitoring the temperature of "Reefer" containers deep in the stack while crossing the ocean.
• The Setup: A network of LoRaWAN gateways is installed on the ship (Bow, Stern, Bridge).
• The Data: Sensors inside the containers report to the nearest gateway.
• The Link: The master LoRaWAN gateway connects to the ship's VSAT or Starlink connection to report data to the shipping company HQ.
• The Result: Zero spoilage, total visibility, even in the middle of a storm.

The good news is that you don't need a "Space Gateway." Any standard industrial LoRaWAN gateway with an Ethernet WAN port (like the Robustel R3000 LG) is compatible with satellite terminals.

• Starlink: Plug the Starlink Ethernet adapter into the LoRaWAN gateway WAN port.
• BGAN/Iridium: Connect via Ethernet or RS232 (for low-bandwidth serial modems). The gateway simply sees it as an internet connection. It doesn't care if the IP address comes from Verizon or SpaceX.

The combination of LoRaWAN (for local density) and Satellite (for global reach) is the final piece of the IoT puzzle.

It eliminates the concept of "Remote." With a rugged LoRaWAN gateway and a view of the sky, any asset on the planet can be brought online. Whether you are tracking polar bears in the Arctic or pumps in the Amazon, the sky is no longer the limit—it is the link.
