LoRaWAN Gateway & 5G: The Hybrid Network Architecture

For years, industry analysts framed it as a war: "5G vs. LoRaWAN." This was wrong. They are not competitors; they are the perfect team. This final guide explores the Hybrid Network Architecture. We explain how 5G handles high-bandwidth, low-latency tasks (Video, Robotics), while LoRaWAN handles low-power, long-range sensing. The critical intersection point is the LoRaWAN gateway. By using 5G as the backhaul for the gateway, enterprises can achieve real-time responsiveness and massive sensor density, optimizing both cost and performance for the next decade of IoT.

In the telecommunications world, there has been a persistent myth: "5G will kill LoRaWAN."

The logic was that 5G is so fast and powerful that it will make all other wireless technologies obsolete. This is false. 5G is amazing for streaming 8K video and controlling autonomous drones, but it is terrible for a soil moisture sensor powered by a coin cell battery.

The future is not "One or the Other." The future is Hybrid.

The most advanced industrial and smart city projects today are combining these technologies. At the center of this convergence sits the LoRaWAN gateway.

By using 5G for backhaul and LoRaWAN for the edge, you create a network that is both incredibly fast and incredibly efficient. This is the blueprint for the next generation of IoT.

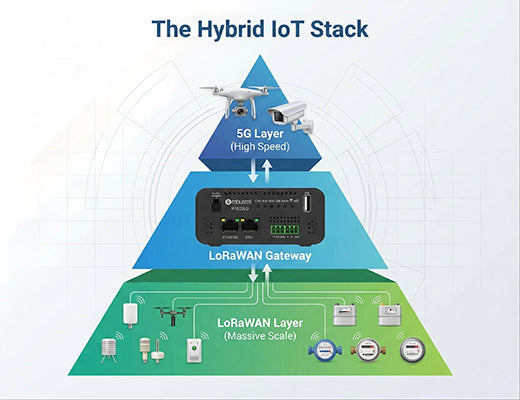

To understand the hybrid model, you must understand the strengths of each player.

Team 5G (The Sprinter):

• Strengths: Ultra-low latency (1ms), massive bandwidth (Gbps).
• Weaknesses: High cost per module, high power consumption, short range (mmWave).
• Role: Backhaul, Video Surveillance, Industrial Robotics.

Team LoRaWAN (The Marathon Runner):

• Strengths: 10-year battery life, massive range (15km), low cost ($5 modules).
• Weaknesses: Very low bandwidth (Bytes), high latency.
• Role: Sensors, Metering, Tracking, Environmental Monitoring.

The LoRaWAN gateway is the bridge. It aggregates the data from thousands of "Marathon Runners" and hands it off to the "Sprinter" (5G) to get it to the cloud instantly.

Historically, LoRaWAN gateways used 4G or Ethernet for backhaul. Upgrading the backhaul to 5G transforms the capabilities of the network.

1. Ultra-Low Latency Control With 4G, there is a lag. With 5G, the latency is negligible.

• Scenario: A LoRaWAN vibration sensor detects a critical fault in a turbine.
• Process: The LoRaWAN gateway receives the alert and shoots it to the cloud via 5G. The cloud algorithm processes it and sends a "Shutdown" command back.
• Result: The entire loop happens in milliseconds, potentially saving the machine from catastrophic failure.

2. Network Slicing 5G allows for "Network Slicing"—creating a dedicated virtual lane for specific traffic. You can configure the LoRaWAN gateway's 5G connection to have a guaranteed Quality of Service (QoS) slice. This ensures that even if the local cell tower is congested with people streaming Netflix, your critical sensor data has a VIP lane to the server.

Cities cannot afford to build separate networks for cameras and sensors. They need shared infrastructure.

The Solution: The Smart Pole.

• Top of Pole: A 5G Small Cell / Camera. It monitors traffic video and provides public Wi-Fi.
• Middle of Pole: An Industrial LoRaWAN gateway (connected to the 5G router via Ethernet).
• Function: The gateway listens to thousands of water meters, parking sensors, and trash bins in the neighborhood.
• Synergy: Both devices share the same power supply and the same fiber/5G backhaul connection.

This drastically reduces the installation cost (CapEx) for the municipality.

At Robustel, we see this convergence daily. Our 5G Industrial Routers (like the R5020) are often deployed alongside our LoRaWAN gateway products.

In some architectures, the 5G router acts as the gateway. By plugging a LoRaWAN card or a USB LoRa concentrator into a powerful 5G router, you create a single box that handles Gigabit video streams and Byte-sized sensor packets simultaneously.

The "5G vs. LoRaWAN" debate is over. The winner is Both.

By deploying a hybrid architecture, you optimize your ROI. You don't waste expensive 5G connections on simple sensors, and you don't choke bandwidth-hungry apps with slow networks.

The LoRaWAN gateway equipped with 5G backhaul is the ultimate infrastructure component. It is the unifying link that allows the massive scale of low-power sensors to feed the high-speed intelligence of the cloud. This is the future of connectivity.
