Robustel IIoT Edge Starter Kit

The complete IIoT hardware and software toolkit for moving from rapid prototype to scalable production.

Overview

An all-in-one hardware and software solution engineered to solve the biggest IIoT challenge: moving from a simple proof-of-concept to a scalable, production-ready deployment.

This kit provides both a "plug-and-play" start and the powerful tools needed to customize, manage, and scale your application with confidence.



Features

● Plug & Play Prototyping

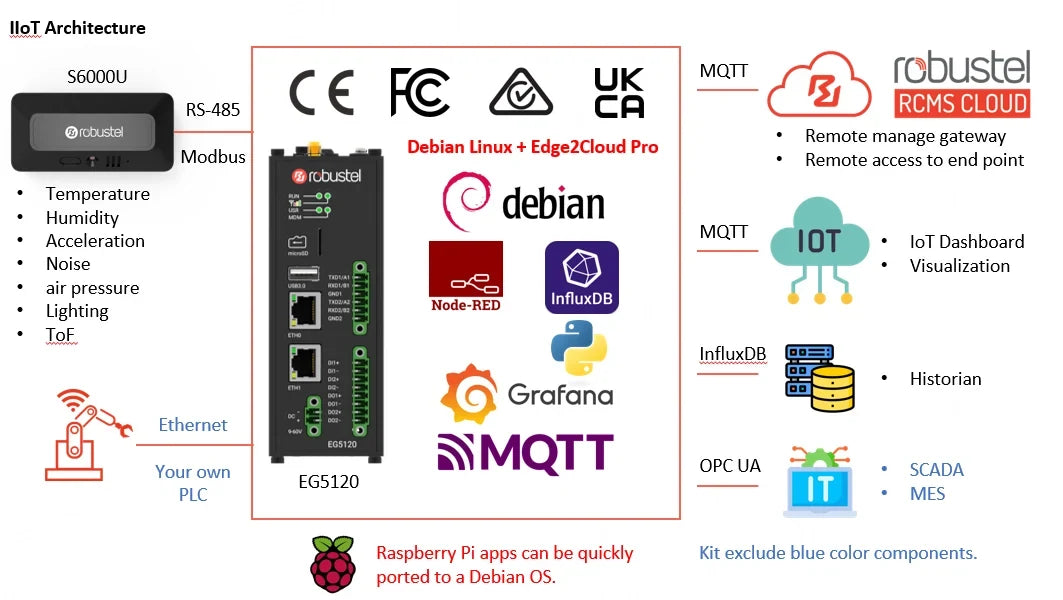

Includes a pre-configured EG5120 gateway and S6000U 7-in-1 sensor. Go from unboxing to visualizing real-time machine or environmental data on dashboard in minutes.

● Powerful Edge & Cloud Synergy

Harness the power of true edge computing. The EG5120 gateway processes data locally with its quad-core CPU, while the RCMS cloud platform provides robust tools for remote device management, fleet-wide OTA updates, and secure access to your hardware from anywhere in the world.

● Flexible & Secure Development Platform

Leverage the pre-installed software stack—including Node-RED, MQTT, InfluxDB, and Grafana—for low-code development, or deploy any custom application using Docker. This all runs on RobustOS Pro (Debian 11), a secure platform certified to IEC 62443-4-1, ensuring system resilience with Automatic System Failback and backed by a 10-year Linux LTS.

● Simplified Cloud Management:

Integrates fully with the RCMS cloud platform for fleet-wide monitoring, OTA updates of both the OS and applications running in containers, and secure remote access to end devices like PLCs, dramatically reducing operational costs.

● Production-Ready Components

The hardware in this kit is not a trial version. The EG5120 Gateway and S6000U Sensor are fully certified, industrial-grade products, allowing you to scale your successful prototype directly to mass deployment without changing your core hardware.



Example Use Cases

● Predictive Maintenance:

Connect the S6000U to a machine to monitor its vibration, temperature, and noise levels.Use Node-RED on the EG5120 to process this data locally, detect anomalies, and trigger alerts in RCMS before a failure occurs.

● Smart Environment Monitoring:

Deploy the kit in a data center, warehouse, or agricultural setting. Track the full suite of environmental data from the S6000U and visualize historical trends in Grafana to optimize energy consumption and ensure safety compliance.

● Custom Application Development:

Go beyond the included software. Package your own Python script or machine learning model in a Docker container and deploy it to the EG5120 to create a completely custom industrial solution.



What's Included in the Kit?

Hardware

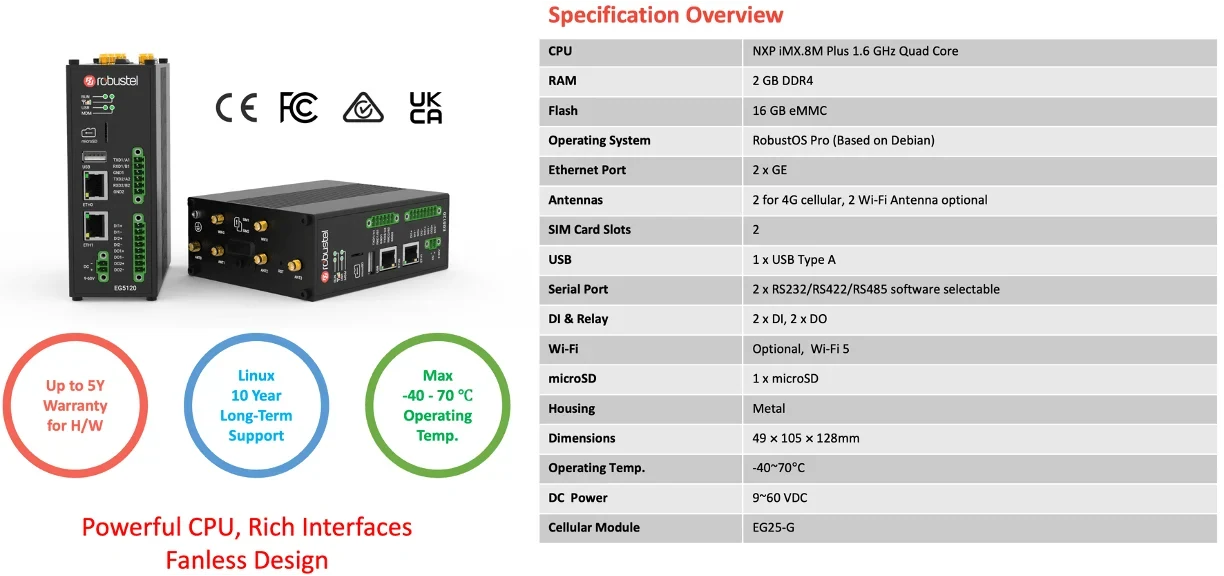

● 1 x EG5120 Industrial IoT Edge Gateway

● Spec: Quad-Core 1.6 GHz ARM CPU, 2 GB RAM, 16 GB eMMC, Global 4G LTE, Wi-Fi, BLE, 2x Gigabit Ethernet, 2x RS232/RS485.

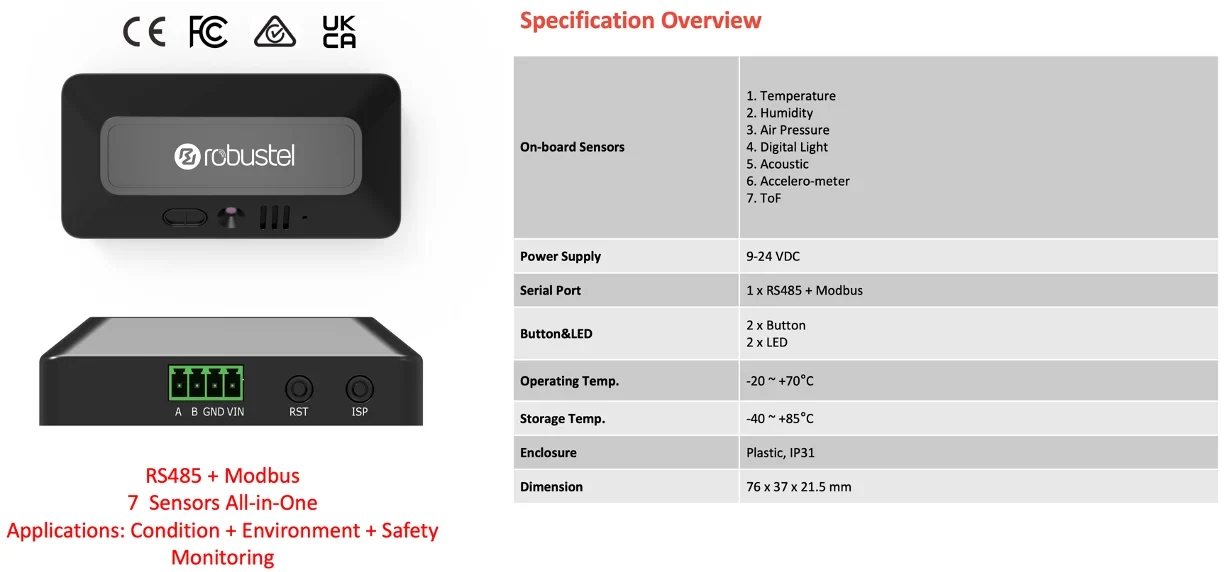

● 1 x S6000U Industrial Smart Sensor

● Spec: 7-in-1 sensing (Temperature, Humidity, Vibration, Noise, Pressure, Light, ToF Distance) with RS-485 Modbus RTU interface.

● Accessories

● Power Supplies for gateway and sensor, Cellular & Wi-Fi Antennas, Cables, and DIN-Rail mounting kit.

Software

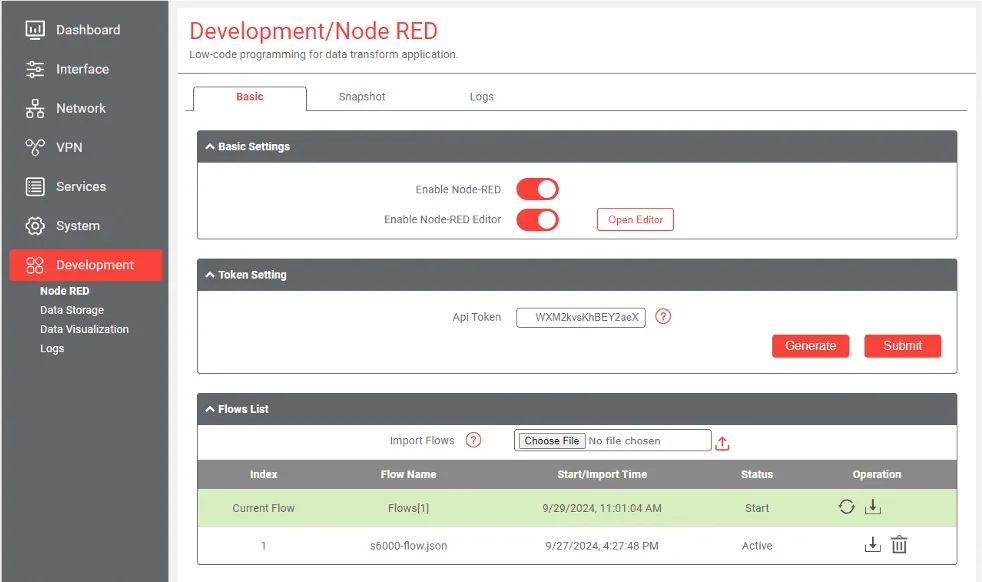

● Edge2Cloud Pro Software Package (Pre-installed on EG5120)

● Node-RED: For low-code, flow-based programming.

● InfluxDB: A high-performance time-series database for data storage.

● Grafana: For creating rich, real-time data visualizations and dashboards.

● MQTT: The standard for lightweight IoT device communication.



Services

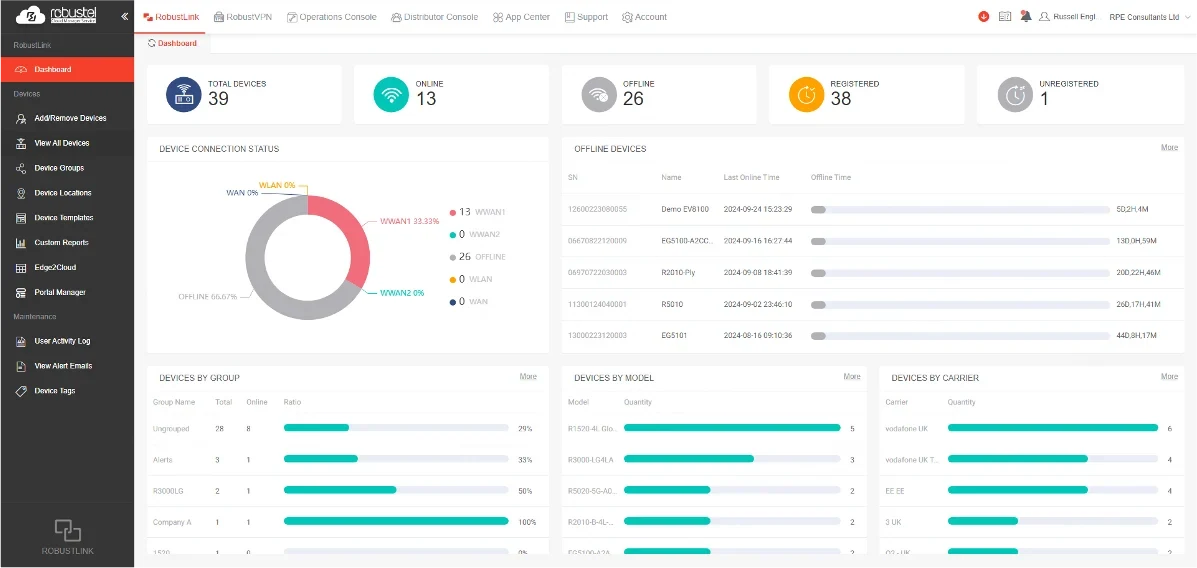

● Robustel RCMS Cloud Account

● Includes a full-featured, 12-month trial for remote management of the gateway, OTA updates, and secure remote access to endpoints.
