IoT Gateway vs. Router: What's the Real Difference You Need to Know?

It's the most common confusion in IIoT, so let's be clear: an IoT Gateway is not just a router. A router is a simple "traffic cop" for data. An IoT Gateway is a "master translator" and "local brain" built for the factory floor. This article breaks down the critical differences between an IoT Gateway vs router, explaining why using the wrong one is a costly mistake for any industrial project.

In the world of industrial connectivity, the terms "router" and "gateway" are often used interchangeably. This is a simple mistake, and honestly, a dangerous and expensive one. I've seen promising IoT projects fail—data doesn't flow, PLCs won't connect, security holes are left wide open—all because the team bought a simple router when they desperately needed a true IoT Gateway.

Let's settle the IoT Gateway vs router debate for good, so you can make the right choice.

A router has one main job: route data packets (like mail) between different networks.

Think of it as a mail sorter at the post office. It doesn't open your mail. It doesn't read or understand the letter inside. It only looks at the "To" and "From" addresses on the envelope (the IP header). Its entire decision-making process is: "Ah, this packet is for the 'Cloud' network. I will send it out the 'WAN' door."

• Operates at: Network Layer 3.
• Understands: IP addresses.
• Cannot Understand: The content of the data packet, such as Modbus, S7, or OPC UA data.

For giving office PCs internet access or connecting a simple network, a router is the perfect tool. For connecting a factory, it's dangerously insufficient.

An IoT Gateway is a far more intelligent and complex device. It's a purpose-built industrial computer designed to be the bridge between the messy factory floor (OT world) and the clean data center (IT world).

A true IoT Gateway does everything a router does, plus two critical jobs a router can't even dream of.

First, yes, an IoT Gateway includes all the functions of a high-performance industrial router. It manages cellular (4G/5G) or wired WAN connections, provides Wi-Fi, assigns IP addresses (DHCP), and has a robust firewall. This is its "traffic cop" duty.

This is the most important difference. Your PLC speaks Modbus. Your CNC speaks FOCAS. Your power meter speaks DNP3. Your cloud platform speaks MQTT.

A router looks at this traffic and sees gibberish.

An IoT Gateway is a master translator.

• "Southbound": It connects down to your industrial assets via physical ports (like RS485, RS232, CAN) and "speaks" their native protocols (Modbus, S7, EtherNet/IP, etc.).
• "Northbound": It translates that data into a single, standardized IT protocol (like MQTT, OPC UA, or HTTP/S) and sends it up to the cloud.

This protocol conversion is the core, non-negotiable function of an IoT Gateway.

This is what makes a modern IoT Gateway so powerful. Instead of blindly sending 1,000 sensor readings per second to the cloud (which is slow and expensive), it processes data locally.

• Edge Computing: It can filter data (e.g., "only send if the value changes"), aggregate it ("send the 1-minute average"), or trigger instant alarms ("if temperature > 100C, send alert NOW").
• Open Platform: Advanced gateways, like the Robustel EG5120, run an open OS (like Debian Linux) and support Docker. This lets you run custom Python scripts, AI models, or Node-RED flows right on the IoT Gateway itself. Your router can't do that.

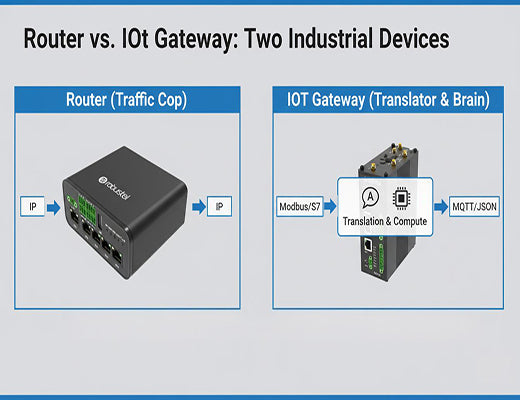

Here's the one-minute "insider" explanation for your IT team in the IoT Gateway vs router debate:

• A Router is a Layer 3 device. It only processes Network headers (IP addresses).
• An IoT Gateway is a Layer 7 device. It processes Application data (the actual content).

Here’s the practical difference:

A Router sees: "This packet from 192.168.1.50 is going to an AWS IP address. My job is to forward it."

An IoT Gateway sees: "I am polling Modbus Unit 1, register 40100, from 192.168.1.50 (a PLC). The value is 1500. This data represents 'Motor Speed'. I will divide it by 10, tag it as JSON, and publish it to the 'factory/motor/speed' MQTT topic."

See the difference? One is a mail carrier; the other is a translation service, data analyst, and security guard rolled into one.

"But can't I just connect a $50 router to a Raspberry Pi with a $10 USB-to-RS485 adapter and build my own IoT Gateway?"

You can, in the same way you can build your own car out of junkyard parts. It's a fascinating (and frustrating) science project, but would you trust it to run your multi-million dollar production line?

That DIY IoT Gateway is just a bad, unreliable, insecure, and non-certified version of what a professional industrial IoT gateway provides out of the box. A professional gateway is built with:

• eMMC Storage (not a fragile SD card)
• Wide-Temp Components (-40°C to 75°C)
• Isolated I/O Ports (protects from electrical noise)
• Security Certifications (like IEC 62443)
• Central Management (like RCMS) to handle thousands of devices

When you factor in your engineering time, debugging, and the staggering cost of downtime when your DIY IoT Gateway fails, the professional IoT Gateway is infinitely cheaper.

The IoT Gateway vs router confusion ends here.

• If you need to give your office laptops or simple IP cameras an internet connection, buy a router.
• If you need to connect a PLC, CNC, sensor, or any industrial machine to the cloud... if you need to translate Modbus... if you need to run logic at the edge... you must use an IoT Gateway.

A router connects networks. An IoT Gateway connects operations. Don't make the costly mistake of confusing the two.
