The Ultimate Guide to the Edge Router: Role, Features & Selection in 2025

An edge router is a network device that sits at the "edge" of a local area network (LAN) and connects it to a wide area network (WAN), like the internet. Its primary job is to be the single, secure "on-ramp" and "off-ramp" for all your network traffic. Unlike a core router (which directs traffic within a large network), an industrial edge router is a specialized device focused on connectivity, robust security (Firewall/VPN), and, increasingly, on-device intelligence (edge computing). This guide explains its critical functions and how to select the right edge router for your needs.

The term "edge" is one of the most overused buzzwords in technology. You’ve heard of "edge computing," "the intelligent edge," and, of course, the edge router. It all sounds complex, but the concept is actually very simple and incredibly important.

An edge router is not some mysterious new invention. It’s the evolution of the most critical device on your network: the front door.

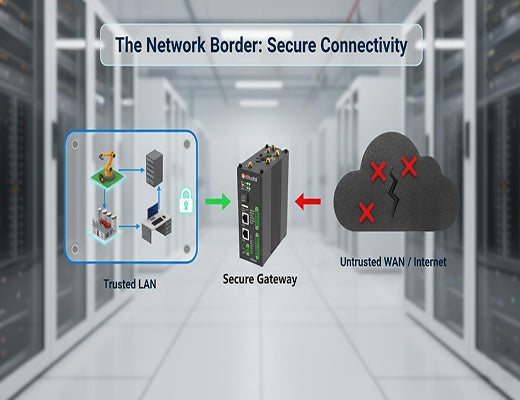

Think of your office, factory, or retail store network as a secure, trusted building (your LAN). You trust the people and devices inside. The internet (the WAN) is the chaotic, untrusted world outside. The edge router is the single, reinforced, intelligent security checkpoint that serves as the only way in or out. Understanding its role is the first step to building a secure and reliable network.

An edge router is a specialized router that sits at the "edge" of a network, also known as the network boundary or perimeter.

Its primary function is to connect your internal Local Area Network (LAN)—or multiple LANs—to an external Wide Area Network (WAN), which is most commonly the public internet or a private corporate backbone.

This position makes it the single point of entry and exit for all your data. Because it's on the front line, an edge router's job is fundamentally different from a "core" or "distribution" router. Its design is less about raw internal speed and more about security, translation, and reliability. This is the most critical device for your network's safety and performance.

This is a common point of confusion.

• A Core Router is a high-speed, high-capacity router used by service providers (like AT&T or Comcast) or massive enterprises. It's the "interstate highway system," designed to pass enormous volumes of traffic between other routers at maximum speed. It assumes its traffic is already "clean."
• An Edge Router is the "on-ramp" to that highway. Its job is to inspect the "vehicles" (data packets), make sure they are safe (firewall), put them in a secure "armored truck" (VPN), and then send them to the highway.

You need an edge router at your branch office, factory, or retail store. Your ISP needs a core router in its data center. A modern industrial edge router is a specialist in security and connectivity for your network edge.

A consumer router just gives you Wi-Fi. A true industrial edge router is a multi-function powerhouse. It must perform four critical jobs 24/7.

This is the edge router's most basic job: providing the WAN connection. In an industrial or commercial setting, you can't rely on a single, cheap cable.

• Failover: A professional edge router will have multiple WAN ports. It can use a wired Fiber/Ethernet line as its primary connection and a 4G/5G cellular modem as an automatic backup. If the cable is cut, the cellular edge router takes over in seconds, ensuring your business stays online.
• Cellular-Primary: For remote sites (ATMs, kiosks, pump stations), a cellular edge router is the primary connection, providing high-speed 5G or 4G LTE connectivity where no wires exist.

This is the most critical function of an edge router. It is your first and last line of defense.

• Firewall: A stateful firewall is non-negotiable. It inspects incoming traffic, blocks malicious requests, and prevents hackers from scanning your internal network.
• VPN (Virtual Private Network): You can't send sensitive corporate or industrial data "in the clear" over the public internet. A VPN-capable edge router builds a secure, encrypted "tunnel" from your site back to your headquarters or cloud. This edge router ensures all your data is unreadable to attackers.

This is the evolution that makes an edge router "smart." Instead of just forwarding all data, a modern edge router can process it.

• Why? To reduce data costs, lower latency, and enable real-time action.
• How? A high-performance edge router (which we often call an edge computing gateway) runs an open OS like Debian Linux and supports Docker. This allows you to run custom applications (like Python scripts or Node-RED) on the router itself.
• Example: Your edge router can read data from a local PLC, decide "this is a critical alarm," and send an immediate alert, all without waiting for a round-trip to the cloud. This makes an edge router a powerful tool for OT/IT integration.

An edge routerer is not a "set it and forget it" device, especially when you have 1,000 of them.

• The Problem: How do you update security patches, change VPN passwords, or reboot a frozen edge router at a remote site without an expensive "truck roll"?
• The Solution: A cloud-based management platform. A professional edge router must be manageable from a central platform like Add One Product: RCMS . This allows IT to manage an entire global fleet of edge router devices from a single web browser, performing bulk OTA updates, diagnosing issues, and ensuring security compliance.

This is a key question, and the answer is subtle: An IoT Gateway is a highly specialized type of edge router.

Think of it this way:

• An edge router connects a network (LAN) to the WAN. It deals with IP packets.
• An IoT Gateway connects things (PLCs, sensors) to the WAN. It deals with industrial protocols (Modbus, S7, etc.).

A standard edge router might not have an RS485 port or know what Modbus is. An IoT Gateway must have these to do its job of protocol translation. Therefore, a device like our EG5120 is both: it's a powerful edge router (handling 5G, VPN, Firewall) that also has the hardware and software to be a world-class IoT Gateway (handling Modbus, S7, etc.). Your choice of edge router depends on whether you need to translate industrial protocols.

When buying your next edge router, look beyond the price tag. Ask these questions:

1. Connectivity: Does it have the WAN options I need? Is the cellular 4G/5G modem reliable and certified by carriers? Does it have Dual-SIM for failover?
2. Security: Is it just a firewall, or does the vendor have a real security-first mindset? (e.g., IEC 62443 certification, regular security patches).
3. Performance: Does it have enough processing power to handle my full VPN throughput and firewall rules without slowing down?
4. Hardware: Is it a cheap plastic box, or a rugged, industrial edge router built for factory temperatures and vibration?
5. Software: Is it a "black box," or an open platform (like Debian/Docker) that I can build on?
6. Management: Is it a standalone device, or part of a scalable remote management platform (like RCMS)?

The edge router is far more than a simple box that gives you internet. It's your network's primary line of defense, your connection to the outside world, and the platform for your next wave of innovation.

Whether you need a simple, secure 4G failover edge router for a retail store or a powerful edge computing gateway that can run AI models for your factory, the principles are the same: prioritize security, reliability, and manageability. Your edge router is the most important device on your network; choose it wisely.
