Case Study: Connecting Solar & BESS with an IoT Gateway for Energy Monitoring

This case study demonstrates the critical role of an industrial IoT gateway in solar monitoring and BESS monitoring. A commercial solar asset owner was "flying blind," unable to get reliable renewable energy data due to flaky consumer-grade Wi-Fi dongles. By deploying a Robustel cellular IoT Gateway, they bypassed unreliable local networks and created an "always-on" data stream. This single IoT Gateway translated both Modbus (from inverters) and CAN (from the BESS), enabling 99.9% uptime, predictive maintenance, and massive TCO savings from eliminated service calls.

You just spent $200,000 on a state-of-the-art solar and BESS (Battery Energy Storage System) installation for your commercial building. It's supposed to save you 40% on your energy bills by intelligently storing solar power and discharging it during peak demand.

There's just one problem: how do you know if it's working?

You log into the inverter's app, and it says "Last Synced: 3 Days Ago." The BESS is a "black box" with no user-facing data. You're "data blind." You have no idea if your asset is performing, if a panel is dirty, if an inverter is offline, or if you're actually saving money.

This is the hidden crisis of the renewable energy boom. The hardware is powerful, but the connectivity is an afterthought. This is the story of how a professional industrial IoT gateway solves this problem.

We worked with a commercial asset management group that owns 30 medium-scale solar+storage sites. Their problem was simple:

• Unreliable Connectivity: They relied on the solar inverters' built-in Wi-Fi "dongles" piggybacking on the site owner's guest network. It was a disaster. Wi-Fi passwords changed, routers were rebooted, and signals were weak. Their data was offline more than 30% of the time.
• No BESS Data: The BESS monitoring system (BMS) didn't have Wi-Fi. It had a CAN bus port, but no one knew how to connect it to the cloud.
• Massive Service Costs: When an inverter went offline, they had to send a technician on a 4-hour round trip—a "$1,000 truck roll"—just to discover the Wi-Fi password had changed. They were losing a fortune on simple, avoidable service calls.

They needed an "always-on," unified data solution. They needed a real IoT Gateway.

The solution was to deploy a single Robustel Add One Product: EG5100 industrial IoT gateway at each site. This single device was not just a modem; it was a rugged, multi-lingual industrial computer.

This IoT Gateway was designed to solve all three problems at once.

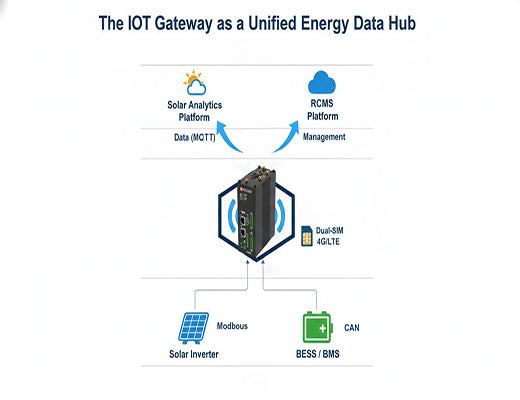

This is the "translator" function that no simple router can perform.

• Solar Inverter Monitoring: The IoT Gateway connects to the entire string of solar inverters via RS485 and speaks their language: Modbus. It acts as the Modbus Master, polling all 20 inverters for critical data: PV_Voltage, Current_Power, Lifetime_Yield, Alarm_Codes, etc.
• BESS Monitoring: The same IoT Gateway uses its CAN bus port to connect directly to the Battery Management System (BMS). It polls the BMS for State_of_Charge (SoC), Battery_Temp, Charge/Discharge_Rate, etc.

This IoT Gateway instantly breaks down the data silos. It's the one device on-site that can talk to all the energy hardware, regardless of brand.

This is the "reliability" function. The IoT Gateway bypasses the site's unreliable Wi-Fi completely.

• Dual-SIM Failover: Each IoT Gateway was equipped with two 4G LTE SIM cards from different carriers. If Carrier A's network dropped, the IoT Gateway instantly and automatically fails over to Carrier B.
• MQTT Efficiency: The IoT Gateway then translates all the Modbus and CAN data into a single, efficient MQTT data stream for the cloud.

This cellular-first approach provided 99.9%+ connectivity uptime, moving them from 30% data loss to near-perfect data collection. This is the power of a true cellular IoT gateway.

This is the "money-saving" function. The entire fleet of IoT Gateway devices was managed from a single dashboard using Add One Product: RCMS (Robustel Cloud Manager Service).

• The Scenario: An inverter's Modbus port "freezes" and stops responding to the IoT Gateway.
• The Old Way: Send a truck ($1,000).
• The RCMS Way: The operator logs into RCMS, finds the IoT Gateway at that site, and uses a connected relay (controlled by the gateway's Digital Output) to remotely reboot the inverter's power.
• The Result: The inverter reboots and comes back online. The problem is solved in 2 minutes from an office 500 miles away.

By deploying a professional IoT Gateway solution, the asset manager transformed their operations.

• 90% Reduction in Service "Truck Rolls": Remote diagnostics and reboots via the IoT Gateway and RCMS eliminated the vast majority of physical site visits.
• 99.9%+ Data Uptime: They finally had the reliable, 24/7 renewable energy data stream they needed to prove ROI to their clients.
• Predictive Maintenance: By analyzing the continuous data from the IoT Gateway, they could spot a failing solar panel (power dropping) before it failed completely, allowing them to dispatch service proactively.

Solar panels and batteries are just hardware. The data is the value.

A cheap, unreliable Wi-Fi dongle on a mission-critical, six-figure energy asset is a business-killing mistake. A professional industrial iot gateway is the only way to guarantee the reliability, security, and multi-protocol flexibility needed for serious solar monitoring and BESS monitoring.

This case study proves that the IoT Gateway isn't just an add-on; it's the central hub that ensures your renewable energy investment is actually working.
