What is a Cellular IoT Gateway? Why 4G/5G Is Critical for Industrial Data

A cellular IoT gateway is a specialized IoT Gateway that uses 4G LTE or 5G technology to connect industrial devices (like PLCs, sensors, and meters) to the internet. Unlike wired gateways, it provides unparalleled deployment flexibility, high reliability (with features like dual-SIM failover), and enhanced network isolation. This article explains what a cellular IoT gateway does, why it's a critical enabler for remote and mobile applications, and how to choose between a 4G IoT gateway and a 5G IoT gateway.

You need to get data from a PLC at a remote pump station. You need to track a fleet of delivery vehicles in real-time. You need to monitor a temporary construction site. What do all these scenarios have in common? Running an Ethernet cable is impossible, and relying on-site Wi-Fi is a non-starter.

This is the exact problem the cellular IoT gateway was born to solve.

In our previous articles, we've established what an IoT Gateway is (a "translator" for machine data) and how it's different from a simple router. Now, let's add the most powerful component: cellular connectivity. A cellular IoT gateway is, quite simply, freedom. It’s the key that unlocks industrial data from anywhere.

As a reminder, any industrial IoT Gateway (wired or cellular) has two main jobs:

1. Translate (Protocol Conversion): It speaks the factory languages (OT) like Modbus, S7, or serial to communicate with PLCs and sensors.
2. Standardize (Data Forwarding): It converts that data into IT-friendly languages (like MQTT/JSON) and sends it to the cloud.

The big question has always been how it sends that data to the cloud. For decades, this "Northbound" connection was assumed to be a wired Ethernet cable plugged into the factory's IT network. A cellular IoT gateway shatters that assumption.

A cellular IoT gateway is an industrial IoT gateway that has a cellular modem and SIM card slot built-in. This allows it to use the 4G LTE or 5G mobile network as its primary (or backup) connection to the internet (the WAN link).

It’s a fully self-contained connectivity hub. It doesn't need to plug into anything except your machine (via RS485/Ethernet) and a power source. This simple difference—the "cutting of the cord"—has three profound implications for industrial data.

This is the most obvious win. A cellular IoT gateway gives you deployment freedom.

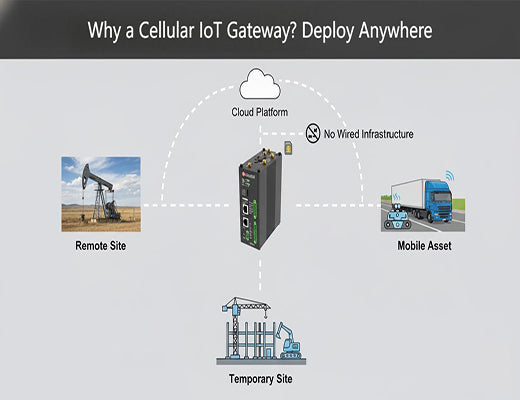

• Remote Assets: Perfect for oil & gas wellheads, agricultural water pumps, solar farms, or environmental monitoring stations.
• Mobile Assets: The only choice for connecting vehicle fleets, public transit (for Passenger Wi-Fi or Telematics), or mobile assets like AGVs.
• Temporary Sites: Ideal for construction sites or pop-up retail, where running a wired internet line for a 6-month project is a non-starter.
• Factory Agility: Even inside a factory, a cellular IoT gateway lets you add monitoring to a machine without pulling new cable, saving time and money. You are no longer dependent on the IT department's network drops or the spotty factory guest Wi-Fi.

Here’s the insider secret: a professional cellular IoT gateway is often more reliable than a single wired internet connection.

• Wired is a Single Point of Failure: That one Ethernet cable from your ISP can be cut by a construction crew, or the local provider can have an outage, bringing your entire data flow to a halt.
• Cellular Failover: A professional cellular IoT gateway (like most Robustel models) comes with Dual-SIM card slots. You can install SIMs from two different carriers (e.g., AT&T and T-Mobile). If Carrier 1's network goes down, the IoT Gateway automatically and instantly fails over to Carrier 2. This is a powerful, low-cost form of redundancy that wired connections can't easily match.

Furthermore, many IoT Gateway devices can use a wired connection as primary and 4G/5G as a backup, giving you the best of both worlds.

This sounds counter-intuitive, but a cellular IoT gateway can be more secure than a wired one.

• The "Dirty Network" Problem: When you plug a standard IoT Gateway into the factory's corporate LAN, you've just connected your sensitive, unpatched PLC to the same network as the marketing department's PCs. A malware infection on a laptop could potentially "jump" to the OT network.
• The Cellular "Air-Gap": A cellular IoT gateway creates its own independent network. It's a private, direct-to-cloud "VIP lane" for your machine data. It bypasses the chaotic internal LAN completely. When combined with a secure VPN and a cloud platform like RCMS , you create a securely isolated bubble for your machine, making it invisible to most internal and external network threats.

• What it is: This IoT Gateway uses 4G LTE technology (like Cat 4, Cat 1, or LTE-M/NB-IoT).
• Best For: 90% of today's industrial data applications. This includes polling Modbus data, sending MQTT packets, basic remote monitoring, and enabling PLC remote access.
• Why: 4G LTE is mature, cost-effective, and available almost everywhere. The bandwidth is more than enough for typical sensor and PLC data. A 4G IoT gateway like the R1520 Global or the EG5100 provides the perfect balance of price, performance, and global reliability.

• What it is: This IoT Gateway uses a 5G modem for significantly higher speeds and lower latency.
• Best For:Specialized, high-performance applications.
  • High-Bandwidth: Streaming multiple HD/4K video feeds from security or quality-control cameras.
  • Ultra-Low Latency: Real-time control of mobile robots (AGVs), remote surgery support, or critical vehicle-to-vehicle (V2X) communication.
• Why: When you need speed in gigabits or latency in single-digit milliseconds, only a 5G IoT gateway like the Add One Product: R5020 Lite will do. It is a future-proof investment for data-intensive or time-critical tasks.

So, what is a cellular IoT gateway? It's freedom, reliability, and security rolled into one. It’s an industrial IoT gateway that leverages 4G and 5G networks to break free from the constraints of physical cables.

For the vast majority of industrial data tasks, a 4G IoT gateway provides a robust and cost-effective solution. For the next generation of high-speed, low-latency applications, a 5G IoT gateway opens the door. In the modern industrial world, where assets are remote, mobile, or just plain hard to reach, a cellular IoT gateway isn't just an option—it's the new standard.
