From Sensors to Digital Twins: Real-time Level Monitoring and Hardware Innovation for Equipment Data Visualization

In my experience, a key step in digitizing industrial operations is gaining real-time visibility into inventory and assets. Simple questions like "How full is that water tank?" or "How much grain is left in this silo?" are fundamental to efficiency. Answering them accurately and in real-time prevents stockouts, optimizes supply chains, and automates processes.

The challenge, however, has always been the integration. You might find the perfect ultrasonic level sensor for your chemical tank, but how do you get its data onto a dashboard? This usually involves a painful process of sourcing a compatible gateway, writing custom scripts to parse its data, and then struggling to set up a separate database and visualization tool.

We believe you shouldn't have to be a software developer to solve a hardware problem. What if you had a single, powerful piece of hardware that was designed to seamlessly connect to and visualize data from virtually any industrial sensor you choose? This is the core philosophy behind our EG5120 edge gateway with the Edge2Cloud Pro software platform.

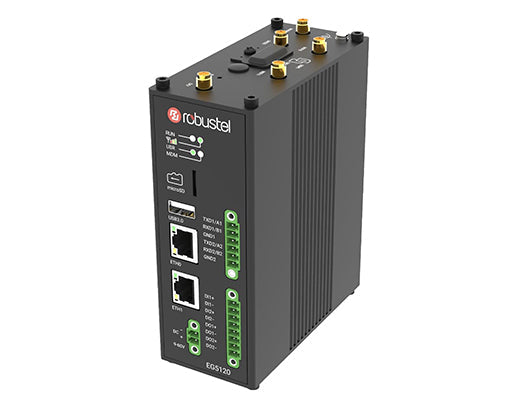

Instead of offering a rigid, one-size-fits-all kit, we provide the intelligent core that allows you to build your own perfect solution for real-time level monitoring. The star of the show is the Robustel EG5120, a high-performance edge computing gateway designed for exactly this kind of task.

1. The Brain (Robustel EG5120 Gateway): This is your all-in-one data processing and visualization hub. It’s an industrial-grade device with a powerful quad-core ARM CPU, a wide range of connectivity options including Ethernet and cellular, and crucial industrial interfaces like RS232/RS485. Most importantly, it comes with our Edge2Cloud Pro software stack pre-installed.
2. The Senses (Your Choice of Sensor): This is where the flexibility comes in. Because the EG5120 and Edge2Cloud Pro are built on open standards, you can choose the best sensor for your specific job. This includes a huge range of third-party:

• Ultrasonic Level Sensors: Perfect for measuring the level of liquids in tanks.
• Time-of-Flight (ToF) Distance Sensors: Excellent for monitoring solid materials like grains, pellets, or the diameter of material rolls.
• Any sensor that communicates over a standard RS485 interface using the Modbus RTU protocol.

The EG5120 isn't just a hardware box; it's an entire software platform. The onboard Edge2Cloud Pro tools simplify the integration process dramatically.

1. Connect the Sensor: Physically wire your chosen Modbus sensor to the EG5120's RS485 serial port.
2. Acquire Data (Edge2Cloud Pro & Node-RED): This is the easy part. Use the pre-installed, web-based Node-RED interface, which includes pre-built Modbus nodes. You simply configure the node with your sensor’s Modbus ID and the register address for the distance reading (found in the sensor's manual). No custom coding is needed.
3. Process & Store (InfluxDB): The Node-RED flow reads the data and can easily transform it (e.g., convert raw distance to a percentage). It then sends this clean data to the onboard InfluxDB time-series database for efficient storage.
4. Visualize (Grafana): The pre-installed Grafana dashboarding tool is already configured to read from InfluxDB. Just create a new panel, select your data, and choose a visualization—like a gauge, a chart, or a simple number. You now have a live dashboard for your real-time level monitoring system, running entirely on the gateway.

This flexible solution can be adapted to countless industrial and commercial use cases.

• Bulk Inventory Management: Pair the EG5120 with a long-range ultrasonic sensor to monitor the level of liquid chemicals, water, or fuel in large storage tanks. The Grafana dashboard provides immediate inventory visibility, triggering alerts for reordering when levels run low.
• Smart Agriculture: Use a ToF sensor to monitor the fill level of grain silos or feed hoppers. This allows for automated replenishment schedules, ensuring livestock are never without feed and harvests are managed efficiently.
• Water & Wastewater Management: Deploy the solution with an ultrasonic level sensor at remote pumping stations, reservoirs, or wastewater treatment tanks. This enables real-time level monitoring to prevent overflows, manage pump operations, and optimize water distribution networks.
• Manufacturing Process Control: In printing or textile factories, use a ToF sensor to precisely measure the decreasing diameter of a material roll. This allows for an accurate, real-time calculation of remaining material, helping to schedule changeovers with minimal downtime.
