IoT Gateway vs. PLC: Can an Industrial IoT Gateway Replace Your Controller?

Let's get this out of the way immediately. IoT Gateway vs PLC: Can an IoT Gateway replace your Programmable Logic Controller (PLC)? The answer is a clear and resounding No. They are two fundamentally different tools built for two completely different jobs. A PLC provides high-speed, deterministic control. An IoT Gateway provides intelligent data handling and connectivity. This guide explains the critical differences and, more importantly, how they work together to create a truly smart factory.

Spoiler alert: no.

Thinking of swapping your heavy-duty PLC for a shiny new IoT Gateway? That's like trying to replace your car's engine with a very smart, cloud-connected GPS. The GPS is brilliant at telling you where to go, but it can't turn the crankshaft.

This is the single most important distinction to understand in modern industrial automation. In the IoT Gateway vs PLC debate, there is no "vs." — there is only "and." One provides control, the other provides connectivity and data. Confusing them is the fastest way to build a system that is both unreliable and unsafe.

A PLC (Programmable Logic Controller) has one job, and it does it with paranoid reliability: real-time, deterministic control.

It's the "lizard brain" of your machine. It runs on a rock-solid Real-Time Operating System (RTOS). Its entire life is a "scan cycle" that it executes over and over, thousands of times per second, with microsecond precision:

1. Read Inputs (Is the sensor on?)
2. Execute Logic (If sensor is on, turn on motor)
3. Write Outputs (Turn on motor)
4. Repeat.

This cycle is deterministic, meaning it is guaranteed to happen in a precise amount of time. If that PLC doesn't turn off a valve at the exact millisecond it's supposed to, a tank could overflow or a press could be destroyed. You trust a PLC with the safety of your people and the integrity of your multi-million dollar machinery. Its I/O is hardened, its OS is simple, and it is built not to fail.

An IoT Gateway is the "cerebral cortex." It's the high-level thinker and communicator that sits on top of the PLC. Its job is data handling and connectivity.

As we covered in our IoT Gateway vs Router article, a true IoT Gateway (or Edge Computing Gateway) is a sophisticated industrial computer. Its job is to:

1. Talk to the PLC: It connects to the PLC (via Ethernet, RS485, etc.) and "speaks" its language (like Modbus, Siemens S7, or EtherNet/IP).
2. Collect Data: It politely asks the PLC, "What is your current speed? What is your temperature? How many cycles have you run?"
3. Translate & Standardize: It translates this raw data into a clean, IT-friendly format like JSON/MQTT.
4. Send to Cloud: It securely sends this data to your SCADA, MES, or cloud platform.

This industrial IoT gateway is a specialist in communication, not control. A powerful IoT Gateway like the Robustel EG5120 runs an open OS like Debian Linux—it's incredibly flexible, great for running Docker apps or AI models, but it is non-deterministic.

This is the core of the IoT Gateway vs PLC argument. The difference isn't just preference; it's physics and computer science.

A PLC must execute STOP_MOTOR in 5 milliseconds, every time. An IoT Gateway running Linux might be busy with a background process, handling a network request, or clearing memory. It might execute that command in 5ms, or it might take 150ms. For machine control, "might" is a four-letter word that leads to crashes. You cannot risk your machine's safety on a non-deterministic OS.

• PLC I/O: Hardened, high-speed, often safety-rated (SIL 3). Built to drive 24V industrial solenoids and read high-speed encoder signals directly.
• IoT Gateway I/O: An IoT Gatewaymay have simple DI/DO ports. These are for basic data tasks (e.g., "Is the cabinet door open?" or "Turn on this warning light"). They are not designed for high-speed, high-power, or safety-critical machine control.

• PLC: Runs a simple, bulletproof RTOS. It's designed to run one program and do it flawlessly for 20 years.
• IoT Gateway: Runs a complex, multi-tasking OS like Linux. It's powerful and flexible but has millions more lines of code and potential failure points. You can afford to reboot an IoT Gateway if its cloud connection fails. You cannot afford to reboot a PLC while it's controlling a 10-ton hydraulic press.

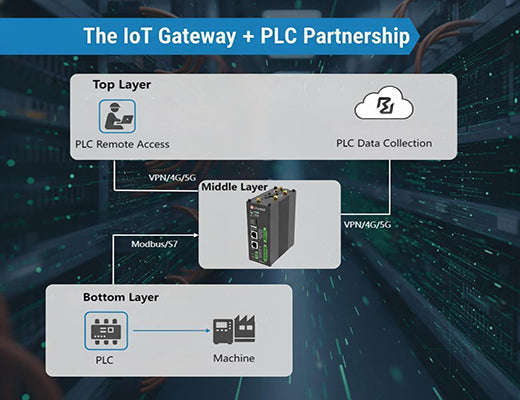

Stop thinking IoT Gateway vs PLC. Start thinking IoT Gateway + PLC. The IoT Gateway is the best partner your "dumb" (but reliable) PLC ever had. It unlocks all the high-value Industry 4.0 applications that a PLC alone can't handle.

This "Smart Pair" works together perfectly:

• PLC Data Collection: The IoT Gateway securely polls the PLC's registers via Modbus, S7, or other protocols to get real-time operational data without interfering with the control loop.
• PLC Remote Access & Programming: This is the killer application. An IoT Gateway with a platform like Add One Product: RCMS creates a secure VPN tunnel to the gateway. This allows an engineer on the other side of the world to "pass through" the gateway and directly connect to the PLC's programming port (e.g., in TIA Portal or Studio 5000) for troubleshooting, logic updates, and debugging. This saves thousands in travel costs.
• Local Dashboard & OEE: An Edge Computing Gateway (a powerful IoT Gateway) can run software to calculate OEE (Overall Equipment Effectiveness) locally, pulling cycle counts and status codes from the PLC and displaying them on a local HMI.
• Cloud Analytics: The IoT Gateway sends all this rich PLC data to the cloud, enabling you to perform predictive maintenance analysis and compare the performance of 20 machines across 3 different continents.

The IoT Gateway vs PLC debate is simple to resolve: they are not in competition.

• Your PLC is your non-negotiable, real-time controller. It's the engine.
• Your IoT Gateway is your non-negotiable data and connectivity hub. It's the dashboard, the GPS, and the connection back to the dealership for diagnostics.

You need both. The PLC runs the machine. The IoT Gateway connects the machine to the digital world. Trying to make one do the other's job is a recipe for failure. A Robustel IoT Gateway is the perfect, secure partner for your existing PLC, built to unlock its data and make it smarter.
