A Deep Dive into the Robustel EG5120's Hardware Architecture with NXP i.MX8

In the world of edge computing, it's easy to get excited about software possibilities like Docker containers and AI models. But let's be clear: none of that matters if the hardware underneath it can't keep up. For any serious deployment, the hardware architecture is the foundation upon which everything else is built. It dictates the device's processing power, its ability to connect to diverse equipment, and, most importantly, its capacity to survive in a harsh industrial environment.

This is why a detailed look at a device's internals is so crucial when choosing an  Industrial IoT Edge Gateway  . It's the difference between a solution that works on a test bench and one that works reliably for a decade in the field. In this article, we'll dissect the EG5120 hardware architecture , showing how each component was chosen to create a powerful, reliable, and versatile edge computing platform.

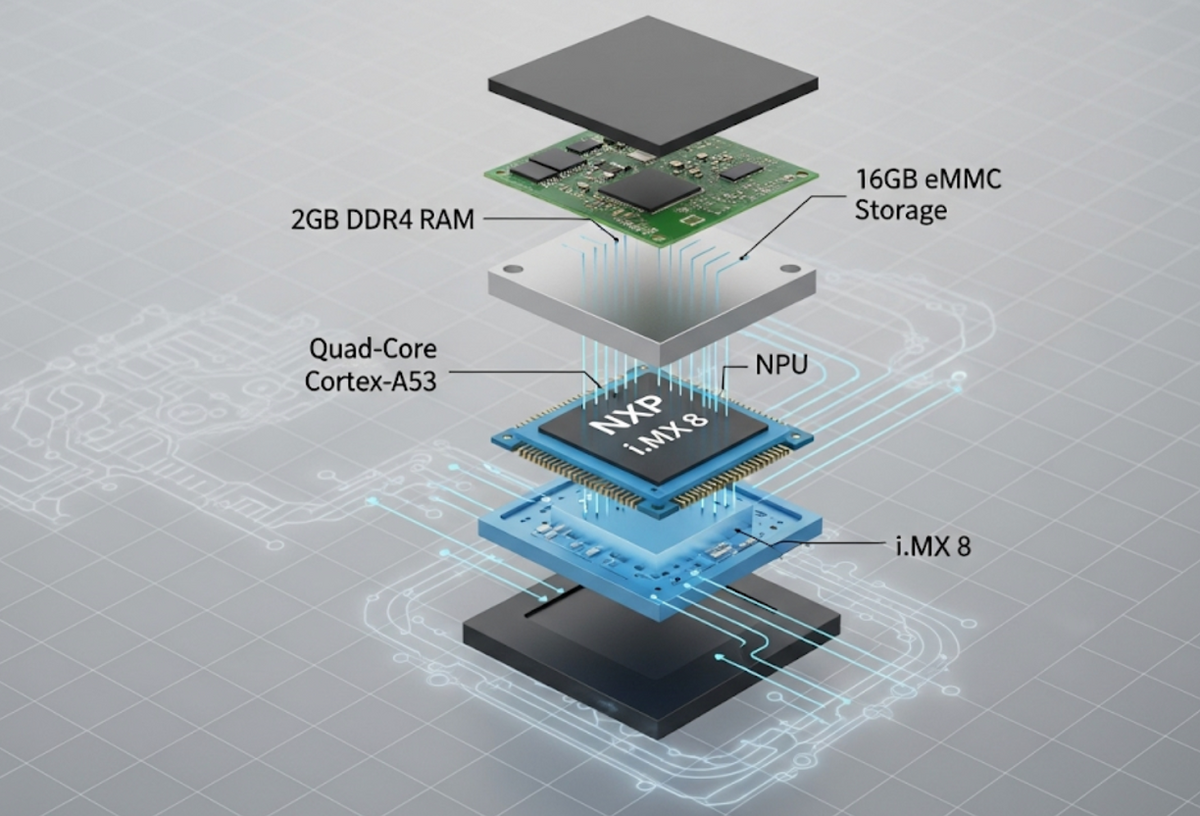

At the heart of the EG5120 is a powerful Quad-Core ARM Cortex-A53, 1.6 GHz processor from the NXP i.MX 8 family . So, why does this matter? Choosing a processor isn't just about clock speed; it's about finding the right balance of performance, power efficiency, and specialized features for industrial use cases.

The NXP i.MX 8M family is a popular choice for high-performance edge devices because it provides:

• Multi-Core 64-bit Performance: The quad-core Cortex-A53 is a powerful ARM 64-bit architecture , delivering the computational power needed for complex edge applications, including multi-tasking, running containerized applications, and handling demanding data processing loads.
• Significant AI/ML Horsepower: Specific variants in this processor family are equipped with a Neural Processing Unit (NPU) capable of delivering up to 2.3 TOPS (Trillion Operations Per Second) of AI computing power . This on-chip acceleration is crucial for running machine learning models efficiently at the edge for applications like real-time video analytics, predictive maintenance, and voice recognition.
• Long-Term Availability: NXP has a strong track record of providing long-term availability for its i.MX series processors, aligning with the long lifecycles of industrial equipment.

A key advantage of using a processor like the NXP i.MX 8 is its built-in hardware security features. This provides a "Root of Trust" that software-only security cannot match. These features include a secure boot process , which ensures the device only loads trusted, signed software, and cryptographic acceleration engines , which handle encryption and decryption efficiently without bogging down the main CPU cores. This hardware-level security is a cornerstone of the EG5120 hardware architecture .

The way a gateway handles memory and storage is a critical, yet often overlooked, aspect of its reliability.

The EG5120 is equipped with 2 GB of DDR4 RAM . This generous amount of high-speed memory is essential for running modern, memory-intensive applications, especially multiple Docker containers. It ensures smooth operation and prevents the system from becoming bogged down when processing large amounts of data.

Here is where a true industrial gateway separates itself from a DIY prototype. The EG5120 uses 16 GB of industrial-grade eMMC storage . Let's be blunt: a standard SD card is a ticking time bomb in any serious industrial deployment. We've seen it fail time and again. eMMC storage, on the other hand, is soldered directly to the mainboard, is significantly more durable, and is designed for the constant read/write operations of a 24/7 industrial device.

A gateway's primary job is to connect things. The EG5120 hardware architecture is designed with a rich suite of interfaces to bridge the gap between the OT and IT worlds.

• Global 4G LTE Cat 4: With dual SIM slots for failover , the EG5120 ensures a reliable internet connection, even if a primary cellular carrier experiences an outage.
• Dual Gigabit Ethernet: Two 10/100/1000 Mbps Ethernet ports provide high-speed, reliable wired connectivity, configurable for either WAN or LAN use.

• Industrial Serial Ports: The EG5120 includes two software-configurable ports that can operate as either RS232 or RS485 . The real 'aha!' moment for many developers isn't just seeing an RS485 port; it's realizing you can run a robust, noise-immune connection over hundreds of meters to a PLC or sensor—something you'd never attempt with standard logic-level serial.
• Digital & Analog I/O: With 2 Digital Inputs and 2 Digital Outputs , the gateway can directly monitor switches or relays and control external devices like alarms or pumps.
• High-Speed USB: A USB 3.0 port allows for connecting high-bandwidth peripherals like industrial cameras or external storage.
• Wireless Options: The EG5120 platform also supports optional Wi-Fi 5 and Bluetooth 5.2 (BLE) , providing flexible options for local wireless communication.

The final piece of the EG5120 hardware architecture is its physical design.

• Rugged Housing: A fanless aluminum alloy housing acts as a heatsink and provides durable protection.
• Wide Operating Temperature: An operating temperature range of -40°C to +70°C means the EG5120 can be deployed in unconditioned outdoor cabinets or hot factory floors.
• Flexible Installation: Support for DIN-Rail, Wall Mount, and Desktop installation provides flexibility for any industrial environment.

The EG5120 hardware architecture is a masterclass in purpose-built industrial design. It's not just a collection of components; it's a fully integrated system where every part—from the powerful NXP i.MX 8 processor and reliable eMMC storage to the versatile industrial interfaces and rugged enclosure—is chosen to deliver maximum performance, reliability, and flexibility. This robust foundation is what enables its Debian-based RobustOS Pro to unlock the true potential of edge computing for serious industrial applications.
