Case Study: How an IoT Gateway Enables CNC Remote Monitoring & Data Acquisition

For any machine shop, a silent CNC is a cash bonfire. The core challenges are twofold: you can't get data (like OEE) off the machine, and you can't fix it without an expensive service call. This case study shows how a modern industrial IoT gateway (specifically an edge gateway for cnc) solves both problems. By acting as a secure translator for CNC data collection (FOCAS/Modbus to MQTT) and a secure portal for CNC remote monitoring and access, a single IoT Gateway can slash downtime by 90% and provide the data needed for true OEE tracking.

If you run a machine shop, you know the sound. The terrible, deafening silence of a million-dollar CNC machine that isn't cutting metal. Every minute it sits idle, you are actively losing money—often thousands of dollars per hour.

What's worse? The machine's HMI is throwing an obscure alarm code. The operator is baffled. Your best engineer is on a plane, 2,000 miles away, to fix what might be a 10-minute programming error.

This is the reality for most shops. Your CNCs are your most valuable assets, but they're also insecure, disconnected "black boxes." You can't get data out, and you can't get service in. This is a TCO and operations disaster.

But what if you could? What if a single, $500 device could solve both problems and pay for itself in one afternoon? That device is the modern industrial IoT gateway. Let's walk through the case study.

A mid-sized aerospace parts manufacturer was running a 24/7 shop with 15 FANUC and Siemens CNC machines. They faced two crippling, interconnected problems:

1. Zero Data Visibility: They had no idea what their real OEE (Overall Equipment Effectiveness) was. They relied on operators manually logging downtime on paper. They couldn't answer basic questions: "Which machine is my bottleneck?" or "Why did Line 2 stop last night?"
2. Catastrophic Downtime Costs: When a machine did stop, their internal maintenance team was blind. If they couldn't fix it, they had to call the machine builder (OEM) and wait 24-48 hours for a specialist to fly in. The costs were staggering.

They needed a solution that could perform CNC data collection for OEE and provide CNC remote monitoring and access for their service teams.

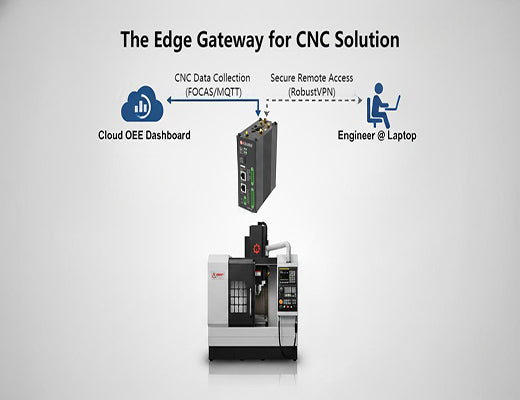

The manufacturer deployed a Robustel Add One Product: EG5120 edge computing gateway on each CNC machine. This single IoT Gateway was configured to perform two distinct, critical jobs simultaneously.

The CNC machines didn't speak "cloud." They spoke FANUC FOCAS, Siemens SINUMERIK, and Modbus. The EG5120, a true edge gateway for cnc, has the software and ports to speak these native languages.

• How it Works: The IoT Gateway connects directly to the CNC controller's Ethernet port. Using its built-in Edge2Cloud Pro software, it was configured (code-free) to poll the controller every second.
• What it Gets:It pulls critical OEE data that was previously trapped, including:
  • Machine Status (Running, Idle, Alarm)
  • Program Name
  • Part Counter
  • Cycle Time
  • Spindle/Feedrate Overrides
  • Active Alarm Codes
• Translation: The IoT Gateway then translates this raw data into clean, standardized JSON and publishes it via MQTT to the company's central analytics platform.

Result: For the first time, management had a real-time, 100% accurate OEE dashboard for the entire shop floor, all delivered by their IoT Gateway fleet.

This was the ROI-killer. The same IoT Gateway, when connected to our Add One Product: RCMS cloud platform, also acts as a secure plc remote access gateway.

• How it Works: When a machine (let's say CNC-12) went down, the OEM's engineer in another state could log into RCMS.
• Secure Tunnel: They would click "Connect" on CNC-12. Our RobustVPN service would create a secure, encrypted tunnel from their laptop, through the cloud, directly to that specific IoT Gateway.
• Full Access: The engineer's laptop was now virtually "plugged in" to the machine's local network. They could open their FANUC LADDER-III or Siemens TIA Portal software, connect to the PLC/controller, see the alarm, diagnose the logic, and fix the problem.
• The Result: A 3-day, $8,000 service trip became a 20-minute remote login.

By deploying a true IoT Gateway solution, the manufacturer transformed their operations. The results were not subtle.

• 90% Reduction in Service "Truck Rolls": The vast majority of downtime events were now diagnosed and resolved remotely.
• 40% Reduction in Mean-Time-To-Repair (MTTR): Problems that took days to fix were now resolved in under an hour.
• 15% Increase in OEE: The real-time CNC data collection from the IoT Gateway fleet immediately identified bottlenecks (like high "Idle" times) that the team could fix, boosting production.
• Full ROI in < 3 Months: The cost of their entire IoT Gateway deployment was paid for by two avoided service flights and the OEE gains in the first quarter.

A modern CNC machine is a powerful asset. Leaving it disconnected is like running a Formula 1 car without any data telemetry. It's an expensive, inefficient gamble.

This case study proves that a modern industrial iot gateway is not just a "nice-to-have." It is the essential piece of hardware that solves the two biggest problems in machining:

1. It's the translator that unlocks the rich data needed for OEE and analytics.
2. It's the secure guard that enables instant remote access for troubleshooting, killing your downtime costs.

An edge gateway for cnc isn't an expense; it's the highest-ROI investment you can make in your shop floor.
