IoT Gateway Security: Why It's Your First Line of OT Defense

Written by: Robert Liao

|

Published on

|

Time to read 7 min

Author: Robert Liao, Technical Support Engineer

Robert Liao is an IoT Technical Support Engineer at Robustel with hands-on experience in industrial networking and edge connectivity. Certified as a Networking Engineer, he specializes in helping customers deploy, configure, and troubleshoot IIoT solutions in real-world environments. In addition to delivering expert training and support, Robert provides tailored solutions based on customer needs—ensuring reliable, scalable, and efficient system performance across a wide range of industrial applications.

Summary

In the rush to connect factories, a critical question arises: "Won't this expose my plant to hackers?" The fear is real, but the solution is clear. This guide explains why iot gateway security is not an afterthought—it is the most important feature. A professional industrial iot gateway is not the weak link; it is the armored firewall that stands between your vulnerable OT assets (like PLCs) and the dangers of the IT network. We'll show you how a modern IoT Gateway provides "defense-in-depth" and why it's your first and most critical line of OT security.

Key Takeaways

The Problem: Your PLCs, VFDs, and CNCs (your OT network) were built for reliability, not security. They are "trusting" devices with no real defenses against modern cyber threats like ransomware.

The Solution: A true industrial iot gateway acts as a secure "OT DMZ." It isolates your vulnerable devices, acting as a stateful firewall that protects them from the IT network.

Key Functions: An IoT Gateway provides security through four layers: 1) Network Segmentation (Firewall), 2) Data Encryption (VPN), 3) Device Hardening (Secure OS), and 4) Secure Remote Management (RCMS).

The Standard: Don't trust "security" as a feature. Demand proof. A professional IoT Gateway should be built on a secure development lifecycle, such as the IEC 62443 standard.

IoT Gateway Security: Why It's Your First Line of OT Defense

Your factory runs on PLCs. Some of them might be 20 years old. They are incredibly reliable, but they were designed in an era when the only "network" was a serial cable and "security" meant putting a padlock on the cabinet door.

Now, management wants data. They want OEE dashboards. They want cloud analytics. They want you to connect that 20-year-old, "trusting" PLC to the internet. It’s a terrifying thought.

You're right to be terrified. A single ransomware attack that hits your PLCs doesn't just steal data—it stops production. It costs millions. This is the core challenge of OT security.

This is where everyone gets it wrong. They see the IoT Gateway as the "new device" and therefore the "new risk." This is backward. A cheap, consumer-grade device is a risk. But a professional industrial iot gateway is not the risk. It is the solution. It is the modern security guard you hire to stand in front of your vulnerable, trusting, and priceless assets.


A diagram showing the OT security risk of a flat network, where a hacker can easily access a vulnerable PLC from the IT network.


The "Soft, Chewy Center": Why Your OT Network is a Target

Your OT network—the collection of PLCs, VFDs, HMIs, and sensors—is a hacker's dream. Why?

  • No Authentication: Most legacy protocols (like Modbus) have zero security. Anyone on the network can send a "STOP" command.
  • No Encryption: All data is sent in plain text.
  • No Patches: You can't just "reboot the PLC" to apply a Windows update. That PLC's firmware hasn't been patched since 2005, and it can't be.
  • Assumed Trust: These devices were designed to implicitly trust everything else on their small, isolated network.

Connecting this "soft, chewy center" directly to your corporate IT network—which is connected to the internet, email, and employee laptops—is catastrophic. One phishing email on a receptionist's PC could lead to a hacker gaining control of your entire production line.

How a Modern IoT Gateway Provides "Defense in Depth"

A true industrial iot gateway is designed as a "defense-in-depth" security appliance. It assumes the IT network is hostile. It assumes the OT network is vulnerable. Its job is to create a secure bubble. This iot gateway security strategy has four layers.

1. The Firewall: Creating a "Network DMZ"

This is the most important function. A professional IoT Gateway is a stateful firewall.

  • It Segments: You place your PLCs and your IoT Gateway on their own, new, isolated "OT Network" (e.g., 192.168.100.x).
  • It Protects: The IoT Gateway is the only device that has a "foot" in both the OT network and the corporate IT network (or the cellular network).
  • It Controls: You create a strict "deny-all-by-default" rule. The only traffic the IoT Gateway allows is, for example, an outbound MQTT connection on port 8883 to a specific cloud server.
  • The Result: An attacker who compromises the IT network cannot scan, ping, or even see your PLC. The IoT Gateway is an invisible, armored wall.

2. The Secure Tunnel: Encrypting Data with VPN

Data from your PLC is unencrypted. Sending it over the internet in plain text is a massive risk. An IoT Gateway solves this by becoming a VPN endpoint.

  • The Process: The IoT Gateway takes the unencrypted Modbus or S7 data from the PLC.
  • The Tunnel: It then wraps this data inside a secure, encrypted VPN tunnel (like IPsec or OpenVPN) before sending it over 4G/5G or the internet.
  • The Result: Even if a hacker intercepts the traffic, all they see is encrypted gibberish. This makes an IoT Gateway a critical tool for secure data transport.

3. The Hardened Device: A Locked-Down OS

A raspberry pi iot gateway is a security hole. A professional IoT Gateway is a fortress.

  • Secure OS: A device like a Robustel IoT Gateway runs RobustOS Pro, a hardened Linux (Debian) OS. Unnecessary services are disabled, ports are closed, and the system is designed to resist attack.
  • Secure Boot: This ensures the IoT Gateway will only run firmware that is cryptographically signed by the vendor (Robustel). An attacker can't flash their own malicious OS onto the device.

4. The Central Command: Secure Remote Management

How do you patch 1,000 devices? A robust iot gateway security plan must include fleet management.

  • The Problem: Manually updating devices is slow and creates security gaps.
  • The Solution: A platform like Add One Product: RCMS allows you to securely push critical security patches (like OpenSSL fixes) to your entire IoT Gateway fleet with one click. It also provides secure, on-demand VPN access (like RobustVPN) for engineers, so you can disable remote access by default and only enable it for a specific user for a limited time.

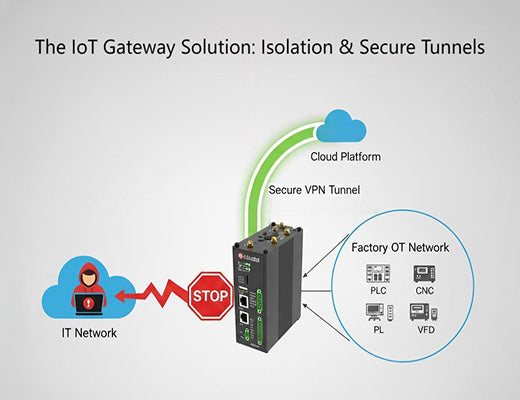

An architecture diagram showing how an industrial IoT gateway provides OT security by segmenting the PLC from the IT network and using a secure VPN.


A Buyer's Checklist for Secure IoT Gateway Hardware

Don't just take a vendor's word for it. "Secure" is a marketing term. Certified is an engineering fact. When choosing your IoT Gateway, demand proof.

  • Is it Certified to IEC 62443? This is the gold standard for OT security. Specifically, ask for IEC 62443-4-1 (Secure Development Lifecycle). This proves the vendor (like Robustel) builds security into their process, not just as a feature.
  • Is it Penetration Tested? Ask the vendor for a third-party penetration test report. This proves they've had independent, professional hackers try to break their IoT Gateway (we do!).
  • Is the OS Open but Hardened? An open OS like Debian is good, as it's battle-tested. But is it hardened? Does it support modern security features and (if you're a developer) Docker for application isolation? An IoT Gateway should be both open and secure.
  • Is the Management Platform Secure?The cloud platform is part of the attack surface. Is it secure? Does it offer 2FA, granular user permissions (RBAC), and full audit logs? An insecure cloud platform negates your secure IoT Gateway.

Conclusion: The IoT Gateway Isn't the Risk, It's the Shield

A vulnerable PLC connected to the internet is a ticking time bomb.

A professional industrial iot gateway is the blast shield. It's the translator that speaks to your "trusting" legacy devices. It's the firewall that isolates them. It's the security guard that encrypts their data and sends it safely. And it's the central command post that ensures your entire fleet remains up-to-date and secure against new threats.

Stop seeing the IoT Gateway as a security risk. A professional IoT Gateway is your single most powerful and important OT security asset.


A graphic comparing an uncertified IoT Gateway to a Robustel IoT Gateway that is certified to IEC 62443, emphasizing the importance of iot gateway security.


Frequently Asked Questions (FAQ)

Q1: What's the difference between an IoT Gateway and a standard IT firewall?

A1: An IT firewall is great at protecting PCs and servers.An industrial iot gateway is a specialized firewall that also speaks industrial protocols (like Modbus, S7) and is built to survive harsh industrial environments (heat, vibration). It's a purpose-built firewall, data translator, and remote access hub in one.

Q2: What is IEC 62443 and why is it so important for an IoT Gateway?

A2: IEC 62443 is the global standard for industrial automation and control systems security. For an IoT Gateway vendor, being certified (e.g., to 62443-4-1) means their entire development process—from design to coding to testing and patching—is audited to be secure. It's the strongest proof you can get that their iot gateway security is serious, not just a marketing claim.

Q3: Can't a hacker just attack the IoT Gateway itself?

A3: Yes, and that's the whole point! A professional IoT Gateway is designed for this. It's a hardened Linux device with a minimal attack surface, a stateful firewall, and regular security patches. We want the hacker to attack our hardened, monitored, and patchable IoT Gateway. We don't want them to attack your 20-year-old, unpatchable PLC. The IoT Gateway is the strong point you put in the line of fire.
