How to connect Zigbee devices to Home Assistant using the EG5120 edge gateway

Picture this: you've got this incredibly robust piece of industrial hardware, the Robustel EG5120, sitting on your desk. It's built for the toughest environments, designed for mission-critical industrial IoT applications. But you're thinking... can this powerhouse run my smart home? Let's be clear: the answer is a resounding yes. In my experience, bridging the gap between industrial reliability and smart home flexibility is where the magic truly happens.

You've probably seen plenty of guides using a Raspberry Pi, but what if you need something more? Something that won't fall over when you need it most? This is where the EG5120 shines. We're going to turn this industrial beast into the most stable Zigbee Home Assistant gateway you've ever had, giving you rock-solid local control over all your Zigbee devices. Isn't it time your smart home's backbone was as reliable as the critical infrastructure running our cities?

Before we dive into the "how," let's quickly cover the "why." You might be wondering why you'd use an industrial-grade device over a consumer-level one. In my experience, it boils down to three things:

• Unmatched Reliability: The EG5120 is designed for harsh conditions with a wide operating temperature range (-40 to +70 °C) and a durable metal housing. It's built for continuous operation, which means fewer reboots and a more stable smart home experience.
• Serious Performance: With a quad-core ARM processor, 2 GB of RAM, and 16 GB of eMMC storage, the EG5120 has more than enough power to run a snappy Home Assistant instance and handle a large Zigbee network without breaking a sweat.
• Open and Flexible Platform: The real 'aha!' moment for many is realizing the EG5120 runs RobustOS Pro, which is based on Debian 11. This isn't just a locked-down router OS; it's a full-fledged Linux environment. This gives you incredible freedom and control over your smart home's core.

• A USB Zigbee Dongle: This is the radio that will communicate with your Zigbee devices. Popular and well-supported choices include the SONOFF Zigbee 3.0 USB Dongle Plus or the Conbee II.
• An Ethernet Cable: To connect your EG5120 to your computer and home network.
• A Computer: For the initial setup process.
• Home Assistant Installed: EG5120 has already installed Home Assistant. For detailed steps, you can refer to " How to Install Home Assistant on an Industrial IoT Gateway (EG5120)".

Alright, let's get our hands dirty. This process assumes you're running a Home Assistant image directly on your EG5120. The setup is incredibly straightforward.

First, let's get connected.

1. Power up your EG5120 gateway and give it a solid minute for the system to boot up completely.
2. Connect the gateway directly to your computer using an Ethernet cable. You'll want to set your computer's IPv4 network settings to DHCP so it can get an IP address from the gateway.
3. Open a web browser and navigate to the default Home Assistant URL: http://192.168.0.1:8123.

• Insider Tip: If the device isn't brand new, you can find the correct IP address by checking the "gateway IP" in your computer's network card settings after it's connected.

4. You'll be prompted to create a new Home Assistant user account. Follow the on-screen instructions to get yourself set up.

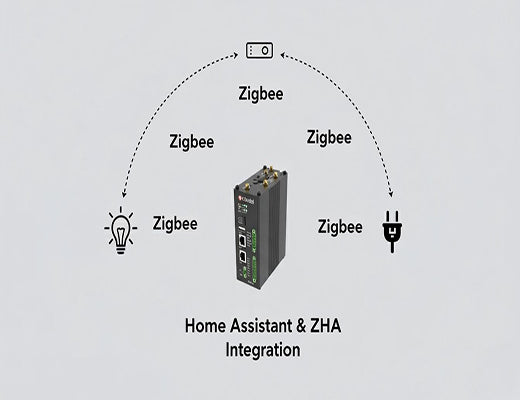

With your Home Assistant instance running, it's time to activate the heart of our Zigbee Home Assistant gateway: the USB dongle. We'll use the official Zigbee Home Automation (ZHA) integration, which is powerful and easy to use.

1. From your Home Assistant dashboard, navigate to Settings > Devices & Services.
2. On the Integrations page, click the Add Integration button in the bottom right corner.
3. In the search box, type ZHA and click on the Zigbee Home Automation result.
4. The system should automatically detect your Zigbee USB dongle. Select the correct serial port device from the list and click Submit.
5. You'll be given a choice. Let's start fresh by selecting Erase network settings and create a new network. This ensures you have a clean and stable Zigbee network from the get-go.

Now for the fun part! Let's bring your smart devices into the fold.

1. Stay on the Integrations page ( Settings > Devices & Services).
2. Find your newly configured Zigbee Home Automation card and click on Add Devices.
3. At this point, your Zigbee Home Assistant gateway is in pairing mode, actively searching for new devices to join the network.
4. Grab one of your Zigbee devices (like a sensor or a lightbulb) and follow its specific instruction manual to put it into pairing mode. It should be discovered by Home Assistant within a minute or two.

That's it! Your device is now part of Home Assistant. You can find it under the Zigbee integration or in the main Devices list. From here, the sky's the limit. You can start creating automations, building dashboards, and making all your Zigbee devices work together seamlessly.

So there you have it. We've taken a piece of industrial-strength hardware and turned it into the reliable core of a smart home. In my view, this is the future for serious smart home enthusiasts. Why settle for consumer-grade gadgets that need constant tinkering when you can build on a foundation designed for 24/7 uptime? The Robustel EG5120 proves that you don't have to choose between industrial power and smart home convenience. With a straightforward setup using Home Assistant's ZHA, you've now built a Zigbee Home Assistant gateway that is not only powerful but incredibly resilient. You're no longer just building a smart home; you're engineering a reliable one. Now go ahead and create those amazing automations with confidence!
