What Is an Edge Router? (And How Is It Different from a Core Router?)

An edge router is the "border guard" of your network, sitting at the perimeter to connect your local network (LAN) to the outside internet (WAN).¹A core router, in contrast, is the "superhighway" inside a massive network (like an ISP's), built for pure speed.²This article explains the critical edge router vs core router differences in function, security, and placement, helping you understand the vital role your edge router plays.

The word "router" is a bit like the word "car." It's a useful generic term, but in the real world, nobody confuses a city taxi with a long-haul freight truck. They're both "cars," but they are built for fundamentally different jobs, with different engines, security, and capabilities.

In networking, the most fundamental split is the edge router vs. the core router.

As engineers, this is the first distinction we learn. Getting it wrong is the fastest way to build an insecure, inefficient, or wildly expensive network. Your edge router is your building's front door, security desk, and shipping dock all in one. A core router is the high-speed elevator shaft inside a 100-story skyscraper.

This article will define exactly what is an edge router and clarify its critical role.

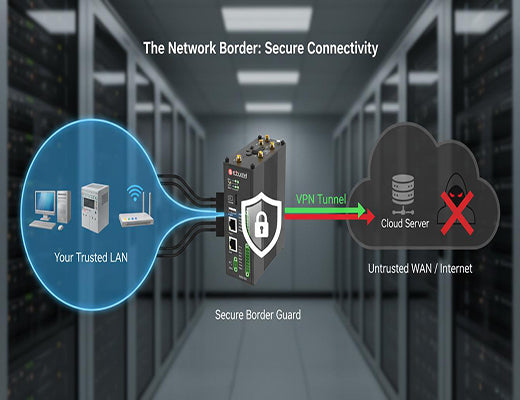

An edge router, sometimes called a "border router," is a device that connects one network to another.⁷Specifically, it connects your trusted, private Local Area Network (LAN) to an untrusted, public Wide Area Network (WAN), which is almost always the internet.

It sits at the "edge," or perimeter, of your network.

Every single piece of data that leaves your office, factory, or home—from an email to a PLC data packet—must pass through this edge router. Likewise, every packet coming in—from a legitimate web page to a malicious hacker's probe—must be inspected by this edge router.

This strategic, front-line position means its design is focused on three critical jobs:

1. Connectivity (The "On-Ramp"): It provides the physical and logical link to the outside world. This could be a wired Ethernet/Fiber port or, increasingly, a cellular 4G/5G modem for primary or failover connectivity.
2. Security (The "Guard"): This is the most important job of an edge router. It is your primary firewall, blocking unwanted traffic. It is your VPN endpoint, building secure, encrypted tunnels back to your corporate HQ or cloud.
3. Translation (The "Front Desk"): It translates your hundreds of private, internal LAN IP addresses into one single, public WAN IP address (a process called NAT). It also acts as the DHCP server, assigning those local IPs to your devices.

A core router lives in a completely different world. It does not sit at the edge of your network; it sits deep inside the "core" of a massive service provider or enterprise network (think AT&T, Google, or a huge university campus).

A core router's job is not to talk to the internet or provide security. Its job is to talk to other core routers at the highest possible speeds.

• Its Only Job is Speed: A core router is a specialist. It's built for one thing: high-speed, high-throughput packet switching. It's the backbone.
• It's All About Routing: It runs complex routing protocols (like BGP and OSPF) to find the absolute fastest path to send data within its own massive network.
• No Frills: A core router typically has no firewall, no VPN, no Wi-Fi, and no NAT. These features just slow it down. It assumes the traffic it receives has already been "cleaned" by an edge router somewhere else.

This is the key edge router vs core router difference: one is a specialized guard; the other is a specialized courier.

This table makes the distinction crystal clear.

The definition of an edge router is evolving. It's no longer just a "dumb" firewall. Modern industrial environments demand more.

A modern industrial edge router is converging with the IoT Gateway and the edge computer. This new, "smart" edge router does all the jobs we listed, plus it processes data locally.

For example, a Robustel edge computing gateway like the

can:

1. Act as an Edge Router: Provide a secure 4G/5G WAN link with a full VPN and firewall.
2. Act as an IoT Gateway: Connect to a PLC via Modbus/RS485 and translate its data to MQTT.¹⁰
3. Act as an Edge Computer: Run a Docker container to analyze that data and send alerts before the data even leaves the site.

This convergence is the "intelligent edge." You're not just buying an edge router; you're buying a powerful, open (Debian-based) computing platform for your entire network perimeter. This is especially true for any cellular edge router, which must be both a reliable router and an intelligent endpoint.

For 99.9% of businesses, factories, and branch offices, the device you are looking to buy is an edge router. A core router is a highly specialized, six-figure piece of equipment for a completely different job.

Your focus should be on choosing the right edge router—one that is secure, rugged, and reliable. Ask yourself:

• Does it have the WAN connectivity I need (especially 4G/5G failover)?
• Does it have a powerful firewall and the VPN protocols I need?
• Can it be managed remotely and at scale (with a platform like)?
• Is it just a router, or is it a smart edge router that can also run applications?

Understanding the edge router vs core router difference is the first step. Choosing a powerful, secure, and manageable edge router is the next.
