LTE vs 5G Antenna Technology Explained: MIMO, Beamforming & Device Impact

The dramatic performance leap from lte vs 5g isn't just about new software or frequencies; it's fundamentally enabled by advancements in antenna technology. This guide explains the core concepts behind lte vs 5g antenna systems, demystifying MIMO (Multiple Input Multiple Output), Massive MIMO, and beamforming. We compare how LTE leverages these techniques versus the more sophisticated approaches in 5g antenna technology, and discuss the real-world impact on device performance ( throughput, reliability) and design.

We've talked about the impressive speed and latency gains of 5G compared to LTE. But have you ever wondered how your phone or industrial router actually achieves that performance leap using seemingly similar radio waves? A huge part of the answer lies hidden in plain sight: the antennas. The evolution from lte vs 5g involves a massive upgrade in antenna intelligence and complexity.

As someone designing and deploying devices that rely on these signals, understanding the difference in lte vs 5g antenna technology is crucial. It’s not just about slapping more antennas on a box; it's about sophisticated techniques like MIMO and beamforming that fundamentally change how devices communicate. Let's decode these key concepts and see how 5g antenna technology builds upon and surpasses its LTE predecessor.

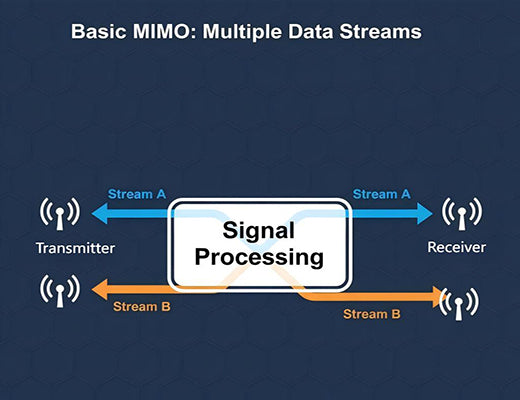

Even before 5G, 4G LTE made significant strides using MIMO (Multiple Input Multiple Output). The basic idea is simple but powerful: use multiple antennas at both the transmitter (cell tower) and receiver (your device) to improve communication.

• How it Works (Simplified): Instead of sending one stream of data over one antenna, MIMO allows sending multiple unique data streams simultaneously over multiple antennas using the same frequency band. It cleverly exploits the fact that radio signals bounce off objects (multipath propagation), creating slightly different paths between the transmitter and receiver antennas. Sophisticated signal processing at both ends can separate these streams.
• LTE MIMO: LTE commonly uses configurations like 2x2 MIMO (2 transmit, 2 receive antennas) or 4x4 MIMO. This directly multiplies the potential data throughput. A 4x4 MIMO system can theoretically achieve double the speed of a 2x2 MIMO system under ideal conditions. Techniques like spatial multiplexing (sending different data streams) and diversity (sending the same data over different paths for reliability) are key. This applies to both public lte vs 5g networks and private cellular setups.

Think of MIMO like adding more lanes to a highway – allowing more traffic (data) to flow simultaneously. LTE established this multi-lane approach as standard for high-performance cellular. The lte vs 5g comparison starts here, with 5G taking this concept much further.

While LTE uses a handful of antennas, 5g antenna technology takes MIMO to a whole new level, especially at the cell tower (gNodeB), introducing Massive MIMO.

• What it is: Instead of 4, 8, or maybe 16 antennas, Massive MIMO base stations deploy arrays with dozens or even hundreds of small antenna elements (e.g., 64T64R - 64 transmit, 64 receive).
• Key Benefits:
  • Increased Capacity & Efficiency: Allows the tower to communicate with many more users simultaneously (MU-MIMO - Multi-User MIMO) in the same frequency band with less interference. This is crucial for handling the high device density expected in the lte vs 5g future.
  • Improved Throughput: Enables higher-order MIMO (more simultaneous data streams) per user.
  • Enhanced Reliability: More antennas provide greater signal diversity.
  • Enables Precise Beamforming: The large number of antenna elements is the key enabler for effective beamforming, especially in mid-band ( Sub-6 GHz) frequencies.

Massive MIMO is a cornerstone of 5G's performance leap, fundamentally increasing the network's overall spectral efficiency compared to traditional LTE MIMO. This is a major architectural difference between lte and 5g.

If MIMO adds lanes, beamforming adds intelligent traffic direction. It's particularly vital for 5G, especially at higher frequencies.

• What it is: Beamforming is a signal processing technique that uses an array of antennas to focus the radio energy into a targeted beam towards a specific user device, rather than broadcasting it omnidirectionally like a floodlight.
• How it Works: By precisely controlling the phase and amplitude of the signal sent from each antenna element in the array, the signals constructively interfere in the desired direction (towards the user) and destructively interfere elsewhere, creating a focused beam.
• LTE vs 5G Beamforming: While some forms of beamforming existed in later LTE versions, it's a fundamental and much more sophisticated aspect of 5g antenna technology, especially with Massive MIMO arrays. 5G beamforming is highly dynamic, constantly tracking users as they move and adjusting the beams accordingly.
• Why it's Crucial for Higher Frequencies: Radio signals at higher frequencies ( mmWave used by 5G for extreme speeds) travel shorter distances and are easily blocked by obstacles (walls, foliage, even hands). Beamforming helps overcome this by concentrating signal power directly at the UE, improving signal strength, range, and reliability. It's the technology that makes mmWave 5G practical. The mimo vs beamforming synergy is key here.

Think of beamforming like switching from a broadcast floodlight (LTE basic transmission) to a highly focused, steerable spotlight (5G beamforming) – delivering light (signal) exactly where it's needed and reducing wasted energy (interference). Understanding mimo vs beamforming highlights a key sophistication leap in the lte vs 5g evolution.

These advanced network techniques directly influence the design and capabilities of the User Equipment ( UE) – your smartphone, tablet, or industrial lte vs 5g router.

• More Antennas: To support higher-order MIMO (like 4x4 MIMO becoming common in 5G devices) and potentially receive multiple beams, devices need more internal or external antennas. This impacts physical design, size, and cost. Look at the back of a high-performance 5G router like the R5020 Lite – those multiple antenna ports aren't just for show! Add One Product: R5020 Lite (mentioning its 4x cellular antenna ports for advanced MIMO)
• Sophisticated RF Front-End: The circuitry connecting the antennas to the modem (the RF front-end) becomes much more complex in 5G devices to handle multiple bands simultaneously, advanced MIMO processing, and potentially beamforming capabilities (though complex beamforming is more common at the tower).
• Antenna Placement Matters: Especially at higher frequencies, how you position the device and its external antennas becomes more critical to ensure optimal signal reception and avoid blocking beams. Industrial routers often benefit from strategically placed external antennas.

The difference in required lte vs 5g antenna complexity is a major factor contributing to the higher cost of 5G devices compared to their LTE counterparts.

The remarkable performance gains offered by 5G over LTE aren't magic – they are the result of significant engineering advancements, with antenna technology playing a starring role. While both lte vs 5g leverage MIMO to boost speeds, 5G elevates this with Massive MIMO at the base station and integrates sophisticated beamforming to precisely direct signals, especially crucial for making higher frequency bands usable.

Understanding the basics of mimo vs beamforming and the overall evolution of 5g antenna technology helps explain why 5G can deliver superior throughput, handle more users, and offer better reliability in challenging environments compared to LTE. It also highlights the importance of well-designed UE hardware, like Robustel's industrial routers, equipped with the necessary antenna configurations and RF capabilities to fully exploit the potential of both mature lte vs 5g networks. The smarts are increasingly in the antennas, shaping the future of wireless communication.
