What is a LoRaWAN IoT Gateway? A Guide to LPWAN Connectivity

A LoRaWAN IoT Gateway is a specialized type of IoT Gateway that acts as the central base station for a LoRaWAN network. Its primary job is to securely collect data from hundreds or even thousands of long-range, low-power LoRa sensors (nodes) and then forward that data to the cloud using a high-bandwidth connection like Cellular (4G/5G) or Ethernet. It is the essential bridge between your battery-powered field sensors and your data platform, making LPWAN connectivity possible.

You've heard about sensors that can run for 10 years on a single battery. You've heard about tracking assets across a massive farm or monitoring thousands of water meters in a city without Wi-Fi. This magical-sounding technology is LPWAN (Low Power Wide Area Network), and the most popular open standard for it is LoRaWAN.

But how does that tiny, battery-sipping sensor in a field actually get its data to the internet? It can't. Not on its own.

It relies on a powerful big brother: the LoRaWAN IoT Gateway. This device is the unsung hero of every LoRaWAN network. Let's explore exactly what this specialized IoT Gateway is and why it's a completely different tool from the cellular or wired gateways we've discussed before.

Before we define the gateway, we must understand the network it manages. LoRaWAN is a communication protocol designed for one specific tradeoff: it sacrifices speed for extreme long-range and extreme low power.

• Low Power: Devices can "sleep" for long periods, wake up, send a tiny data packet (like "Temp: 21.5C"), and go back to sleep. This allows them to run for 5-10 years on a single coin-cell battery.
• Long Range: A LoRaWAN IoT Gateway can pick up signals from sensors several miles (or kilometers) away in rural areas, or penetrate deep into multiple floors of a building.
• Low Data Rate: The tradeoff is speed. You can't stream video. You can't even make a voice call. You're sending a few bytes, a few times an hour.

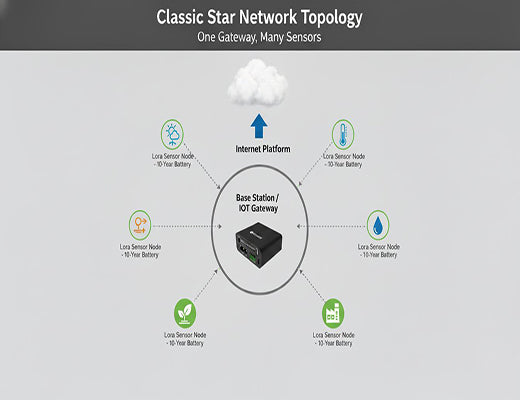

The entire network is built in a "star" topology. Hundreds of sensors (stars) all talk to one central base station: the LoRaWAN IoT Gateway.

The LoRaWAN IoT Gateway has one primary function: to act as the central bridge between the low-power LoRa sensors and the internet.

It's a "dumb" antenna on the front-end and a very smart computer on the back-end.

1. It Listens (Southbound): Its LoRa radio (using the LoRa physical layer) is constantly listening on multiple channels for tiny, encrypted data packets from any sensor within range.
2. It Gathers: It collects these packets from hundreds of sensors simultaneously. It doesn't decrypt them; it just wraps them up.
3. It Forwards (Northbound): It uses its own high-bandwidth internet connection—like 4G/LTE, 5G, or wired Ethernet—to forward these data packets to a cloud application called a "LoRaWAN Network Server" (LNS).

This IoT Gateway is the workhorse. It sits on a rooftop, silo, or in a utility closet, managing the entire sensor fleet and acting as their sole on-ramp to the digital world.

Here's the most important technical distinction you need to make when choosing a LoRaWAN IoT Gateway: where do you want the "brain" (the LNS) to be?

• 1. Packet Forwarder Mode (The "Dumb" Bridge): This is the most common setup. The LoRaWAN IoT Gateway is just a "packet forwarder." It blindly forwards every LoRa packet it receives to a cloud-based LNS (like The Things Network, AWS IoT Core for LoRaWAN, etc.). The cloud server then handles all the complex work of de-duplicating packets, managing security keys, and routing data.
• 2. Built-in Network Server (The "Smart" Hub): An advanced IoT Gateway can run the LNS on the device itself. For example, the is a powerful IoT Gateway that runs RobustOS Pro (Debian) and can host the entire ChirpStack Network Server stack locally using Docker. This creates a self-contained, private LoRaWAN network that doesn't rely on the cloud. Data is processed on the IoT Gateway and can be sent directly to your local server or SCADA system.

Don't forget: the LoRaWAN IoT Gateway itself needs an internet connection. This is its "backhaul." A flexible IoT Gateway will offer multiple options:

• Cellular (4G/5G): The most common and flexible option, making this a cellular IoT Gateway for its backhaul. Perfect for agricultural or smart city deployments.
• Ethernet: Ideal for smart building applications where a wired internet drop is available.
• Wi-Fi: Can be used as a backhaul by connecting to an existing Wi-Fi network.

This is a common point of confusion in our IoT Gateway series. Let's make it crystal clear.

In short, a Cellular IoT Gateway is a deep translator for a few complex machines. A LoRaWAN IoT Gateway is a wide collector for thousands of simple sensors.

You choose a LoRaWAN IoT Gateway solution when your project is defined by Massive Scale and Low Power.

• Smart Agriculture: You need to monitor soil moisture, temperature, and livestock location across 5,000 acres. You can't run power or Wi-Fi to 1,000 different sensors. You deploy 1,000 battery-powered LoRa sensors that all report back to one or two solar-powered LoRaWAN IoT Gateway devices.
• Smart Buildings: You want to monitor temperature, humidity, and occupancy in 500 different rooms. A LoRaWAN IoT Gateway in a utility closet can collect data from battery-powered sensors all over the building without new wiring, and use Ethernet to feed the Building Management System (BMS).
• Smart Cities: You need to monitor water meters, parking spaces, or trash bin levels across an entire city. A fleet of LoRaWAN IoT Gateway devices creates a city-wide LPWAN connectivity network for all these sensors.

A LoRaWAN IoT Gateway is a highly specialized, powerful, and cost-effective type of IoT Gateway. It solves a problem that no other gateway can: collecting small amounts of data from thousands of battery-powered devices over vast distances.

While a "standard" industrial IoT gateway is your smart translator for big, complex factory machines, the LoRaWAN IoT Gateway is your wide-area base station for building massive, low-cost sensor networks. For applications in agriculture, logistics, and smart cities, this specific IoT Gateway is the most important piece of hardware in your entire solution.
