IoT Gateway vs. Edge Computing Gateway: Is It Just Marketing or a Real Upgrade?

The terms IoT Gateway and Edge Computing Gateway are often used interchangeably, causing massive confusion. Let's be clear: they are not the same. A standard IoT Gateway acts as a "Data Translator," simply collecting data (like Modbus) and forwarding it to the cloud (like MQTT). An Edge Computing Gateway is a "Local Brain"—it does everything a standard IoT Gateway does, plus it has the onboard processing power (CPU/NPU) and open software (Docker/Debian) to analyze, filter, and act on data locally, before it ever reaches the cloud. This guide breaks down that critical difference.

Let's be honest, the "edge" is everywhere. It feels like every hardware vendor has slapped the "edge" label on their products, turning the IoT Gateway market into a confusing mess of buzzwords. Is an "Edge Computing Gateway" just a fancy, more expensive name for a standard IoT Gateway?

As an engineer who works with these devices every day, I can tell you definitively: No.

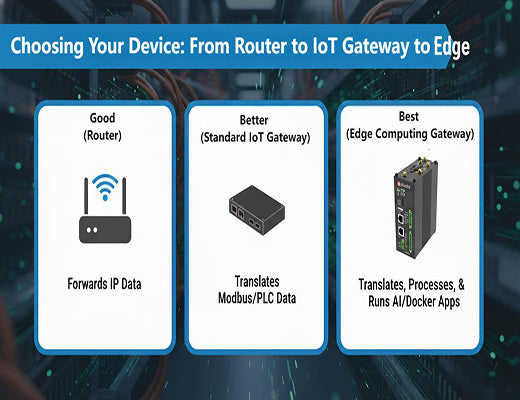

While the terms are abused, the concept represents a genuine and critical evolution. Choosing the wrong one can mean the difference between a scalable, future-proof system and a slow, expensive, dead-end solution. Let's cut through the marketing fluff and compare the "Translator" (the basic IoT Gateway) to the "Local Brain" (the Edge Computing Gateway).

For years, the primary job of an industrial IoT gateway was simple and crucial: act as a data bridge.

It was born to solve one problem: factory machines (OT) speak "old" languages (like Modbus RTU over RS485, Siemens S7) and the cloud (IT) speaks "new" languages (like MQTT, HTTP/S). They can't talk.

A standard IoT Gateway is the translator in the middle.

• Connects (Southbound): It connects physically to your PLCs, sensors, and meters.
• Translates (Protocol Conversion): It reads the Modbus data.
• Forwards (Northbound): It repackages that data as MQTT and sends it to an AWS or Azure cloud server.

This is a critical, valuable function. But notice the workflow: Collect -> Translate -> Forward. The device itself doesn't think. It's a passive bridge. This is the baseline for any professional IoT Gateway.

An Edge Computing Gateway starts with all the capabilities of a standard IoT Gateway—it must be a great translator. But it adds powerful layers of hardware and software that allow it to process, analyze, and act on data locally.

It’s not just a bridge; it’s a full-blown industrial computer.

• Standard IoT Gateway: Often runs a lightweight MCU (microcontroller) or basic CPU with minimal RAM, just enough to handle protocol conversion.
• Edge Computing Gateway: This is the core difference. It features a powerful, multi-core ARM CPU (like the NXP Quad-Core A53 in the EG5120), significant RAM (e.g., 2GB DDR4 vs. 128MB DDR2), and larger, more reliable eMMC storage.

Why? Because it's not just forwarding data packets. It's running applications.

• Standard IoT Gateway: Typically runs a closed, proprietary firmware. You can configure it, but you can't add to it. You get what the vendor gives you.
• Edge Computing Gateway: This is the game-changer. Devices like the run an open operating system, like RobustOS Pro (based on Debian 11). This gives you root access and, most importantly, Docker support.

Why? This means you decide what the gateway does. You can deploy your own custom applications, packaged as containers, right onto the IoT Gateway. For example:

• Run a local Node-RED flow for complex logic.
• Run a local InfluxDB database to buffer data for days.
• Run a custom Python script to analyze data and control a local DI/DO pin.

This transforms the IoT Gateway from a simple tool into an open, flexible platform.

• Standard IoT Gateway: Has no concept of AI.
• Edge Computing Gateway (Advanced): The EG5120 includes a dedicated NPU (Neural Processing Unit) with 2.3 TOPS of power.

Why? This hardware is built specifically for Edge AI. You can now run trained machine learning models on the gateway. Instead of sending a 24/7 video stream to the cloud for analysis, the IoT Gateway can run a visual inspection model locally and just send an alert: "Defect Detected." This is the peak of the iot gateway vs edge gateway evolution.

This isn't just a technical upgrade; it's a financial one. Using an edge computing gateway over a simple data-forwarding IoT Gateway has massive business benefits:

This is the most immediate ROI. Cellular data and cloud storage/processing are expensive.

• Standard IoT Gateway: Dumps all raw data to the cloud. (e.g., 1,000 readings/second = $$$$)
• Edge Computing Gateway: Pre-processes the data. It sends only the 1-minute average and critical alerts. (e.g., 1 reading/minute = $)

This simple filtering can reduce data costs by over 90%, directly impacting your TCO.

What happens if your IoT Gateway detects a critical pressure failure?

• Standard IoT Gateway: Sends the data to the cloud. The cloud processes it, runs a rule, and sends a "shut down" command back. This round trip could take 2-5 seconds.
• Edge Computing Gateway: Detects the failure locally. Runs the rule locally. Triggers a local relay locally. The "shut down" command happens in milliseconds.

For critical processes, this is the difference between a safe stop and a catastrophic failure.

• Security: Sensitive data can be analyzed and anonymized on your IoT Gateway before it ever leaves your facility, improving privacy and security.
• Uptime: What if your internet connection fails? The standard IoT Gateway stops working. The Edge Computing Gateway keeps running its local logic, buffering data, and controlling the process, ensuring your operation continues.

Here’s the simple breakdown:

So, is "edge" just marketing? No. It's a fundamental shift in capability.

Here’s how to choose:

• If your project is extremely simple (e.g., read 10 Modbus registers from one PLC and send them to the cloud once an hour) and you know the requirements will never change, a basic IoT Gateway might suffice.
• For any other modern industrial application—where you want to reduce data costs, need real-time alerts, plan to scale, or want the flexibility to add new logic or AI in the future—you need an Edge Computing Gateway.

An Edge Computing Gateway is a true IoT Gateway that is ready for the future. A standard IoT Gateway is just a tool for the past. Don't build your new smart factory on old architecture.
