LoRaWAN Gateway Redundancy: High-Availability Guide

In industrial IoT, "uptime" is the only metric that matters. If a single device failure causes a data blackout, the architecture is flawed. This guide explores the concept of High Availability (HA) through LoRaWAN gateway redundancy. Unlike Wi-Fi, where devices pair to one router, LoRaWAN allows multiple gateways to receive the same packet simultaneously. We explain how to design an "N+1" topology where overlapping coverage ensures that if one LoRaWAN gateway is destroyed by lightning or power loss, the neighbor picks up the traffic instantly without a single lost packet.

In a Smart Home, if the internet goes down, you can't stream a movie. It is annoying. In a Smart Refinery, if the gas leak detector goes offline, people are in danger. It is catastrophic.

For mission-critical applications, a single connection path is never enough. You need redundancy.

Fortunately, LoRaWAN is one of the few wireless technologies designed with redundancy at its core. Unlike Wi-Fi, where a device connects to one access point, a LoRa sensor broadcasts to anyone listening. This unique feature allows you to build a bulletproof High-Availability (HA) network by simply adding more hardware.

This guide explains how to design a redundant LoRaWAN gateway architecture that ensures your data survives hardware failure, power outages, and physical destruction.

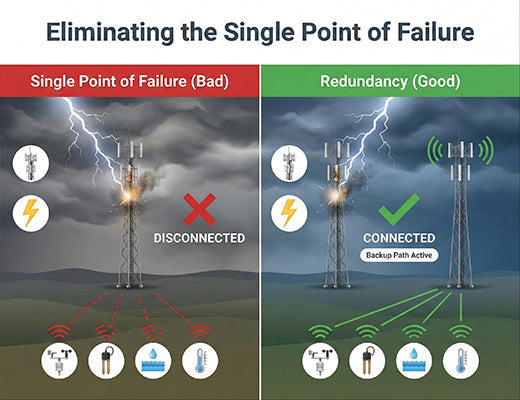

The most common mistake in network planning is designing for "Coverage" instead of "Availability." You might prove that one LoRaWAN gateway on the central tower covers the entire facility. Great. You saved money.

But that gateway is now a Single Point of Failure (SPOF).

• Scenario: A lightning strike hits the tower. The gateway fries.
• Result: Every sensor in the plant goes dark. You are blind until a technician climbs the tower with a replacement. In a remote mine, that could take days.

For critical infrastructure, the question is not "Can one LoRaWAN gateway hear the sensors?" It is "What happens when that gateway dies?"

The industry standard for High Availability is "N+1."

• N = The number of gateways needed for coverage.
• +1 = The backup.

Because LoRaWAN is a broadcast protocol, you don't need complex "failover" scripts. You simply install a second LoRaWAN gateway with overlapping coverage.

• Normal Operation: Both gateways hear the sensor. Both forward the packet to the Network Server. The server sees the duplicate and discards one.
• Failure Mode: Gateway A dies. Gateway B continues to hear the sensor. The server still gets the packet.
• The Impact: Zero downtime. Zero data loss. The sensor doesn't even know Gateway A is gone.

To achieve true redundancy, you must plan the physical placement of each LoRaWAN gateway. You cannot just put two gateways on the same pole. If the pole falls or power to that building is cut, you lose both.

The Strategy: Spatial Diversity Place your LoRaWAN gateway units on different buildings, powered by different circuits.

• Partial Overlap (Economy): Gateways are placed far apart, with only the critical center zone covered by both.
• Full Redundancy (Critical): Gateways are placed closer together so that every sensor is within range of at least two units. This is mandatory for "Safety Integrity Level" (SIL) applications like fire detection.

You might worry: "If I have three LoRaWAN gateways, will I get three copies of every data point?" No. The intelligence is in the cloud.

When a LoRaWAN gateway forwards a packet, it adds a timestamp and signal strength (RSSI). The Network Server (LNS) receives all copies within a specific time window (deduplication window).

1. LNS Action: It identifies that Packet A (from Gateway 1) and Packet B (from Gateway 2) have the same Frame Counter and Payload.
2. LNS Decision: It keeps the packet with the best signal quality (SNR) and drops the rest.
3. Your App: Your dashboard sees only one clean data point.

This means adding a redundant LoRaWAN gateway adds robustness without adding data clutter.

Redundancy isn't just about the radio; it's about the internet connection. If both your gateways connect to the same fiber line, and a backhoe cuts the line, your redundancy is useless.

Best Practice:

• Gateway A: Connected via Ethernet (Fiber ISP).
• Gateway B: Connected via Cellular 4G/LTE. By mixing backhaul types on your LoRaWAN gateway fleet, you protect against ISP outages as well as hardware failures.

Redundancy costs money. You have to buy a second LoRaWAN gateway. But in the context of industrial operations, hardware is cheap compared to the cost of a single outage.

A robust N+1 architecture transforms your network from a fragile IT project into a resilient utility. By ensuring that every sensor has two paths to the cloud, you guarantee that your critical alerts will be delivered, no matter what happens to the hardware in the field.
