The SD-WAN Edge Router: Is It the Right Choice for Your Branch Connectivity?

An sd-wan edge router is an intelligent, software-defined evolution of a traditional industrial edge router. While a basic edge router routes traffic based on IP addresses, an sd-wan edge router routes traffic based on applications (like Zoom, Salesforce, or Office 365). It simplifies management, improves reliability by actively using multiple WAN links (like Fiber and 5G), and lowers costs by reducing reliance on expensive MPLS. This guide explains how this new type of edge router is revolutionizing branch connectivity.

If you manage a business with multiple branches—say, 50 retail stores or 100 clinic locations—you know the pain. Your traditional network is a "hub-and-spoke" VPN nightmare. Every branch has a secure edge router that builds a permanent, "dumb pipe" (VPN tunnel) back to your central HQ data center.

A store in Los Angeles needs to access a cloud app (like Office 365, hosted in Seattle). The traffic goes from LA all the way to your HQ in Chicago, just to be routed back to Seattle. It's slow, inefficient, and eats up your expensive, private MPLS bandwidth.

This is the problem that the sd-wan edge router was born to solve. It's not just a new feature; it's a completely new philosophy for managing your branch connectivity.

A traditional industrial edge router is a workhorse, but it's a "dumb" one (in terms of applications).

• It's "Packet-Aware": It only sees IP addresses (Layer 3). It can't tell the difference between a critical VoIP phone call and someone browsing YouTube. It's all just "traffic."
• It's "Failover-Only": It has a primary wired link and a 4G LTE link for failover. That expensive 4G link sits idle 99% of the time, doing nothing.
• It's Managed Manually: To change a firewall rule on 500 devices, you have to manually configure 500 different edge router units. It's a management nightmare.

This model is broken. The sd-wan edge router is the solution.

SD-WAN stands for Software-Defined Wide Area Network. This "software-defined" part is the key. It separates the "control" (the brain) from the "data" (the hardware).

An sd-wan edge router is a device that gets its "brain" from a central cloud controller, called an Orchestrator. This changes everything.

This is the most important difference. An sd-wan edge router operates at Layer 7. It can identify applications. You no longer write rules like: "Allow IP 10.1.5.20 to IP 50.4.3.2". You write business policies like:

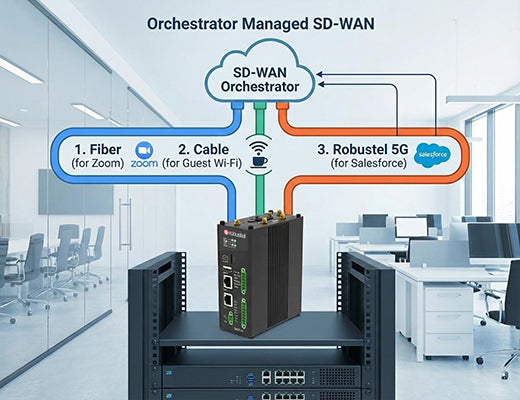

• "Send all Zoom & VoIP traffic over the primary Fiber link (low latency)."
• "Send all Salesforce & Office 365 traffic directly to the cloud over the 5G link."
• "Send all Guest Wi-Fi traffic over the cheap Cable link."
• "Block all BitTorrent traffic."

The sd-wan edge router automatically identifies the traffic and routes it down the most efficient path. This is a massive leap from a basic edge router.

That 4G/5G backup link is no longer just sitting there. An sd-wan edge router can use all its WAN connections (e.g., Fiber, Cable, and 5G) at the same time. It actively monitors all paths for latency, jitter, and packet loss. If the Fiber link suddenly becomes laggy, the edge router will seamlessly move your critical Zoom call to the 5G link without dropping the call. This is active-active link management.

This is the TCO-killer. You no longer manage 500 individual edge router devices. You manage one policy in the cloud Orchestrator, and it pushes that policy to all 500 devices. This also enables Zero-Touch Provisioning (ZTP). You can ship a brand new sd-wan edge router to a new store. A non-technical person just plugs it in. The edge router "calls home" to the Orchestrator, downloads its policy, and is 100% configured in minutes. This is a huge iot fleet management win.

In the old VPN model, a 4G LTE edge router was just a slow, emergency backup. In the SD-WAN model, a 5g edge router is a first-class citizen.

5G is so fast and so low-latency that it's no longer just a "backup"; it's a primary link. A cellular edge router is the key to unlocking the full flexibility of SD-WAN.

• Primary Link: For a "pop-up" store or a new branch, a Add One Product: R5020 Lite 5g edge router can be the primary, high-speed connection. You're online in a day, not six weeks waiting for fiber.
• Active-Active: The 5g edge router can actively share the load with a wired link, providing a massive boost in total bandwidth.
• The Ultimate Failover: If the fiber does get cut, the sd-wan edge router fails over to the 5G link so fast and seamlessly that your users on that Zoom call won't even know it happened.

So, should you buy a traditional VPN edge router or a new sd-wan edge router?

• You have a small number of sites (< 5-10).
• Most of your applications are hosted at your own HQ data center (not in the cloud).
• Your primary concern is the lowest upfront hardware cost, not operational complexity.
• You only need basic 4G failover for emergencies.

• You have many branches (10, 50, or 1000+).
• Your business relies heavily on cloud apps (Office 365, Salesforce, AWS, Azure).
• You use real-time apps like VoIP and video conferencing that are sensitive to latency.
• You need high reliability and want to actively use multiple WAN links (like Fiber + 5G).
• You want to simplify network management and speed up new site deployment (ZTP).

The sd-wan edge router is the new standard for multi-site branch connectivity. It's an intelligent edge router that understands applications, not just packets. It lowers costs by replacing expensive MPLS, improves reliability by actively using all available links, and radically simplifies management through its cloud-based "Orchestrator."

And in this new world, a powerful cellular edge router (especially a 5g edge router) is no longer just a backup. It's the high-speed, flexible enabler that makes a truly agile and resilient SD-WAN possible.
