The S7 Edge Router: A Secure Guide to Siemens PLC Data & Remote Access

Connecting a modern Siemens PLC to the cloud is a top priority, but it's full of "gotchas." This guide provides a practical walkthrough of how a modern industrial edge router (acting as an IoT Gateway) securely solves both S7 data collection and siemens plc remote access. We'll cover the critical 2-minute TIA Portal configuration (PUT/GET and optimized blocks) and show how a single s7 edge router can poll your PLCs, convert S7 data to MQTT, and provide secure, on-demand VPN access for remote TIA Portal programming.

If your factory runs on Siemens, you know their PLCs are the gold standard—powerful, reliable, and built to last. But they can also feel like a locked-down data fortress. In the age of Industry 4.0, you need the data from your S7-1200 or S7-1500 for OEE dashboards, predictive maintenance, and cloud analytics.

Even more, when a machine at a remote site goes down, you're faced with a $5,000 "truck roll" just to plug in a laptop with TIA Portal.

This is a massive TCO and security problem. You can't just plug your PLC into the internet. But you can't afford not to connect it. The solution is not a simple router; it's a specialized, secure edge router designed for this exact job. This industrial edge router is your key to the Siemens kingdom.

A standard edge router connects your office to the internet. An s7 edge router is a far more intelligent device. It's a hybrid:

1. It's a Secure edge router: It acts as a rugged, industrial-grade firewall and VPN endpoint.
2. It's an IoT Gateway: It has the built-in software (a driver) to "speak" the S7 protocol, understand Data Blocks (DBs), and translate them.

A normal edge router can't do this. It sees S7 traffic as gibberish. You need this specialized industrial edge router to perform both secure connectivity and protocol translation.

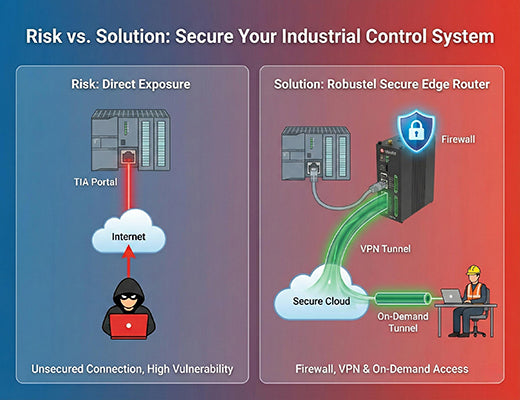

Before we even talk about data, we must talk about security. This is the first and most important job of your edge router. A PLC should never be exposed to the IT network, let alone the internet.

• Network Segmentation: The secure edge router creates a tiny, isolated OT network for the PLC (e.g., 192.168.10.x). The PLC and the edge router's LAN port are inside this "bubble."
• The Firewall: The edge router's WAN port connects to the "untrusted" factory LAN or a 4G/5G cellular network. Its stateful firewall is set to DENY ALL inbound traffic. Your PLC is now invisible to hackers and ransomware.
• The Secure Uplink: The edge router then uses a secure, outbound-only VPN tunnel to send data to the cloud. A cellular edge router is even better, as it creates a physical "air gap" from the local IT network, making it the ultimate secure edge router for ot security.

This is the "translator" function. This edge router function is what makes it an IoT Gateway.

This is the "insider" secret. It's the step everyone misses. Before your edge router can read anything, you must configure the Siemens S7-1200 or S7-1500 in TIA Portal.

1. Enable PUT/GET (The Security Handshake): In the PLC's properties -> Protection & Security -> Connection mechanisms, you must check the box: "Permit access with PUT/GET communication from remote partner."
2. Disable "Optimized Block Access" (The Data Map): For the specific Data Blocks (DBs) you want to read (e.g., your "OEE_Data" DB), right-click -> Properties -> Attributes, and UN-check the box labeled "Optimized block access."

This tells the PLC to arrange its data in a simple, addressable way (like DB10,W2) that the edge router can understand.

Now, the easy part. On your Robustel edge router (like the EG5120 ), you use the Edge2Cloud Pro software:

1. Add Device:Name: Line_1_S7, Protocol: Siemens S7 (1200/1500), IP: 192.168.10.50 (your PLC's IP).
2. Map Tags: You tell the edge router what to read.

• Tag: CycleCount, Address: DB10,INT2 (Read the Integer at byte 2 of DB10)
• Tag: MotorTemp, Address: DB10,REAL4 (Read the Real/Float at byte 4 of DB10)

3. Publish: You tell the edge router where to send the clean data (e.g., to your MQTT cloud broker).

That's it. Your s7 edge router is now securely polling the PLC and streaming clean, standardized JSON data for your dashboards.

This is the function that provides the fastest ROI. The samesecure edge router that collects your data also enables siemens plc remote access.

• The Problem: Your machine is down. You need to send an engineer with a laptop running TIA Portal. This is a $5,000 "truck roll."
• The Edge Router Solution: Your engineer, from home, logs into Add One Product: RCMS (our cloud platform).
• On-Demand Tunnel: They find the edge router for that machine and click "Connect" on RobustVPN.
• The Magic:RCMS creates a secure, temporary VPN tunnel from their laptop, through the cloud, to that specific edge router. Their laptop is now "virtually" on the PLC's private 192.168.10.x network.
• The Fix: They open TIA Portal, which discovers the PLC. They go online, diagnose the fault, and fix the logic in 10 minutes.

You just used your edge router to save $5,000 and 3 days of downtime. This edge router just paid for itself 10 times over.

Stop seeing your Siemens PLCs as isolated "black boxes." A modern industrial edge router is the "one-box" solution that solves your two biggest problems.

It is the secure edge router that acts as your OT firewall, protecting your assets. And it is the "smart" edge router (or IoT Gateway) that acts as your S7 translator and your remote access hub. This edge router is the key to unlocking the data in your Siemens-powered factory, securely and cost-effectively.
