The Modbus Edge Router: Your Guide to Connecting RTU/TCP to the Cloud

Connecting Modbus devices to modern IT systems is the most common challenge in industrial IoT. This guide provides a practical look at how a modern edge router acts as the perfect translator. We'll explore how an industrial edge router functions as a Modbus TCP gateway, handles Modbus RTU to TCP bridging, and—most importantly—performs intelligent Modbus to MQTT translation, turning raw register data from your PLCs and meters into usable, cloud-ready information.

Let's start with a universal truth of the factory floor: Modbus is everywhere.

It's the 1979-era protocol that simply refuses to die. Why? Because it's simple, reliable, and it just works. Your PLCs, VFDs, power meters, and countless sensors all speak it fluently. It's the "Latin" of the industrial world.

But here's the problem: your cloud platform, SCADA 2.0, or MES system doesn't speak Latin. It speaks modern languages like MQTT, JSON, and OPC UA. This is the #1 integration challenge in all of IIoT. How do you bridge a 40-year-old protocol with a cloud-native platform?

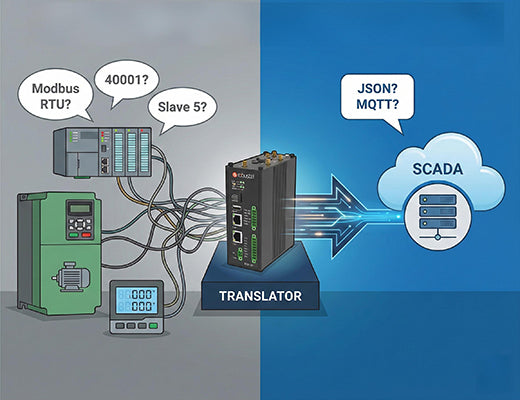

You don't need a simple converter. You need a translator. You need an industrial edge router. This guide is the practical breakdown of how this critical device, the modbus edge router, makes connectivity easy.

First, let's clarify the two "dialects" of Modbus you'll encounter. A modern edge router must master both.

• Modbus RTU: The original. It's a serial protocol, meaning it runs over physical RS485 or RS232 connections (the old-school two- or three-wire cables). It's simple, robust, but slow and can't be routed over Ethernet.
• Modbus TCP: The modern update. It's just the Modbus protocol wrapped inside a standard TCP/IP packet. It runs over Ethernet. It's faster and can be routed, but it's still "Modbus" at its core.

The problem remains: neither RTU nor TCP data is "cloud-ready." It's raw, cryptic, and based on a polling system (Master-Slave) that is the opposite of the cloud's efficient, event-based model. A modern edge router (which also functions as an IoT Gateway) solves all these problems.

Forget those cheap, $50 serial-to-Ethernet converter boxes. A true industrial edge router is an intelligent industrial computer. In a Modbus network, this modbus edge router plays three critical roles.

In a Modbus network, there is one "Master" (who asks questions) and many "Slaves" (who answer). A PLC or sensor is a "Slave" device; it never speaks unless spoken to.

The edge router takes on the crucial role of the Modbus Master. It's programmed to continuously "poll" your slave devices at a set interval (e.g., every 1 second).

• Edge Router: "Hey, PLC-Slave-5, what is the value in register 40001?"
• PLC: "The value is 1500."
• Edge Router: "Got it. Hey, Power-Meter-Slave-10, what's in register 30010?"
• Power Meter: "The value is 4805."

Without this active "Master" poller, the PLC and meter would remain silent forever. This polling engine is a core software feature of any good edge router designed for industrial use.

This is the simplest function. You have an old machine with a Modbus RTU (RS485) port, but your new SCADA system only speaks Modbus TCP (Ethernet).

The edge router can act as a simple modbus tcp gateway. It physically connects to the RS485 serial port and exposes that device over the network via an IP address. The SCADA system simply polls the edge router's IP address, and the edge router transparently handles the Modbus RTU to TCP conversion. While useful, this is a basic function. The real power of this edge router lies in translation.

This is the most powerful and important job of an edge computing router (the "smartest" type of edge router). Instead of just bridging Modbus, it translates it.

The old way: Value: 1500 The new way: {"timestamp": "2025-11-03T10:30:01Z", "device": "Motor-1", "tag": "Motor_Speed", "value": 150.0, "unit": "RPM"}

A true Modbus to MQTTedge router performs this translation on the edge:

1. It polls the Modbus register (e.g., 40001) and gets the raw value (1500).
2. It applies local logic you configured: "This is 'Motor_Speed'. The data type is an integer. Divide the value by 10 to get the real RPM."
3. It adds critical context: a timestamp, a human-readable tag name, and units.
4. It formats this data as a lightweight JSON payload.
5. It securely publishes this single, clean data packet to a central MQTT broker in the cloud.

This is the goal. Your cloud platform doesn't need to know what Modbus is. It just subscribes to the "Motor_Speed" topic and gets clean, usable data. This is what a modern edge router is for.

I know what you're thinking. "I can buy a cheap serial-to-Ethernet converter for $50. Why do I need a $600 edge router?"

You're comparing a bicycle to a car. That $50 box is a passive converter. A professional industrial edge router is an active industrial computer.

• Security: The cheap box is a massive security hole. It has no firewall, no VPN, and a default password. An industrial edge router is a secure edge router with a stateful firewall, secure boot, VPN tunnels, and IEC 62443-certified software.
• Intelligence: The cheap box cannot translate to MQTT. It cannot add timestamps. It cannot filter data. It just dumps raw, ugly Modbus data onto your network. Your server has to do all the hard work. A "smart" edge router does this processing at the edge.
• Reliability: The cheap box is consumer-grade. It will fail in a hot, vibrating cabinet. An industrial edge router is built with eMMC storage (not an SD card) and wide-temp components (-40°C to 75°C) specifically for that environment.
• Management: How do you update the firmware on 1,000 cheap boxes? You don't. How do you manage 1,000 Robustel edge router devices? You do it from a single web page using RCMS , pushing updates with one click.

When you factor in security risk, server-side development, and the staggering cost of downtime or sending a technician to a remote site (a "truck roll"), that "$50 box" is the most expensive piece of hardware you'll ever buy. The edge router has a higher upfront price but an infinitely lower Total Cost of Ownership (TCO).

So, how hard is this? On a professional edge router like a Robustel EG5120, it's a simple, code-free, 5-minute job using our Edge2Cloud Pro software.

Let's connect that motor:

1. Connect: Wire the motor's RS485 output to the edge router's RS485 port.
2. Add Device: In the edge router's web GUI, go to Edge2Cloud Pro. Add a new device.

• Device Name:Motor-1
• Protocol:Modbus RTU
• Serial Port Settings:/dev/ttyS0, 9600 baud, 8N1 (match your motor)

3. Define Tags: This is the magic. Click "Add Tag."

• Tag Name:Motor_Speed
• Slave ID:5 (the motor's Modbus address)
• Register:40001 (Holding Register 1)
• Function Code:03 - Read Holding Registers
• Data Type:Int16
• Scale Factor:0.1 (to turn 1500 into 150.0)

4. Configure Northbound: Go to the "Cloud" tab.

• Protocol:MQTT
• Broker Address:mqtt.your-server.com
• Topic:factory/motors

5. Click Save & Run.

That's it. Your edge router is now a fully functional Modbus to MQTT translator. This ease of use is what defines a quality edge router platform.

Modbus isn't going anywhere. It's the bedrock of OT. But the future of industrial data is MQTT and the cloud. The only device designed to bridge this 40-year gap securely, reliably, and intelligently is the industrial edge router.

Stop thinking modbus rtu to tcp as just a simple conversion. Start thinking of your modbus edge router as the intelligent data-processing hub for your entire factory. It's not just a translator; it's the foundation of your data strategy.
