The Private 5G Edge Router: Your On-Ramp to a Dedicated Enterprise Network

A private 5g network is the ultimate solution for industrial connectivity, but how do your machines actually use it? The answer is the private 5g edge router. This guide explains that this specialized industrial edge router is the critical piece of User Equipment (UE) that acts as the secure on-ramp for your PLCs, AGVs, and cameras. It's the device that finally kills Wi-Fi roaming failures and delivers the ultra-low latency (URLLC) that a modern factory or warehouse dedicated enterprise network demands.

Let's talk about the biggest connectivity problem in modern industry: Wi-Fi. It's a technology that was designed for laptops in an office, and we're trying to force it to run mission-critical, high-speed robots on a factory floor. It's no wonder it's failing.

You've seen the "stuck AGV," frozen in a Wi-Fi "dead zone" or, worse, in the middle of a failed roaming handoff between two access points. It's the Achilles' heel of automation. Public 4G/5G is an option, but it's not your network. You don't control the latency, and security is a concern.

So, what's the "pro" solution? You build your own dedicated enterprise network. You build a private 5g network. But this is where everyone gets stuck. You've built the network. How does your PLC, your CNC, or your AGV connect to it? They don't have a 5G SIM card slot.

They need a private 5g edge router. This one device is the missing link, the physical "on-ramp" that makes your private network usable.

First, why go to the trouble of a private 5g network? Because it gives you what no other network can: total control.

1. Guaranteed Performance: This is your network. There's no public traffic. You can engineer it for the ultra-low latency (URLLC) and high reliability (99.999%) that industrial control requires.
2. Total Security: It's "air-gapped." Your private 5g edge router data never has to touch the public internet. It's the ultimate in ot security.

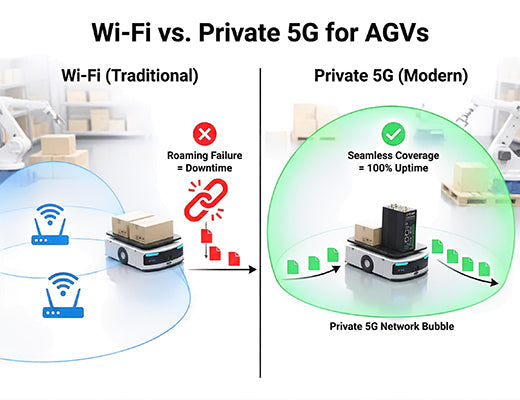

3. Seamless Coverage: It's one network, inside and out. Your AGV (with its onboard cellular edge router) can drive from the warehouse, across the yard, and into the shipping dock without a single handoff or roaming event. It's one, seamless bubble of connectivity.

This is the future of industrial wireless. A private 5g network is the "Wi-Fi killer" for critical operations. And the private 5g edge router is the device that makes it work.

A private 5g network is made of two parts: the "Core" and the "RAN" (the radio base stations), which create the network. But you need a third part: the User Equipment (UE). This is the device that connects to the network.

Your PLC isn't a UE. Your AGV's controller isn't a UE. They need a translator.

The private 5g edge router is the industrial UE. It is the on-ramp. Its job is to:

1. Connect to the Machine: It speaks the factory's languages, connecting to the PLC/AGV controller via Ethernet, RS485 (Modbus), or CAN bus. This is its industrial edge router function.
2. Connect to the Private Network: It uses its 5G modem and a private SIM card to make an ironclad connection to your internal private 5g network.
3. Act as the Secure Bridge: It securely and reliably routes traffic between the machine and your factory's central server (e.g., the AGV fleet manager).

This edge router is the physical device that finally solves the agv connectivity problem. You mount a rugged industrial edge router on your AGV, and it never drops its connection again.

You can't just use a consumer 5G hotspot. A private 5g edge router for an industrial environment must be a specialized, rugged device.

This is non-negotiable. If this edge router is riding on a vibrating AGV or in a hot control cabinet, it must be hardened.

• Rugged: Metal case, DIN-rail/wall mount, and rated for shock and vibration (e.g., E-Mark certified for vehicle use).
• Wide-Temp: Built with industrial components rated for -25°C to +70°C. A consumer router will cook itself.
• Reliable Storage: Uses eMMC flash, not a corruptible SD card.
• Industrial Power: Takes wide-voltage 9-36V DC input, not a flimsy USB plug.

Not all 5G is the same. To get the low-latency (URLLC) benefits of your private 5g network, your edge router needs a modern modem. A device like the Add One Product: R5020 Lite is ideal because it supports 5G Release 16, which includes major enhancements for industrial applications.

This edge router isn't just passing IP packets. It's often your only edge router on the machine. It needs to be "smart."

• Protocol Support: It should be a true edge computing gateway that can speak Modbus to a sensor or CAN bus to a vehicle controller, like the EG5120 .
• Edge Compute: It needs an open OS (like Debian) and Docker support so you can run local analytics or filtering apps right on the edge router itself.

You're going to have hundreds of these edge router devices. You need a "control tower" to manage your fleet of UEs. A platform like RCMS (which can be privately hosted on your own server) gives you:

• ZTP (Zero-Touch Provisioning): Auto-configure every new edge router that joins your private network.
• Fleet Monitoring: See the status, signal strength, and health of every edge router on your factory map.
• OTA Updates: Push security patches to your entire edge router fleet from one dashboard.

A private 5g network is the ultimate connectivity solution for a modern dedicated enterprise network. It provides the reliability and performance that Wi-Fi can't.

But that network is just "potential" until you connect your machines to it.

The private 5g edge router is the device that unlocks that potential. It's the rugged, secure, and intelligent "on-ramp" that gets your PLCs, CNCs, and AGVs onto the wireless superhighway you've built. A robust industrial edge router is the essential, physical key to your private 5G strategy.
