Smart Agriculture: Using LoRaWAN Gateways for Large-Scale Farm Monitoring

Connectivity is the biggest barrier to Smart Agriculture. Wi-Fi doesn't reach the back 40 acres, and cellular per-sensor plans are too expensive. This guide explains how a LoRaWAN gateway solves the "Rural Connectivity Gap." We explore three killer use cases: precision irrigation (soil moisture), livestock tracking, and tank level monitoring. We also provide a practical deployment guide for installing solar-powered gateways in remote fields, ensuring that your farm data flows reliably from the dirt to the cloud.

Farming is a high-stakes gamble against the weather, pests, and market prices. To win, modern farmers need data. They need to know the exact moisture level of the soil, the location of the herd, and the water level in the irrigation tanks.

But getting that data is hard. Farms are vast, and Wi-Fi signals die after 100 meters.

This is why the LoRaWAN gateway has become the backbone of the AgTech revolution.

Unlike Wi-Fi (short range) or Cellular (expensive per node), a LoRaWAN gateway offers the perfect balance: it covers massive distances (10km+) and listens to thousands of low-power sensors that can run for years on a single battery. This guide shows you how to deploy this technology to transform a traditional farm into a Smart Farm.

Water is a farmer's biggest expense. "Guessing" when to water leads to waste.

• The Solution: Bury soil moisture sensors at different root depths across the field.
• The Connectivity: These sensors transmit data every hour to a central LoRaWAN gateway.
• The ROI: If the sensors show the soil is still wet, the farmer delays irrigation by two days. This data-driven decision, enabled by the LoRaWAN gateway, can save millions of gallons of water per season.

Losing a calf or having a herd wander off property is a financial disaster.

• The Solution: GPS-enabled LoRaWAN collars or ear tags.
• The Connectivity: The tags ping their location to the LoRaWAN gateway every 15 minutes.
• The ROI: If an animal stops moving (injury) or crosses a geofence (theft), the system alerts the rancher immediately. A single saved animal often pays for the entire gateway infrastructure.

Driving 20 miles just to check if a diesel tank is full or a gate is closed is a waste of fuel and labor.

• The Solution: Ultrasonic level sensors and magnetic reed switches.
• The Connectivity: The LoRaWAN gateway aggregates this status data.
• The ROI: The rancher checks the dashboard from the kitchen. They only send a truck when the tank is actually low. Efficiency skyrockets.

Deploying a LoRaWAN gateway on a farm is different from an office. You have no power outlets and no Ethernet cables in a cornfield.

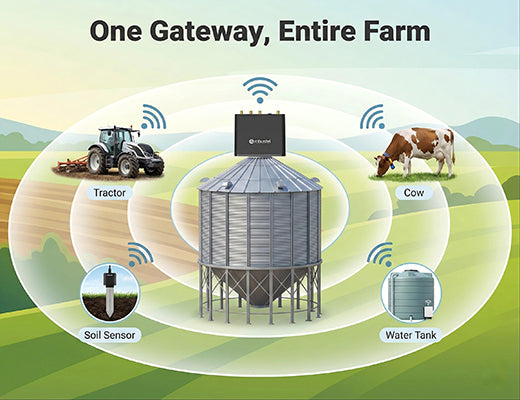

Farms are flat, but crops block signals. To maximize range, you must mount the LoRaWAN gateway antenna high above the canopy.

• Strategy: Use existing infrastructure. Mount the gateway on top of a grain silo, a water tower, or a windmill. A height of 20-30 meters can easily achieve 15km of coverage.

Since the LoRaWAN gateway is likely miles from the nearest outlet, you need solar.

• The Kit: A 50W solar panel + a 50Ah battery + an industrial charge controller.
• The Gateway: Use a gateway with Wide Voltage DC Input (like the Robustel R3000 LG). Connect it directly to the battery bank. This creates a "set and forget" self-sustaining node.

The gateway collects sensor data, but how does it get to the internet?

• The Solution:Cellular Backhaul. An industrial LoRaWAN gateway with an integrated 4G/LTE modem sends the aggregated data to the cloud. You only pay for one SIM card for the gateway, rather than one for every sensor.

A LoRaWAN gateway is the digital equivalent of a farmhand who never sleeps. It stands watch over thousands of acres, checking the soil, watching the cows, and monitoring the water, 24/7/365.

By investing in rugged, outdoor-rated infrastructure, you enable a level of precision that was previously impossible. In an industry with razor-thin margins, that efficiency is the difference between a good harvest and a great one.
