LoRaWAN Gateway Capacity: How Many Sensors Can One Gateway Handle?

One of the most common questions in IoT is: "How many sensors can I connect to a single LoRaWAN gateway?" The theoretical answer is millions. The practical answer is complicated. This guide breaks down the math of network capacity. We explain how the "ALOHA" protocol works, why packet collisions occur, and how factors like data transmission frequency (Duty Cycle) and payload size determine the real-world limit of your LoRaWAN gateway. We provide a framework for calculating your gateway needs to ensure a scalable, collision-free network.

If you buy a Wi-Fi router, the box tells you it supports "up to 255 devices." If you buy a LoRaWAN gateway, the number is much fuzzier. Is it 1,000? 10,000? 100,000?

The answer is: "It depends on how much your sensors talk."

Unlike Wi-Fi, where devices maintain a constant connection, LoRaWAN sensors are asynchronous. They sleep, wake up, shout a message, and go back to sleep. A single LoRaWAN gateway can theoretically listen to an infinite number of sensors, provided they don't all shout at the exact same millisecond.

This guide explains the math of capacity planning so you can buy the right number of gateways for your deployment.

To understand capacity, you must understand the rules of the road. LoRaWAN uses a protocol called "Pure ALOHA."

• No Schedule: Sensors transmit whenever they want. They don't check if the air is clear first.
• The Gateway's Job: The LoRaWAN gateway is always listening.
• The Collision: If Sensor A and Sensor B transmit on the same frequency at the same time, the signals crash into each other. The LoRaWAN gateway hears noise, not data. Both packets are lost.

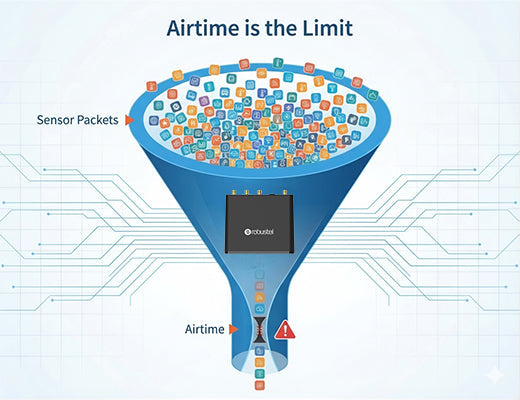

Therefore, the capacity of a LoRaWAN gateway is defined by the probability of collisions. As you add more sensors, the airwaves get crowded, and packet loss increases.

Capacity depends on three variables:

1. Frequency of Transmission: Does the sensor report every 10 minutes or every 24 hours?
2. Payload Size (Airtime): Is it sending 5 bytes (quick) or 50 bytes (slow)?
3. Spreading Factor (Speed): SF7 transmits quickly (milliseconds). SF12 transmits slowly (seconds).

• Scenario: 10,000 Water Meters.
• Behavior: Sending 1 reading per day. Short airtime (0.5 seconds).
• Result: The LoRaWAN gateway is idle 99% of the time. It can easily handle 10,000+ sensors with near-zero collisions.

• Scenario: 500 Forklift Trackers.
• Behavior: Sending GPS location every 30 seconds. Long airtime (2 seconds).
• Result: The airwaves are saturated. A single LoRaWAN gateway will struggle. You will see 20%+ packet loss. You need more gateways.

A standard industrial LoRaWAN gateway (like the Robustel R1520LG) is a powerhouse. It doesn't listen to just one signal.

• 8 Channels: It listens to 8 frequencies at once.
• 6 Spreading Factors: It listens to 6 different speeds on each frequency.
• Total: It can theoretically demodulate 48 packets simultaneously.

This hardware capability means a high-quality LoRaWAN gateway can handle a massive surge of traffic—far more than a simple single-channel radio.

How do you know when your LoRaWAN gateway is full? Network engineers use the "10% Duty Cycle" rule of thumb. If the gateway's receiver is busy more than 10-15% of the time, collision rates rise exponentially.

Signs you need another gateway:

1. Packet Loss: You expect 100 messages but only receive 80.
2. High RSSI but No Data: The LoRaWAN gateway sees strong signals but fails to decode them (CRC errors due to collisions).

The beauty of LoRaWAN is that scaling is simple. If one LoRaWAN gateway is overwhelmed, you don't need to reconfigure the sensors. You simply install a second gateway nearby.

• Load Balancing: The sensors keep broadcasting blindly.
• Traffic Split: Now, some messages are picked up by Gateway A, and others by Gateway B.
• Result: You effectively double your network capacity instantly. This is called "densification."

When sizing your network, stop counting "devices" and start counting "messages per minute."

A single LoRaWAN gateway is an incredibly capable device, easily supporting thousands of smart city sensors or hundreds of industrial trackers. But it is not magic. By modeling your traffic load and understanding the physics of collisions, you can ensure your network scales smoothly from a pilot to a city-wide deployment.
