Network Architecture Showdown: Core Differences in LTE vs 5G (EPC vs 5GC)

The performance leap from lte vs 5g extends far beyond the radio towers; it's deeply rooted in the fundamental redesign of the network's "brain" – the core network. This article provides an lte vs 5g architecture showdown, comparing the Evolved Packet Core ( EPC) of LTE with the sophisticated 5G Core ( 5GC). We'll dissect the key differences between epc vs 5gc, including the shift to a Service-Based Architecture ( SBA), Control and User Plane Separation ( CUPS), and native support for virtualization, explaining how the 5g core network enables the advanced capabilities that distinguish it from the lte core network.

When we compare lte vs 5g, discussions often center on radio speeds (eMBB) or responsiveness (URLLC). But these improvements aren't just happening over the air; they are enabled by a revolutionary overhaul of the network's central nervous system: the core network. Think of the radio towers as the network's hands and feet, interacting with devices. The core network is the brain, managing connections, routing data, enforcing policies, and enabling services.

As someone designing devices that interact deeply with these networks, understanding the profound lte vs 5g architecture differences at the core is essential. LTE's Evolved Packet Core ( EPC) was a significant step up from 3G, but 5G's completely redesigned 5G Core ( 5GC) represents a true paradigm shift. This epc vs 5gc showdown reveals why 5G can deliver on promises like network slicing and ultra-low latency in ways the lte core network simply cannot. Let's explore this fundamental lte vs 5g distinction.

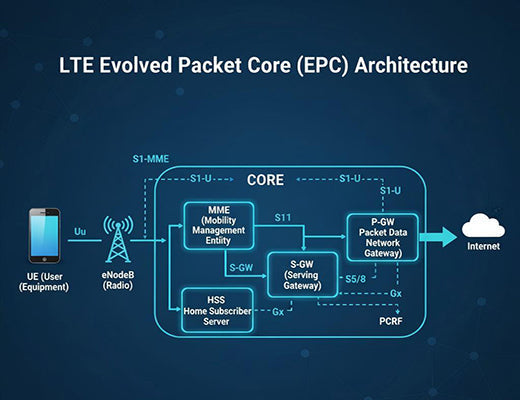

Introduced with 4G LTE, the EPC was designed primarily to provide high-speed mobile broadband efficiently. It's a robust and mature architecture, but its design reflects the era it was conceived in.

• Key Components (Simplified): The EPCconsists of several key logical nodes, often implemented as dedicated hardware appliances in early deployments:
  • MME (Mobility Management Entity): Handles device tracking, connection establishment, authentication, and handover management (the "control brain").
  • S-GW (Serving Gateway): Routes user data packets within the carrier's network (the local "traffic cop").
  • P-GW (Packet Data Network Gateway): Connects the carrier's network to the external internet or enterprise networks, allocates IP addresses, and enforces policies (the "border patrol").
  • HSS (Home Subscriber Server): A central database containing user subscription information and authentication credentials.
• Architecture Style: Primarily a node-based, hierarchical architecture. Communication between nodes uses defined point-to-point interfaces and protocols (like S1-MME, S1-U, S6a).
• Strengths: Proven reliability, global standardization, well-understood operations. The foundation of today's mobile internet.
• Limitations:
  • Less Flexible: Adding new services often requires upgrading multiple nodes. Traffic typically has to flow through centralized P-GWs, which can be inefficient for edge applications.
  • Scalability Challenges: Scaling specific functions (like control vs data plane) independently can be difficult with monolithic nodes.
  • Limited Support for Diverse Services: While adapted for IoT (e.g., CIoT optimizations), the EPC wasn't inherently designed for the extreme diversity of 5G use cases (URLLC, mMTC). The limitations of the lte core network become apparent here.

The EPC has been a workhorse, but its architecture limits the full potential envisioned for the next generation, driving the need for the 5GC in the lte vs 5g evolution.

• What it is: Instead of monolithic nodes with point-to-point interfaces, the 5GC breaks down core network functionalities into granular Network Functions (NFs) that operate as microservices. These NFs (like AMF for access/mobility, SMF for session management, UPF for user plane) expose their capabilities via standardized APIs.
• How it Works: NFs register themselves and discover other NFs via a central repository (NRF - Network Repository Function). They communicate using simple, web-based request/response mechanisms (often RESTful APIs over HTTP/2).
• Benefits: Extreme flexibility (add/remove/update functions independently), faster service creation, promotes vendor interoperability, better resource utilization. This microservices approach is a core epc vs 5gc difference.

• What it is: 5GC is designed from the ground up to run on virtualized infrastructure (Network Functions Virtualization - NFV) using standard IT hardware (servers, storage, switches). Software-Defined Networking ( SDN) principles are used to manage the underlying network fabric dynamically.
• Benefits: Reduces reliance on expensive proprietary hardware, enables rapid scaling up or down based on demand, allows network functions to be deployed flexibly (centralized data center, regional edge, or even on-premise for private 5g). This cloud-native approach is fundamental to the 5g core network design, contrasting sharply with the traditional lte core network.

• What it is: While introduced optionally in later EPC versions, CUPS is native and mandatory in the 5GC. It cleanly separates the control signaling (managed by functions like AMF/SMF) from the user data path (handled by the UPF - User Plane Function).
• Benefits: Allows the UPF (which handles the heavy data traffic) to be deployed independently and closer to the network edge (e.g., for Multi-access Edge Computing - MEC). This dramatically reduces latency for edge applications and optimizes traffic routing, a key advantage in the lte vs 5g architecture comparison.

• What it is: The 5GC architecture (particularly SBA and virtualization) inherently supports end-to-end network slicing. This allows carriers to create multiple virtual networks on a single physical infrastructure, each slice customized with specific QoS, security, and performance characteristics for different services (e.g., a low-latency URLLC slice, a high-bandwidth eMBB slice, a massive IoT mMTC slice).
• Benefits: Enables carriers to offer tailored services and guaranteed SLAs for diverse enterprise needs, a capability largely absent in the standard EPC. This is a major selling point of 5g vs lte.

Let's summarize the critical distinctions impacting the lte vs 5g core capabilities:

This table highlights that the epc vs 5gc difference isn't just incremental; it's a fundamental shift in network design philosophy, directly impacting the capabilities delivered by lte vs 5g.

How do these architectural differences translate to real-world benefits of 5g vs lte?

• Lower Latency: CUPS and native support for MEC allow user data processing to happen much closer to the device, drastically reducing round-trip time for latency-sensitive applications. The lte core network typically forces traffic back to a central P-GW.
• Higher Throughput: Decoupling the user plane (UPF) allows it to be scaled independently and optimized purely for high-speed data forwarding, contributing to 5G's higher bandwidth capabilities compared to the often-integrated S-GW/P-GW functions in the EPC.
• Network Slicing: Enables guaranteed QoS and isolation for diverse services (critical control vs general broadband vs IoT) on the same infrastructure, something the lte core network cannot easily provide end-to-end.
• Faster Service Innovation: The SBA allows carriers and enterprises to introduce new network functions and services much more quickly by developing and deploying microservices, rather than upgrading large, monolithic nodes as often required in the EPC. This accelerates the pace of innovation in the lte vs 5g ecosystem.

Understanding the core network difference is key to understanding the two main 5G deployment modes:

• 5G NSA (Non-Standalone): The initial deployment mode for many carriers. It uses the 5G Radio Access Network (NR) but relies on the existing LTE EPC for core network functions. It delivers higher speeds (eMBB) but cannot support advanced features like URLLC or network slicing that depend on the 5GC.
• 5G SA (Standalone): Uses both the 5G Radio (NR) and the new 5G Core (5GC). This mode unlocks the full potential of 5G, including URLLC, mMTC, and network slicing.

The global transition from NSA to SA is ongoing and crucial for realizing the complete vision of 5g vs lte.

The showdown between the lte core network ( EPC) and the 5g core network ( 5GC) reveals a fundamental architectural evolution. While the EPC provided a stable foundation for the mobile broadband era, its limitations become clear when faced with the diverse and demanding requirements of 5G. The 5GC, with its cloud-native, Service-Based Architecture, mandatory CUPS, and native support for virtualization and slicing, is the true engine enabling the transformative low latency, high bandwidth, and massive connectivity promised by 5G. Understanding this core lte vs 5g architecture difference ( epc vs 5gc) is key to appreciating why 5G is not just faster LTE, but a truly new generation of network technology.
