LoRaWAN Gateway with Embedded LNS: Running Locally

The standard LoRaWAN architecture relies on the cloud. The gateway is a "dumb pipe" that forwards data to a remote server. But what if you have no internet? Or what if your security policy forbids cloud connection? This guide explores the "Embedded LNS" architecture. We explain how a powerful industrial LoRaWAN gateway can run the Network Server software locally. This turns the gateway into a standalone "Brain" that decodes sensors, processes logic, and outputs data directly to local SCADA systems via Modbus or MQTT, creating a completely offline, secure ecosystem.

In 90% of IoT deployments, the "Cloud" is the destination. Sensors send data to the LoRaWAN gateway, which shoots it up to AWS or The Things Network.

But for the other 10%—the mines deep underground, the nuclear power plants, and the high-security factories—the Cloud is not an option.

In these environments, you need a "Local" architecture. You need a LoRaWAN gateway that can think for itself.

This is achieved using an Embedded Network Server (LNS). Instead of just forwarding raw encrypted radio packets, the gateway decrypts, processes, and acts on the data locally. This guide explains how to turn your gateway into a standalone edge computer.

Normally, the "Network Server" (the software that manages device keys, deduplication, and decoding) lives on a server in a data center.

With an Embedded LNS, this software is installed directly inside the LoRaWAN gateway.

• Standard Gateway: Listens -> Forwards to Cloud.
• Embedded Gateway: Listens -> Decrypts -> Decodes -> Outputs JSON/Modbus.

The LoRaWAN gateway becomes the entire network. It holds the AppKeys. It manages the sensors. It creates a self-contained universe that continues to function even if the fiber line to the outside world is cut.

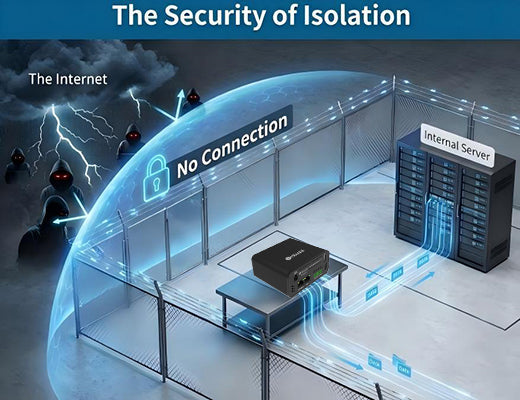

For a defense contractor or a water treatment plant, sending data to a public cloud is a security risk. By using an Embedded LNS, the LoRaWAN gateway creates a physical Air Gap. Sensor data travels from the machine to the gateway to the local SCADA server via a secure LAN. It never touches the internet.

If a vibration sensor detects a pump failure, you want to shut it down now. sending data to the cloud and waiting for a command back can take seconds. An industrial LoRaWAN gateway processing data locally can trigger a "Stop" command via its digital output or Modbus in milliseconds.

In an open-pit mine, 4G coverage is spotty. A cloud-dependent gateway would drop data constantly. An Embedded LNS LoRaWAN gateway works perfectly with zero internet, storing data internally until it can be physically retrieved or uploaded to a local server.

The biggest advantage of the Embedded LNS is translation. Most industrial controllers (PLCs) speak Modbus, not LoRaWAN JSON.

A Robustel LoRaWAN gateway with embedded smarts acts as a translator:

1. Input: Wireless LoRa packet from a Temp Sensor (Payload: 0x1A).
2. Process: Gateway decodes 0x1A to "26°C".
3. Map: Gateway maps "26" to Modbus Register 40001.
4. Output: The factory PLC polls the LoRaWAN gateway via Modbus TCP and reads 40001.

To the PLC, the wireless sensor looks exactly like a wired sensor. This allows you to retrofit modern IoT into 30-year-old control systems without writing a single line of code.

Robustel gateways (like the R3000 LG) use RobustOS, a Linux-based operating system that supports "Apps."

1. Install the App: Log in to the gateway GUI. Go to the App Center and install the "LoRaWAN" application (which includes the embedded server).
2. Add Applications: Create a local "Application" and generate an AppEUI.
3. Register Sensors: Input the DevEUI and AppKey of your sensors directly into the LoRaWAN gateway interface.
4. Set Data Destination: Choose "Data Output" to send decoded data to the internal MQTT broker or map it to the Modbus Slave app.

The cloud is powerful, but the edge is fast and secure. By deploying a LoRaWAN gateway with an Embedded Network Server, you gain independence. You remove the reliance on internet providers and cloud subscriptions.

For industrial automation and critical infrastructure, this "Edge Computing" approach is the most robust way to build a network. You own the hardware, you own the software, and you own the data—completely.
