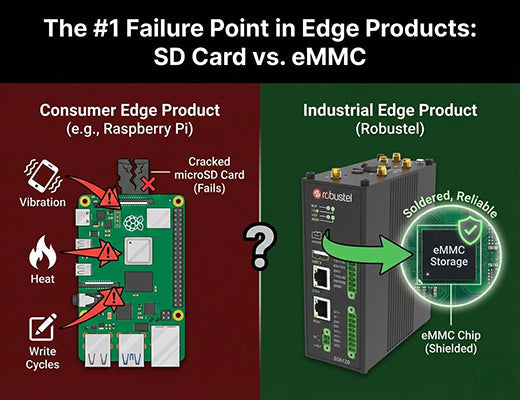

The "SD Card vs. eMMC" Debate: A Reliability Guide for Edge Products

In the sd card vs emmc debate, the choice for industrial edge products is not a choice at all—it's a requirement. This guide explains why the microSD card, common in consumer and DIY edge products (like Raspberry Pi), is the #1 point of failure in an industrial setting. We'll compare its catastrophic weaknesses in vibration, temperature, and write-cycles to the robust, soldered-on eMMC storage used in all professional edge products, proving why eMMC is the only reliable option.

It’s 3 AM. Your phone rings. The entire production line is down. You check the dashboard, and your critical industrial edge product—the one collecting all the PLC data—is offline.

You dispatch a technician on a 4-hour drive. They arrive, plug in a monitor, and see the dreaded error: Kernel panic - VFS: Unable to mount root fs.

The microSD card is corrupted. Again.

As an engineer, I can tell you that this one, tiny, $10 component is the single greatest point of failure in the world of "cheap" edge products. If you are considering any edge product that boots its OS from a removable SD card (I'm looking at you, Raspberry Pi), you are not designing a solution; you are scheduling a failure. Let's settle the sd card vs emmc debate for good.

A microSD card is a "managed NAND" product, but it's a consumer-grade one. It's brilliantly engineered for one job: storing large, sequential files (like photos and videos) from a device that is handled gently and turned off frequently.

It was never designed for the hostile, 24/7/365 environment of an industrial edge product.

When you put a "consumer" SD card in a "rugged" environment, it will fail. Here’s why:

• The Problem: Your edge product is mounted in a control cabinet next to a 50HP motor, a VFD, or on a truck. It is always vibrating.
• The SD Card: It's a removable, friction-fit component. Those tiny gold contacts are just pressed against the reader pins.
• The Result: Micro-vibrations will, over time, cause fretting corrosion and micro-disconnects. The OS will try to read a critical file, the connection will blip, and your entire edge product's file system will be corrupted. This is a guaranteed, physical failure point.

This is the "insider" killer. A camera writes big files, one at a time. An edge product's Linux OS writes tiny files (logs, configs, temp files) thousands of times a day.

• The Problem: This "high-frequency, low-size" write pattern is the absolute worst-case scenario for consumer-grade flash memory.
• The SD Card: It has a very simple "wear leveling" controller. It can't keep up. It will wear out a few memory blocks very quickly, leading to bad blocks and total corruption. This is a ticking time bomb.

• The Problem: Your edge product is in a metal box in the sun. The internal temperature is 70°C (158°F).
• The SD Card: A consumer card is rated for commercial temps (maybe 0°C to 60°C). At 70°C, its internal controller starts to fail, data retention plummets, and it corrupts.
• The Result: Your edge product dies every time the sun hits the box. This is unacceptable for industrial edge products.

Now, let's look at the alternative. eMMC (Embedded MultiMediaCard) is the professional, industrial standard for flash storage.

It's what's in your smartphone. It's what's in a car's infotainment system. And it's what must be in your industrial edge product.

This is the key. eMMC is not a card; it's a BGA chip. It is soldered directly to the main board of the edge product. It is physically one with the device. You cannot shake it loose. It is 100% vibration-proof. This is the hallmark of a true rugged edge product.

An eMMC chip has a sophisticated internal controller, just like a full-blown Solid-State Drive (SSD).

• It manages advanced wear-leveling across all its memory cells.
• It has bad block management to automatically retire failing cells.
• It has a much higher endurance (P/E cycles) than a consumer SD card. This controller is designed for the high-frequency, 24/7 read/write load of an operating system. This is why eMMC is the only choice for reliable edge products reliability.

The eMMC chips used in industrial edge products (like all Robustel devices) are industrial-grade. They are certified to operate reliably at the same extreme temperatures as the rest of the edge product (-40°C to +85°C).

This table makes the choice for your next edge product clear.

Feature	microSD Card (Consumer)	eMMC Storage (Industrial Edge Product )
Connection	Friction-fit (Removable)	Soldered to Main Board
Vibration Resistance	Extremely Poor	Excellent
Write Endurance (OS)	Very Low (Prone to corruption)	Very High (Designed for 24/7 OS)
Controller	Simple / Basic	Advanced (Wear-leveling, ECC)
Temp Rating	Commercial (e.g., 0°C to 60°C)	Industrial (e.g., -40°C to +85°C)
Lifespan (24/7 OS)	6-12 Months (If you're lucky)	10+ Years
Ideal Use Case	Cameras, Prototyping	All industrial edge products
Found In...	Raspberry Pi, Cheap edge products	Robustel Edge Products  (EG/R-Series)

The edge products TCO argument is simple.

• The "Saving": You "save" $50 by using a Raspberry Pi edge product instead of a professional edge product.
• The Cost (6 months later):The SD card fails. The line goes down.
  • Downtime Cost: 8 hours x $10,000/hr = $80,000
  • "Truck Roll" Cost: 1 engineer x 1 day = $1,500
• The Result: Your "$50 saving" just cost you $81,500.

A professional industrial edge product (like the EG5100 or R5120 ) with eMMC doesn't just have a lower TCO; it's the only financially sane option.

The sd card vs emmc debate is over. An SD card is a consumer part and a guaranteed point of failure. Any "industrial" edge product that uses a removable SD card for its main OS is a toy, not a tool.

A true rugged edge product is defined by its reliability. That reliability starts with soldered-on eMMC storage. When you're choosing your next edge products, don't ask what's "cheapest." Ask what's "reliable." Ask if it uses eMMC.
