Industrial I/O: Why It Defines Rugged Edge Products (RS485)

When you're choosing industrial edge products, the most important features aren't always the CPU or 5G. It's the boring, green terminal blocks: the Industrial I/O. This guide explains why RS485 (for Modbus) and DI/DO (Digital Input/Output) are the non-negotiable ports that define a trueindustrial edge product. An edge product without these ports is just an IT router in a metal box; an edge product with them is an all-in-one "translator" that can actually connect to your factory.

In the world of edge products, it's easy to get mesmerized by the "big" specs: the Quad-Core CPU, the 5G modem, the AI NPU. But as any field engineer will tell you, the most valuable parts of an industrial edge product are often the simplest: the little green "terminal block" connectors.

This is your Industrial I/O (Input/Output).

If you buy an "edge device" that only has Ethernet ports, you haven't bought an industrial edge product. You've bought an IT router. The entire point of an edge product in a factory or remote site is to connect to the "things". And those "things"—your PLCs, your sensors, your pumps, your meters—don't have Ethernet ports.

They have RS485. They have 24V digital outputs. A true industrial edge product must speak this native language.

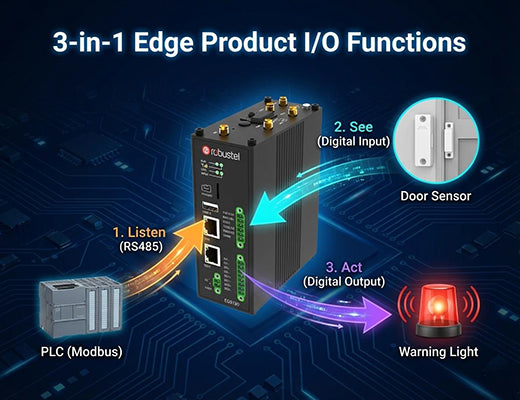

Industrial I/O refers to the specific, hardened physical ports on an edge product that allow it to communicate with and monitor industrial machinery. The three most important types are RS485, DI (Digital Input), and DO (Digital Output).

Let's break down what they do and why your edge product is useless without them.

This is the single most important port on any industrial edge product.

• What it is:RS485 is a rugged, two-wire serial communication standard. It's the physical layer for the most common industrial protocol on earth: Modbus RTU.
• Why your edge product needs it: Your PLCs, VFDs (Variable Frequency Drives), power meters, and CNC machines all have RS485 ports. An edge product without an RS485 port cannot talk to them.
• The Edge Product Job: A smart edge product (which is also an IoT Gateway) uses its RS485 port to act as a Modbus Master. It polls these devices for data, translates that data to MQTT, and sends it to the cloud. Without this port, your edge product is deaf and mute in the factory.

• What it is: A Digital Input (DI) port is a simple sensor. It's designed to read a basic on/off, high/low voltage signal.
• Why your edge product needs it: This is the most reliable way for your edge product to "see" the real world.
  • Connect a door sensor to a DI port to get an alert when a cabinet is opened.
  • Connect a high-level float switch from a water tank to a DI port.
  • Connect a machine's "Alarm" light to a DI.
• The Edge Product Job: The edge product instantly detects the voltage change on the DI port and sends a real-time alert (like an MQTT message or SMS) to your phone: "WARNING: High-Level Alarm at Pump Station 4!" This is simple, bulletproof monitoring.

• What it is: A Digital Output (DO) port is a simple switch. It's a relay that your edge product can open or close based on a command.
• Why your edge product needs it: This is how your edge product acts on the real world. This is the TCO-killer feature.
• The Edge Product Job:Your remote kiosk PC freezes. It's offline.
  • The Old Way: Send a $1,500 "truck roll" just to reboot it.
  • The Edge Product Way: You wire the kiosk's power through a relay controlled by the edge product's DO port. From your RCMS dashboard, you send a secure command to the industrial edge product. The edge product toggles the DO port, cuts the power to the PC, and reboots it.
  • You just saved $1,500 with a single click. This one feature makes your industrial edge product pay for itself.

This is what separates professional industrial edge products from cheap toys.

• The Problem: A factory is full of "dirty power" and electrical noise (EMI). A voltage spike on a long RS485 cable can travel into your edge product and fry its CPU.
• The Pro Solution: A true rugged edge product (like the EG5120 or EG5100 ) has galvanically isolated I/O ports.
• What this means: There is no direct electrical connection between the RS485 port and the CPU. A massive 2,500V spike on the port is stopped dead by an optical isolator. The CPU is unharmed. This is a non-negotiable feature for any edge product you deploy in a real industrial setting.

The "edge" is not a clean, air-conditioned data center. The "edge" is a hot, vibrating, electrically noisy factory cabinet.

The edge products built for this world are defined by their physical I/O. This is their "nervous system." The RS485 port is their "ear" for listening to PLCs. The DI/DO ports are their "eyes and hands" for sensing and acting on the real world. And isolation is the "immune system" that keeps them alive.

When you're choosing your next industrial edge product, don't just look at the CPU. Look at the green terminal blocks. If they're not there, or they're not isolated, you're not buying an industrial edge product—you're buying a future failure.
