Millisecond-level high-speed data acquisition: a highly reliable solution for harsh industrial scenarios

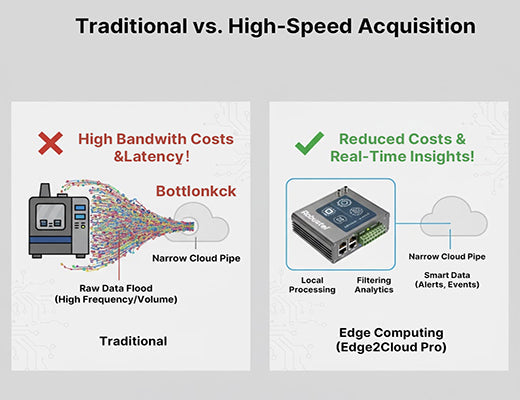

In my experience, a common misconception about IoT is that it means sending all data to the cloud. In modern industrial settings, this model is rapidly failing. Imagine a vibration sensor on a CNC machine generating 5,000 data points per second, or a high-speed bottling line updating its status every millisecond. Do you really want to send this data deluge to a cloud server thousands of miles away?

The answer is no. First, network latency won't allow it—when equipment is about to fail, you need a millisecond response, not a multi-second one. Second, the network bandwidth costs are prohibitive.

The real solution must be at the "edge"—right where the data is generated. But this creates a new challenge: How do you build a data processing stack on a small edge gateway that can rival the cloud? This is precisely why we built Edge2Cloud Pro. It's not a single tool; it's a pre-integrated, powerful software platform specifically designed for high-speed data acquisition and edge analytics.

When data velocity exceeds the limits of traditional polling, you need an entirely new architecture. Edge2Cloud Pro (Edge-to-Cloud Pro) is Robustel's edge computing middleware platform. Running on powerful industrial gateways like the EG5120, it provides a "triple-threat" stack for high-speed data processing.

• The Curse of Latency: For machine protection or real-time quality control, any delay over 100 milliseconds can be disastrous. The round-trip time to the cloud is unacceptable.
• The Bandwidth Black Hole: A single high-frequency vibration sensor can easily generate terabytes of raw data per day. Transmitting this over a cellular network is economically unfeasible.
• The Signal-to-Noise Ratio: 99% of the time, this high-speed data is "normal." What you actually need isn't all the raw data; it's the precise insight when an anomaly occurs and the aggregated trends over the long term.

Edge2Cloud Pro's magic lies in its seamless integration of three key components in a controlled, containerized environment:

1. High-Speed Ingestion: InfluxDB (Time-Series Database)
   This is Edge2Cloud Pro's core weapon for high-speed acquisition. InfluxDB is a leading open-source Time-Series Database (TSDB) built specifically for extremely high write throughput. Edge2Cloud Pro integrates it as a first-class citizen. As high-speed data streams (e.g., from Modbus TCP or MQTT) enter the EG5120 gateway, they can be configured to write directly and without delay into the local InfluxDB. This acts as a "data black box," capturing everything at millisecond resolution.
2. Real-Time Processing: Robustel Flow (Node-RED)
   The raw data is stored, but you still need to react in real-time. Robustel Flow (based on Node-RED) within Edge2Cloud Pro acts as the data stream's "control tower." It can process data streams in parallel:

• Data Aggregation: It can pull raw data from InfluxDB and calculate 1-second or 1-minute averages (AVG) and maximums (MAX) to send to the cloud.
• Anomaly Detection: It can check the incoming data stream in real-time. If a vibration value exceeds a threshold for five consecutive readings, it can immediately trigger a local alarm or action.
• Protocol Conversion: It translates data into the formats required by cloud platforms, such as MQTT JSON.

3. Local Diagnostics: Grafana (Visualization)
   When an alarm is triggered, an engineer needs to diagnose the problem. Edge2Cloud Pro also integrates Grafana. The engineer can plug a laptop into the EG5120's local network and use a Grafana dashboard to query the high-resolution raw data stored in the local InfluxDB, rewinding to the moment of failure to see the millisecond-level changes—something a remote cloud platform could never provide.

Let's look at a concrete example:

• The Challenge: A critical industrial pump, whose bearing failure would cause a full line stoppage. It needs to be monitored with a high-frequency vibration sensor (e.g., 1kHz, or 1,000 data points per second) to predict its health.
• The Edge2Cloud Pro Solution:

1. Deployment: An EG5120 gateway is installed in the pump's control cabinet. The high-frequency sensor sends data to the gateway via Modbus TCP.
2. Data Acquisition (InfluxDB): Edge2Cloud Pro configures InfluxDB to receive the 1kHz raw vibration waveform data and store it locally (e.g., retaining only the last 7 days).
3. Real-Time Analysis (Node-RED): A flow is set up in Robustel Flow:

• [Aggregate] Every second, it queries the raw data from InfluxDB and calculates the RMS (Root Mean Square) value, a key health indicator.
• [Report] It sends this 1-second RMS value to the cloud platform via MQTT for long-term trend monitoring. This dramatically reduces data volume (from 1000 points/sec to 1 point/sec).
• [Alert] It checks the RMS value in real-time. If it exceeds a preset threshold, it immediately sends an alert via Email or SMS.

4. Fault Diagnostics (Grafana): After receiving an alert, a maintenance engineer arrives on-site, connects locally, and uses Grafana to review the raw vibration waveform at the moment of the failure. This allows them to determine if it was a bearing issue, imbalance, or a loose foundation, enabling a precise repair.

High-speed data acquisition is a tough challenge in Industrial IoT. Forcing it all to the cloud is inefficient and expensive. The Edge2Cloud Pro platform, by providing a pre-integrated, high-performance data stack (especially the combination of InfluxDB and Node-RED) on an edge gateway, solves this problem perfectly. It empowers companies to tame the "data deluge" at the source, turning raw data into actionable intelligence and enabling true low-latency, low-cost, and high-reliability predictive maintenance.
