Edge2Cloud Pro Closed-Loop Industrial Process Management: Execution to Analysis

I often talk to factory managers who are frustrated by a simple, repeating problem. Their ERP system has a new production order, but executing it requires an "all-stop" manual intervention. A production supervisor has to find a PLC engineer, who then connects a laptop to the machine's control cabinet, navigates a complex HMI, and manually types in new setpoints for temperature, pressure, and speed. This process is slow, prone to human error, and completely disconnected from the digital systems that are supposed to be running the business.

What if your production manager could change the batch recipe on 10 machines across three factories from a single, central dashboard? What if a new "product type" could be deployed with a single click? This isn't a futuristic vision; it's a practical application of edge computing. True industrial process management isn't just about monitoring; it's about control. And that control needs to be as dynamic as your business.

The fundamental challenge in process management is a "language barrier." Your central IT systems and cloud platforms speak in simple, human-readable JSON messages (e.g., {"recipe_id": "Recipe_B"}). Your machines and PLCs speak in low-level industrial protocols like Modbus or OPC-UA (e.g., Write 50 to register 40100, Write 200 to register 40101...).

E2C Pro, running on an edge gateway like the EG5120, is the perfect translator that bridges this divide.

It doesn't just pass data; it acts on it. Using the intuitive, low-code environment of Node-RED (which we call Robustel Flow), you can build logic that receives a single, simple command and executes a complex sequence of actions at the PLC level.

This is the most powerful application. Instead of storing complex recipes on the PLC itself, you can manage them centrally.

• How it works: A central platform (like Robustel's RCMS or your own) sends an MQTT message to the E2C Pro gateway, such as {"job_id": 734, "recipe_name": "Premium_Grade"}.
• E2C Pro Logic:The Node-RED flow on the gateway receives this. It has a "recipe book" (e.g., a simple lookup table in its logic) that says "Premium_Grade" means:
  • Temperature_Setpoint = 150 C (Write 150 to Modbus Register 200)
  • Conveyor_Speed = 5 m/s (Write 5 to Modbus Register 201)
  • Pressure = 2.5 bar (Write 25 to Modbus Register 202)
• The Benefit: It executes this sequence perfectly every time. Your PLC engineer no longer needs to be involved in product changeovers. You can update recipes centrally and deploy them instantly, ensuring 100% consistency and eliminating errors.

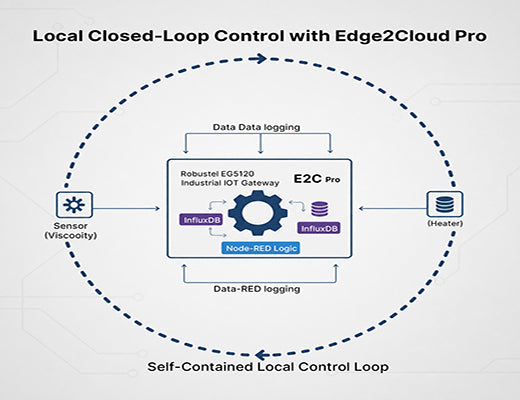

E2C Pro can also manage processes autonomously at the edge, without cloud intervention.

• How it works: This combines E2C Pro's data acquisition and control logic. A Node-RED flow reads data from a sensor (via Modbus) and stores it in the local InfluxDB. A parallel flow then analyzes this data.
• E2C Pro Logic: For example: "Continuously read the product's viscosity from sensor X. If the viscosity is above 10.5, send a command to the PLC to increase the temperature setpoint by +0.5 degrees. If it is below 9.5, decrease it by -0.5 degrees."
• The Benefit: This is a true edge-based, closed-loop control system. It provides real-time quality control and process optimization that is far more responsive than a cloud-based system and more intelligent than a basic PLC.

Process changes don't always have to come from the cloud. E2C Pro can also provide a simple, web-based HMI for on-site operators.

• How it works: Using the Node-RED Dashboard nodes, you can create a simple user interface that runs on the gateway itself, accessible via a tablet or local PC.
• E2C Pro Logic: The dashboard features simple buttons like "Start Batch: Product A," "Start Batch: Product B," or "Run Cleaning Cycle."
• The Benefit: When an operator presses a button, it triggers the same robust Node-RED recipe logic on the gateway. This empowers the local operator to manage complex process changes safely and easily, without needing a full-blown, expensive SCADA system or complex PLC HMI programming.

Industrial process management in the 21st century must be flexible, data-driven, and remote. Relying on manual, on-site PLC intervention is no longer competitive. E2C Pro transforms your edge gateway from a simple data transmitter into a smart, two-way process controller. It separates the "what to do" (the business decision from the cloud) from the "how to do it" (the machine-level logic at the edge), giving you the convenience to manage your operations from anywhere and the efficiency to react in an instant.
