Case Study: Smart Water Management Using an IoT Gateway for Pump Monitoring

For water utilities, an unmonitored pump station isn't just a cost; it's a public health risk. This case study details how a municipal utility used a Robustel cellular IoT Gateway to solve its biggest remote pump monitoring challenge. By deploying a rugged industrial IoT gateway with Dual-SIM 4G and Modbus capabilities, they eliminated 90% of costly "truck rolls," prevented catastrophic overflow failures, and transitioned from a reactive, manual inspection model to a proactive, data-driven smart water management strategy.

If you work in water or wastewater management, you know the sound that keeps you up at night: silence. The silence of a remote lift station pump that should be running. The silence before your phone rings at 3 AM with a citizen reporting a sewage overflow.

This is the central crisis of smart water management. Your most critical assets are scattered across miles of remote, hard-to-reach locations. They are "offline" by default. You're forced to operate in the dark, relying on two terrible strategies:

1. Expensive Manual Checks: Sending a technician in a truck on a 4-hour loop just to "eyeball" 20 different pump stations and see if a red light is on.
2. Reactive Failure Response: Waiting for the catastrophic failure to happen (a flood, an overflow, a service outage) and then scrambling to fix it.

This isn't just inefficient; it's expensive and dangerous. We worked with a municipal utility that was trapped in this cycle. This is the story of how a single, rugged industrial IoT gateway transformed their entire operation.

A regional water utility was responsible for 120 remote pump and lift stations. Their TCO for "Operations & Maintenance" was skyrocketing.

• The Cost: They were spending over $250,000 a year just on the fuel and labor for "preventive" manual inspections, which often found nothing.
• The Risk: In the last year, they had three major overflow events caused by pump clogs and controller failures. The fines and clean-up costs exceeded $750,000, not to mention the PR nightmare.
• The Blocker: These sites had no internet. They were concrete bunkers in fields or by the roadside. Running wired internet was impossible. They needed a reliable, industrial-grade remote pump monitoring solution that could survive the harsh environment.

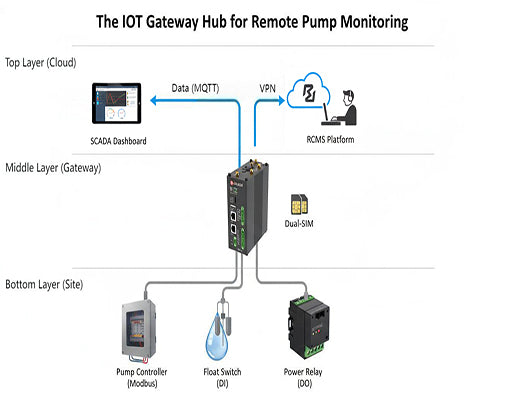

The utility launched a new smart water management initiative. The goal: get 100% visibility on all 120 stations. The chosen solution: a Robustel R1520 industrial IoT gateway installed in each pump station's control cabinet.

This single IoT Gateway was the perfect tool. It wasn't just a "modem"; it was a rugged industrial computer designed for this exact job.

First, the IoT Gateway had to "talk" to the pump.

• Modbus Polling: The IoT Gateway was connected to the pump controller's RS485 port. Using its built-in software, it was configured to act as a Modbus Master, polling the controller every 30 seconds for critical data: Motor_Amps, Pump_Runtime_Hours, Flow_Rate, Pump_Status.
• Direct I/O: The IoT Gateway's Digital Input (DI) port was wired directly to the critical "High-Level Float Switch." This meant if the water reached a crisis level, the IoT Gateway would know instantly, even if the main pump controller had failed.

This IoT Gateway had to be more reliable than the pump itself.

• The Problem: These remote sites had spotty cellular coverage. A single carrier (like AT&T) might be strong at one site but weak at another.
• The Solution: Each IoT Gateway was equipped with Dual SIMs (e.g., AT&T and Verizon). The gateway's "Smart Roaming" feature constantly monitors the connection. If the primary carrier's signal drops, the IoT Gatewayautomatically fails over to the backup carrier in seconds. This ensured the data connection was virtually 100% available.

This was the feature that delivered the single biggest ROI. The entire fleet of 120 IoT Gateway devices was managed by RCMS , our cloud platform.

• The Scenario: At 3 AM, an alert fires. The pump monitoring iot gateway at Station 77 reports that the PLC is "unresponsive."
• The Old Way: Wake up an on-call engineer, pay them 4 hours of overtime, and send them on a 1-hour drive.
• The RCMS Way: The operator logs into RCMS from their home laptop. They see the IoT Gateway is online (the 4G connection is fine), but the PLC behind it is frozen. They navigate to the device's control panel and use a connected Robustel smart relay to remotely reboot the PLC's power supply.
• The Result: The PLC comes back online. The problem is solved in 5 minutes. The truck roll is eliminated. The engineer goes back to sleep.

Deploying a true IoT Gateway platform for their smart water management initiative yielded immediate, massive results.

• 90% Reduction in "Truck Rolls": Manual weekly inspections were completely eliminated. 9 out of 10 "failure" alerts were diagnosed or resolved remotely via RCMS.
• Zero Catastrophic Overflow Events: In the first year, the DI-connected high-level alarms on the IoT Gateway fleet caught 5 potential overflow events, allowing operators to dispatch crews before a single drop was spilled.
• Predictive Maintenance: By tracking Motor_Amps from the IoT Gateway, they could see when a pump was starting to clog (amps go up). They shifted from "fix it when it breaks" to "clean it before it breaks," saving a fortune on emergency motor replacements.
• TCO & ROI: The utility calculated that the entire IoT Gateway project paid for itself in under 6 months from the savings in truck rolls and avoided fines alone.

In smart water management, the IoT Gateway is not an IT accessory. It is a core piece of critical infrastructure, just as important as the pump or the pipe.

It's the "nervous system" that connects your remote assets to your central brain. This case study proves that a professional industrial iot gateway solution, combining rugged hardware (with Dual-SIMs and Modbus) and a powerful remote management platform (RCMS), is the only way to build a reliable, secure, and profitable modern utility network. Your IoT Gateway is your first line of defense against downtime.
