7-in-1 Industrial Modbus Sensor
Model: S6000U
Product Overview
The Robustel S6000U is a compact industrial sensor that integrates seven critical monitoring parameters into a single device. Designed for seamless integration into new or existing industrial systems such as PLC, it provides reliable, real-time data for environmental control, safety monitoring, and predictive maintenance.
- All-in-One Environmental & Safety Monitoring
Integrates seven critical sensors—temperature, humidity, barometric pressure, ambient light, vibration, noise, and Time-of-Flight (ToF) distance—into a single compact device. This reduces complexity, lowers installation costs, and provides a comprehensive view of asset conditions.
- Plug-and-Play Industrial Integration
Features a native RS-485 Modbus RTU interface for direct, reliable, out-of-the-box connection to PLCs, HMIs, and SCADA systems.
- Actionable Data & Proactive Alarms
Features configurable parameters and Modbus addresses for flexible integration into any monitoring setup. Pre-configured alarm thresholds for key metrics (like vibration and temperature) allow the sensor to provide early risk detection and proactive safety alerts.
- Compact & Rugged Design
Housed in a compact, lightweight, UL94 V-0 fire-retardant enclosure with a simple 3M adhesive installation for deployment anywhere.

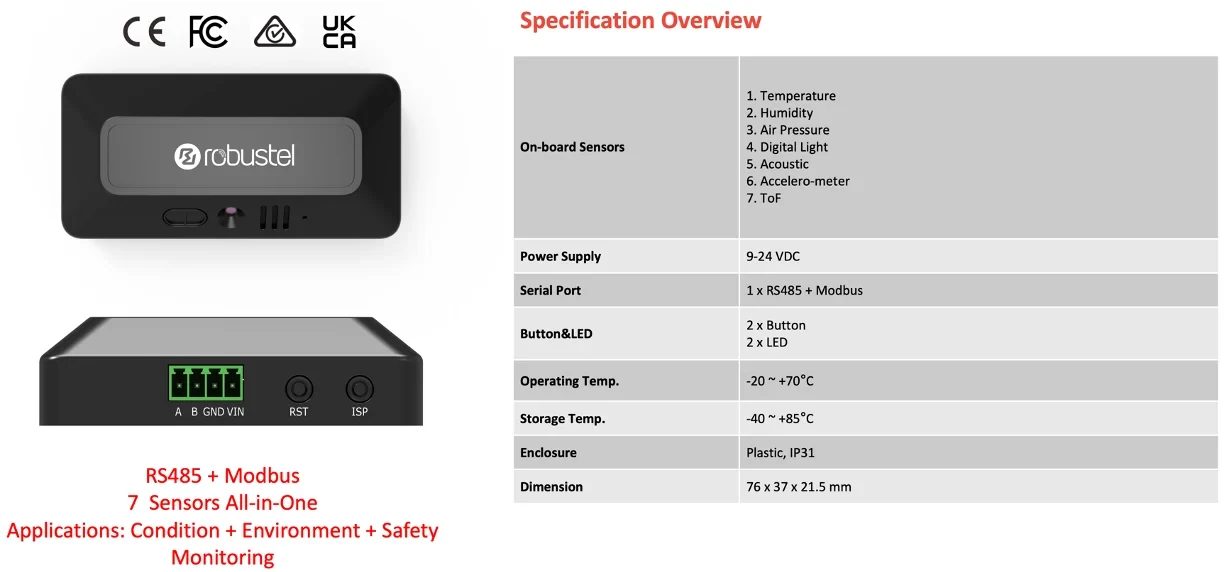

Specifications
On-board Sensors
|
Sensor |
Range / Sensitivity |
Accuracy |
Resolution |
|
Temperature |
-20°C to +70°C |
±1.5°C |
14 bit |
|
Humidity |
5% to 95% RH |
±3% RH |
14 bit |
|
Barometric Pressure |
26k to 126k Pa |
±10 Pa |
- |
|
Ambient Light |
0 to 64k lux |
5-level light detection |
16 bit |
|
Noise |
0 to 120 dB SPL (-26 DBFS sensitivity) |
±5 dB |
- |
|
Vibration (Accelerometer) |
-2g to +2g |
±0.4 m/s² |
16 bit |
|
Tilt |
0° to 90° |
±2° |
- |
|
Time-of-Flight (ToF) |
4 to 360 cm |
±20 mm |
- |
Serial Port
● Ports: 1 x RS-485
● Baud Rate: 9600 to 115200 bps
● Protocol: Modbus RTU
● Connector: 3.5mm female terminal block
LED and Button
● Indicators: 2 x LED (RUN - Blue, Error - Red)
● Buttons: 2 x Button (RST, ISP)
Power Supply and Consumption
● Input Voltage: 9 to 24 VDC
● Connector: 3.5mm female terminal block
Physical Characteristics
● Protection: IP31
● Fire Protection Rating: UL94 V-0
● Housing and Weight: Plastic (PC + ABS), 30.5g
● Dimensions: 21.5 x 37 x 76 mm
● Installation: 3M adhesive fixation
● Operating Temperature: -20°C to +70°C
● Storage Temperature: -40°C to +85°C
● Relative Humidity: 5% to 95% RH (non-condensing)
Regulatory and Type Approvals
● Type Approvals: CE, UKCA, FCC, RCM
● Environmental: RoHS 2.0, WEEE
Applications
● Environmental Safety: Monitor temperature, pressure, and humidity in data centers, server rooms, and chemical facilities.
● Predictive Maintenance: Track machinery vibration and noise to detect anomalies and prevent downtime in manufacturing plants.
● Smart Logistics: Use ToF sensors for collision avoidance, object detection, and fill-level monitoring in automated warehouses.
● Energy Efficiency: Optimize HVAC and lighting systems in smart buildings with real-time temperature, humidity, and ambient light data.
Ordering Information
● Order code: A014600003
● Package contains: 1 x S6000U sensor, 1 x 3M adhesive fixation, 1 x 4-pin terminal block, 1 x 12V 1A global power adapter
