What is a LoRaWAN Gateway? The Bridge Between Sensors and the Cloud

If IoT sensors are the "mouths" speaking data, and the cloud is the "brain" processing it, they speak two different languages. One speaks Radio Waves; the other speaks Internet Protocol (IP). This guide defines the LoRaWAN gateway, the essential piece of hardware that acts as the translator between these two worlds. We explain the "Star-of-Stars" topology, how gateways forward packets without processing them, and why they are the critical chokepoint for any industrial IoT network.

Imagine you are trying to have a conversation, but you are shouting from a mountaintop while your friend is sitting in a library 10 miles away. You cannot hear each other. You need a middleman—someone with a telescope and a telephone—to relay the message.

In the world of the Internet of Things (IoT), your sensors are on the mountaintop. Your application is in the library (the Cloud). And the LoRaWAN gateway is the middleman.

Without this device, the data collected by your soil moisture sensors or smart water meters is useless. It is just radio waves floating in the air. The gateway is the critical infrastructure that captures those waves and turns them into value.

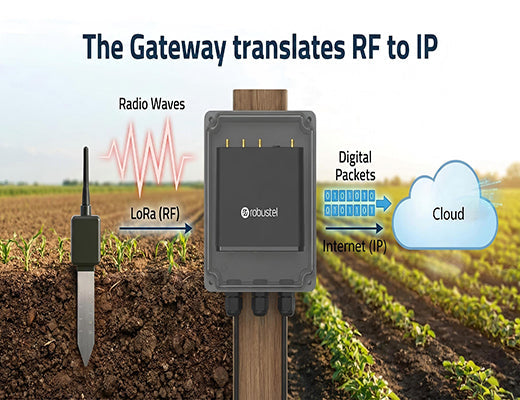

At its most basic level, a LoRaWAN gateway is a packet forwarder. It does not think; it listens and repeats.

1. Listen (RF): The gateway contains a "Concentrator" chip that continuously scans the airwaves. It listens on multiple channels simultaneously for the distinct "chirp" of a LoRa signal.
2. Capture (Demodulate): When a sensor transmits data (e.g., "Temp: 25°C"), the gateway catches the signal.
3. Forward (IP): The gateway wraps that data in an Internet Protocol (IP) packet and shoots it up to a LoRa Network Server (LNS) via Ethernet or 4G.

It acts exactly like a bridge. Traffic (data) flows over it, but the bridge itself doesn't care what is inside the cars.

Most people are used to Wi-Fi or Bluetooth. In those networks, you "pair" a device to a router. If the router fails, the device disconnects.

A LoRaWAN gateway works differently. It uses a "Star-of-Stars" topology.

• No Pairing: Sensors are not married to a specific gateway. They broadcast their message to the world.
• Multiple Listeners: If you have three gateways in a city, all three might hear the same message from one water meter.
• Redundancy: All three gateways forward the message to the cloud. The cloud (Network Server) sees the duplicates, keeps the strongest one, and discards the rest.

This makes the network incredibly resilient. If one LoRaWAN gateway loses power, the others pick up the slack automatically without re-configuring a single sensor.

You might wonder, "How many sensors can one gateway handle?" A standard home Wi-Fi router struggles with 50 devices. An industrial LoRaWAN gateway can handle thousands.

This is because of the 8-Channel Concentrator. Unlike a walkie-talkie that can only listen to one channel at a time, a gateway listens to 8 frequencies and multiple "Spreading Factors" (speeds) at once. It can process dozens of incoming messages simultaneously. Because LoRa sensor messages are tiny and infrequent (sending only once per hour), a single gateway acts as a massive funnel, aggregating data from an entire factory or farm.

Since the gateway's job is to send data to the internet, it needs its own connection. This is called "Backhaul."

In a clean office, you might plug the gateway into an Ethernet wall port. But LoRaWAN is designed for remote places—oil fields, agricultural land, and basements. In these locations, there is no Ethernet.

This is why the modern LoRaWAN gateway (like the Robustel R1520LG) relies on Cellular Backhaul (4G/LTE). It uses a SIM card to create a secure tunnel to the cloud, allowing you to place the gateway on a solar pole in the middle of nowhere, completely independent of local wired infrastructure.

When you build an IoT solution, the sensors get all the glory. But the LoRaWAN gateway does all the heavy lifting.

It is the piece of hardware that determines your network's range, capacity, and reliability. It bridges the gap between the physical constraints of radio physics and the digital power of cloud computing. If you choose a robust, industrial-grade bridge, your data will always find its way home.
