The Ultimate Guide to Industrial LoRaWAN Gateways (2026 Edition)

In the vast landscape of the Internet of Things (IoT), Wi-Fi is too short-range and 5G is too power-hungry for millions of small sensors. The solution is LoRaWAN. At the heart of this ecosystem sits the LoRaWAN gateway. This comprehensive guide defines the role of the gateway as the critical bridge between the physical world (sensors) and the digital world (cloud). We explore the differences between consumer and industrial hardware, the importance of cellular backhaul, and how to deploy a private network using edge computing. Whether you are monitoring pipelines or smart meters, this is your blueprint for connectivity.

The promise of the Industrial IoT is billions of sensors monitoring everything from soil moisture to pipeline vibration. But how do you get data from a coin-sized battery-powered sensor to the cloud?

You cannot use Wi-Fi (too much power). You cannot use 4G/5G for every sensor (too expensive).

You use LoRaWAN. And to make LoRaWAN work, you need a LoRaWAN gateway.

This piece of hardware is the unsung hero of the LPWAN (Low Power Wide Area Network) revolution. It is the "Cell Tower" of your private network. However, choosing the wrong gateway is the most common reason IoT projects fail. In this guide, we will dismantle the technology, architecture, and deployment strategies for industrial LoRaWAN gateway infrastructure.

At its simplest, a LoRaWAN gateway is a packet forwarder. It listens to the radio waves.

• The "Ears": It has a LoRa radio concentrator (usually an SX1301, SX1302, or SX1303 chip) that listens on multiple channels simultaneously. It picks up encrypted messages from any sensor within miles.
• The "Mouth": It takes that radio signal, converts it into digital data (IP packets), and forwards it to a LoRa Network Server (LNS) via Ethernet or Cellular.

The gateway does not decrypt the data. It does not know which sensor belongs to you. It simply acts as a transparent bridge between the RF world and the IP world.

If you search for "LoRaWAN gateway" online, you will find $100 plastic boxes intended for smart homes or crypto mining (Helium). Using these in an industrial setting is a disaster waiting to happen.

An Industrial LoRaWAN Gateway (like the Robustel Add One Product: R3000 LG) is engineered differently:

• Enclosure: It uses die-cast aluminum (IP67) to survive rain, dust, and UV radiation outdoors.
• Temperature: It operates from -40°C to +75°C, ensuring it survives inside hot control cabinets or frozen fields.
• Power: It supports variable DC input (9-36V) or PoE (Power over Ethernet), handling the "dirty power" found in factories without frying the board.

In professional deployments, hardware reliability is your uptime.

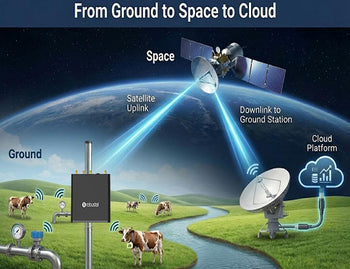

The gateway receives data from sensors, but how does it send that data to the cloud? This connection is called "Backhaul."

In a factory, you might have Ethernet. But in agriculture, utilities, or oil fields, there is no wired internet. This is why the best industrial LoRaWAN gateway must have an integrated 4G/LTE Cellular modem.

• Independence: A cellular gateway creates its own network. You do not need to ask the client's IT department for permission to plug into their LAN.
• Redundancy: Robustel gateways offer Dual-SIM slots. If the primary carrier goes down, the gateway automatically switches to the backup carrier, ensuring your critical sensor data always reaches the server.

There are two ways to configure your LoRaWAN gateway.

The gateway is "dumb." It passes every raw packet it hears directly to a cloud-based Network Server (like The Things Network, ChirpStack, or AWS IoT Core). The cloud handles de-duplication and decryption.

• Pros: Centralized management.
• Cons: Requires constant internet. If 4G drops, data is lost.

Smart gateways (like the R1520LG) can run the LoRa Network Server (LNS) software directly on the device.

• How it works: The gateway decodes the data locally. It can then use an app running on the gateway (via RobustOS) to filter data or send it directly to a SCADA system via Modbus or MQTT.
• Pros: Works offline. Lower data usage. Faster response times.

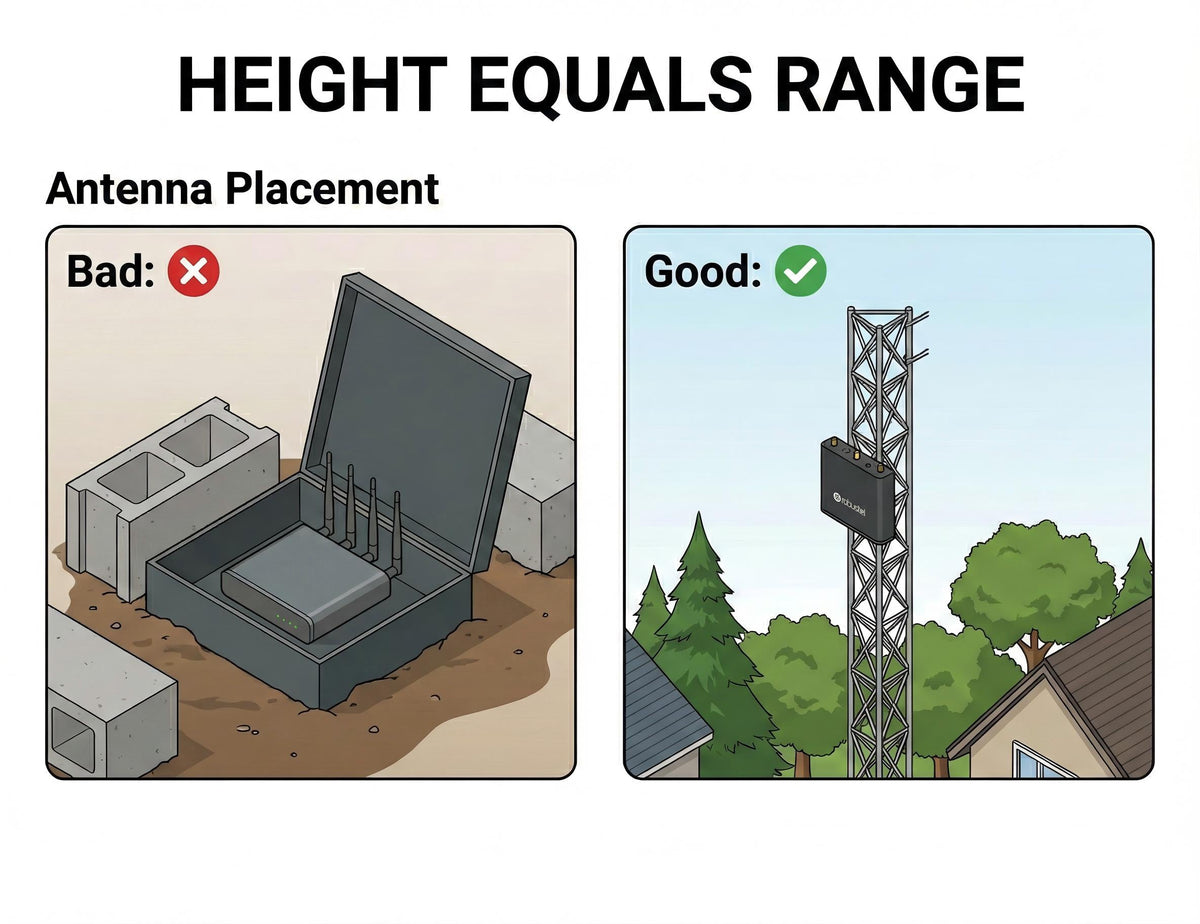

A LoRaWAN gateway is only as good as its antenna placement. LoRa is a "Line of Sight" technology.

• Height: Every meter of height is worth a kilometer of range. Mount the antenna as high as possible.
• Cabling: Keep the cable between the gateway and the antenna short to minimize signal loss. Ideally, mount the gateway itself on the pole (using PoE) so the antenna connects directly to the unit.
• Density: How many sensors can one gateway handle? Theoretically thousands. But in practice, if you have 1,000+ sensors transmitting frequently, you should deploy multiple gateways to prevent "packet collisions."

Your LoRaWAN gateway is part of a larger stack. It must be compatible with the major software platforms.

Ensure your gateway supports the Semtech UDP Packet Forwarder (legacy) and the Basic Station (modern) protocols. This ensures it can connect to:

• The Things Stack (TTN/TTI) for public/community networks.
• ChirpStack for private, self-hosted networks.
• AWS IoT Core for LoRaWAN for enterprise cloud integrations.

Robustel gateways come pre-configured with profiles for these major platforms, turning integration into a 5-minute configuration task.

Whether you are tracking cattle in the Outback or monitoring water meters in a metropolis, the success of your project rests on the shoulders of the LoRaWAN gateway.

Don't treat it as a commodity. It is critical infrastructure. By selecting a rugged, cellular-enabled gateway and deploying it with a solid antenna strategy, you build a network that is resilient, scalable, and ready for the future of industry.
