What Data Can You Get From Your CNC Router? A Guide to Key Metrics

Wondering what valuable information is locked inside your CNC router? This guide explores the key data points and metrics you can typically access once your machine is connected to a network. From real-time machine status and production counts to detailed alarm codes and usage statistics, understanding what data a CNC router can provide is the first step towards leveraging it for improved efficiency (OEE), reduced downtime, and smarter maintenance.

You've connected your CNC router to the network, or perhaps you're considering it. The next logical question is: "Okay, it's online... now what? What information can I actually get out of this expensive machine, and what can I do with it?"

It's a crucial question. The value isn't in the connection itself, but in the data it unlocks.

Let's be clear: your CNC router is a data goldmine. It holds the secrets to its own efficiency, health, and productivity. You just need to know what data points to look for and how to access them.

Before diving into the specifics, remember why we collect this data. It's the foundation for:

• Boosting OEE: Identify and eliminate the root causes of downtime and performance loss.
• Reducing Downtime: Move from reactive repairs to proactive, data-driven maintenance.
• Improving Quality: Correlate machine parameters with part quality to optimize processes.
• Increasing Transparency: Gain real-time visibility into your shop floor operations.

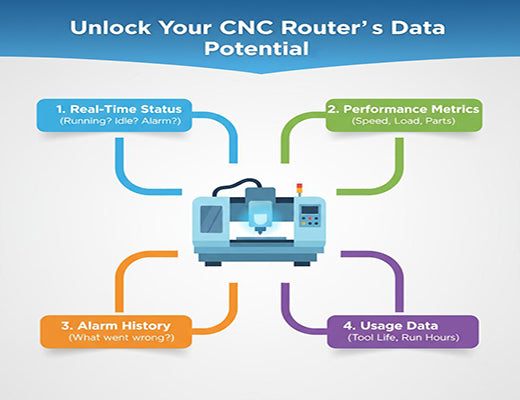

The exact data points available depend heavily on the manufacturer and age of your CNC router controller (e.g., Fanuc, Siemens, Haas). However, most modern industrial controllers provide access to these key categories:

This is the most fundamental data, telling you what the machine is doing right now.

• Execution State: Running, Idle, Stopped, Feed Hold, Emergency Stop.
• Operating Mode: Auto, Manual Data Input (MDI), Jog, Edit.
• Program Information: Current program name being executed, block number.
• Importance: Essential for identifying bottlenecks, understanding true utilization, and triggering alerts (e.g., if a machine is unexpectedly idle for too long).

This data tells you how well the machine is working.

• Feed Rate: Actual vs. programmed cutting speed.
• Spindle Speed & Load: Actual vs. programmed RPM, and the percentage of available spindle power being used (a key indicator of tool wear or cutting issues).
• Cycle Times: Time taken to complete specific operations or entire parts.
• Part Counts: Number of parts produced (often separated into total count and good/bad count if integrated with inspection).
• Importance: Direct inputs for calculating the Performance and Availability components of OEE. Spindle load is crucial for process optimization and predictive maintenance.

This is your machine's "diary" of problems.

• Alarm Codes: Specific error numbers generated by the controller (e.g., "Servo Overload," "Lubrication Low").
• Alarm Messages: Human-readable descriptions of the alarms.
• Timestamps: When each alarm occurred and when it was cleared.
• Importance: Invaluable for remote troubleshooting and identifying recurring issues that need permanent fixes.

This data helps manage the machine's long-term health.

• Run Time / Power-On Time: Total hours the machine has been running or powered.
• Spindle Hours: Specific hours the spindle has been rotating (critical for spindle maintenance schedules).
• Tool Life Counters: Many controllers can track the usage (time or cycles) of specific tools.
• Importance: Provides the necessary data to implement condition-based or predictive maintenance schedules, rather than relying on fixed calendar intervals.

Accessing this rich data typically requires bridging the gap between the CNC controller's Operational Technology (OT) protocol and your Information Technology (IT) network. This is the role of an industrial edge gateway:

• The Connection: The gateway (like a Robustel EG5100 or EG5120) connects directly to the CNC router controller via Ethernet or serial port.
• The Translation: Using specialized software drivers (e.g., for Fanuc FOCAS, MTConnect, Modbus, OPC UA), the gateway polls the controller for the desired data points.
• The Delivery: The gateway then transmits this data in a standardized format (like MQTT/JSON) to your on-premise server or cloud platform for analysis and visualization.

Your CNC router is constantly generating valuable operational data. By understanding what data your CNC router can provide and implementing the right connectivity solution to access it, you transform your machine from a black box into an open book. This data is the raw material for every meaningful improvement in efficiency, reliability, and profitability in your machining operations. Don't let it stay locked away.
