The Rugged Edge Router: Connecting Remote Solar, BESS & Utility Assets

This guide defines the rugged edge router—a device purpose-built for the extreme environmental and connectivity challenges of remote asset monitoring. We explain why a standard edge router will fail in a utility or solar deployment. We'll cover the non-negotiable hardware features (wide-temp, eMMC, industrial I/O) and critical connectivity functions (Dual-SIM 4G/5G failover, protocol support) that define a true industrial edge router, and show how it's the only reliable choice for solar monitoring, bess monitoring, and utility connectivity.

Let's paint a picture. It's July. Your most valuable solar inverter is sitting inside a metal NEMA enclosure in the middle of a desert, baking in 130°F (55°C) ambient heat. Or, it's January, and your remote pump monitoring station in North Dakota is in the middle of a blizzard at -30°F (-34°C).

Now, ask yourself: is the $50 consumer router you bought at an office supply store going to work?

I can tell you from experience: it's not a question of if it will fail, but when. For remote solar, BESS, or utility assets, the environment is your number one enemy. You don't just need an edge router; you need a rugged edge router. They are not the same thing.

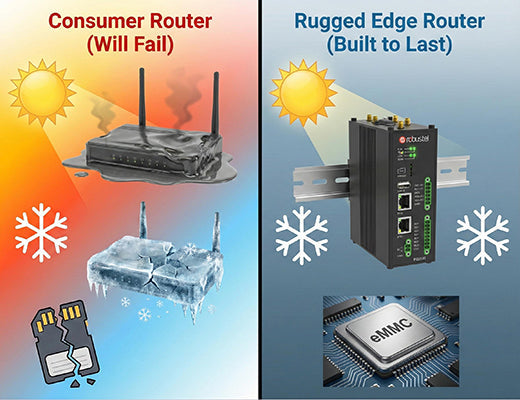

A "rugged" or industrial edge router isn't just a regular edge router in a metal box. It's fundamentally different from the inside out. Any true rugged edge router must have these features.

This is the most critical spec. A device's "commercial" rating (0°C to 40°C) is for an air-conditioned office. An "industrial" rating is for the real world.

• The Problem: A sealed metal box in direct sun can reach internal temperatures of 80°C (176°F), frying consumer-grade chips. In the cold, components can crack or fail to boot.
• The Solution: A rugged edge router like the Add One Product: EG5120 is rated for -40°C to +70°C. Every component on its board—the CPU, the RAM, the capacitors—is certified to survive these extremes for a decade.

This is the #1 failure point we see in DIY Raspberry Pi "solutions".

• The Problem: A removable microSD card is a consumer-grade part. It is guaranteed to fail from the constant 24/7 read/write cycles of an OS log and from physical vibration.
• The Solution: A rugged edge router uses eMMC flash storage. This is industrial-grade memory that is soldered directly to the main board, making it immune to vibration and rated for 10x the write endurance.

The power at a remote site (like a solar-charged battery bank) is "dirty." It's full of spikes, sags, and electrical noise.

• Wide Voltage: A professional edge router accepts a wide input, like 9-36V DC, to handle this unstable power.
• EMC/EMI: It has built-in circuit protection (Electromagnetic Compatibility) to filter out the massive electrical noise from inverters or pumps, preventing the edge router's CPU from crashing.

A rugged edge router is an investment in reliability. It's the difference between a device that might work and a device that will work.

Okay, so the edge router can survive. Now, what does it do? A modern industrial edge router is also a smart IoT Gateway. It's not just a "modem"; it's the data hub for your entire site.

For remote asset monitoring, the connection is the product. You can't rely on a single carrier.

• The Solution: A rugged edge router features Dual-SIM automatic failover.
• How it works: You install a SIM from Carrier A (e.g., AT&T) and Carrier B (e.g., Verizon). The edge router constantly monitors the connection. The second Carrier A's network drops, the edge router instantly switches to Carrier B. Your data stream is never interrupted. This is non-negotiable for critical utility assets.

Your solar inverter, BESS, and utility meter don't speak "cloud." They speak industrial protocols.

• The Problem: Your solar farm speaks Modbus. Your utility recloser speaks DNP3 or IEC104. Your BESS might speak CAN.
• The Edge Router Solution: A "smart" edge router (an edge computing gateway like the EG5120) has the ports (RS485, CAN) and software (like Edge2Cloud Pro) to speak all these languages. This one edge router can poll the Modbus inverter, the DNP3 recloser, and the CAN BESS, then translate all that data into a single, clean MQTT stream for your SCADA or cloud platform. This edge router is your universal translator.

This is a real-world example of this edge router in action.

• The Problem: A solar asset manager was "data blind." They were relying on the inverters' built-in Wi-Fi "dongles" which were cheap, unreliable, and constantly dropping off the site owner's network. They had no way to get bess monitoring data at all.
• The Solution: They deployed a Robustel cellular edge router at each site.
• The Result:

1. Reliability: The edge router's Dual-SIM 4G connection gave them 99.9%+ data uptime, completely bypassing the site's Wi-Fi.
2. Translation: The industrial edge router connected to the inverters via Modbus and the BESS (BMS) via CAN bus, pulling all renewable energy data into one feed.
3. TCO Savings: They used Add One Product: RCMS to remotely reboot inverters that had "frozen." This eliminated 90% of their "truck roll" service calls, saving them thousands. This single edge router solution paid for itself in months.

A rugged edge router is built to be ignored for 10 years in a metal box. But you still need to manage it. How do you update security patches or change VPN settings on 1,000 remote assets?

This is where a cloud platform like RCMS (Robustel Cloud Manager Service) is essential. It's the "control tower" for your entire edge router fleet.

• ZTP: You can ship a new edge router to a site. A technician plugs it in. It "calls home" to RCMS and auto-configures itself.
• Remote Control: You can remotely reboot the edge router—or the devices attached to it—from your desk.
• Fleet Updates: You can push a new security certificate to your entire 1,000-device edge router fleet with one click.

A rugged edge router provides hardware reliability. RCMS provides operational reliability.

For remote asset monitoring in utility, solar, or water applications, the environment is your biggest enemy. A consumer-grade or "prosumer" edge router is a guaranteed failure that will cost you a fortune in downtime and service calls.

A rugged edge router isn't an "over-priced" box; it's an insurance policy. It's a purpose-built industrial edge router that provides the two things that matter: unbreakable hardware (wide-temp, eMMC) and unbreakable connectivity (Dual-SIM 4G/5G). This is the only type of edge router you should ever deploy to a critical, remote asset.
