The In-Vehicle Edge Router: A Guide to Reliable AGV, Fleet & Transit Connectivity

This guide defines the in-vehicle edge router, a device purpose-built for the extreme challenges of mobile environments. A standard edge router will fail in a vehicle; this article explains the critical differences. We cover the non-negotiable hardware features like E-Mark certification, wide voltage input with ignition sensing, shock/vibration hardening, and essential connectivity features like high-precision GNSS (GPS) and CAN bus integration. Whether for AGV connectivity, fleet connectivity, or public transit, a true in-vehicle edge router is the key to reliable data in motion.

Let's get one thing straight: installing connectivity hardware in a vehicle is one of the toughest jobs in our industry. I've seen countless projects fail because a team tried to save money by installing a standard consumer or even a basic industrial edge router in a truck or on an AGV.

It lasts about three months.

The constant vibration shakes the components loose. The engine's "dirty" power fries the circuits. The Wi-Fi connection drops every 30 seconds. A vehicle is a data center's worst nightmare. You don't just need an edge router; you need a purpose-built in-vehicle edge router. This is a different class of device, and understanding its unique features is the key to a successful mobile deployment.

A true in-vehicle edge router is defined by its ability to survive and thrive in a mobile environment. It's not just about a metal box; it's about specialized engineering and certifications.

This is the most important "insider" spec. E-Mark certification (like R10) is a mandatory European standard that proves the edge router will not interfere with the vehicle's critical electronic systems (like its engine management or brakes) and, just as importantly, that the vehicle's electronics won't interfere with the router.

If you install a non-E-Mark certified edge router in a vehicle, you are creating a safety risk and a liability. A professional in-vehicle edge router will always list this certification first.

A vehicle's power is chaotic. A "12V" truck system can spike to 30V or dip to 9V during an engine crank. This is called "dirty power."

• Wide Voltage: A professional in-vehicle edge router has a power supply built for this, typically accepting a wide 9-36V DC input.
• Ignition Sensing: This is a critical feature. The edge router has a dedicated pin that connects to the vehicle's ignition. This allows it to "sleep" (low-power mode) when the engine is off to avoid draining the battery and "wake up" instantly when the key is turned.

Vehicles shake, rattle, and roll. And they get hot or freezing.

• Shock/Vibration: The edge router must be built to standards like MIL-STD-810G to withstand constant g-forces and vibration without its components failing.
• Wide-Temp: The device (like our industrial edge router line) must use eMMC storage (not SD cards) and components rated for -25°C to +70°C operation, far exceeding the limits of a standard edge router.

Once the hardware is tough enough, the edge router must provide flawless connectivity while in motion.

This is the most important connectivity feature. A moving vehicle will drive from one carrier's coverage area into another's dead zone.

• How it works: A professional cellular edge router holds two SIM cards from different carriers (e.g., AT&T and T-Mobile).
• The Result: The edge router constantly monitors its connection. The second it detects a failure on Carrier A, it instantly fails over to Carrier B. The connection never drops. For an AGV or a transit bus, this is the feature that ensures it stays online.

An in-vehicle edge router isn't just about data; it's about location. High-sensitivity GNSS (GPS, GLONASS, Galileo) is built-in. This isn't just for a dot on a map; it's for high-precision tracking, geofencing (e.g., "Alert me when this truck enters the depot"), and providing location data to other onboard systems.

The Wi-Fi on a good in-vehicle edge router is a versatile tool.

• As a Hotspot: It provides a "bubble" of Wi-Fi inside the vehicle for passengers (on a bus) or for staff's tablets and scanners (in a work truck). This is a core transit connectivity function.
• As a WAN Client: It can be configured to automatically switch its own internet connection from 5G to a "free" depot Wi-Fi network when the vehicle returns to base, saving on cellular data costs.

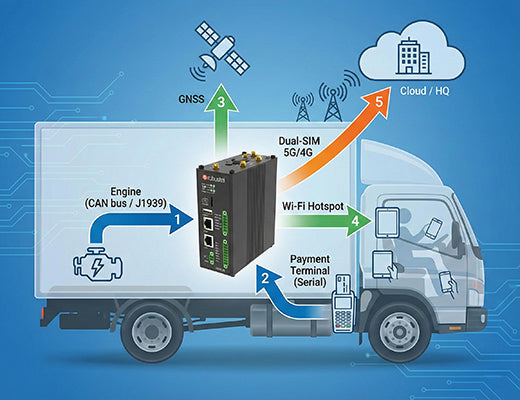

A true in-vehicle edge router is also an IoT Gateway. It speaks the language of the vehicle.

• CAN Bus Integration: The most valuable data is on the CAN bus (the vehicle's internal network). A high-end edge router (like the Robustel EG5120) has a CAN port and can read J1939 or FMS data directly.
• What this means: Your edge router can now report not just where the truck is, but also its RPM, fuel level, engine temperature, and diagnostic fault codes (DTCs). This is the holy grail of fleet connectivity.
• Serial Ports: It also provides RS232/RS485 ports to connect other devices like payment terminals, ticketing machines, or industrial sensors.

Problem: Wi-Fi roaming between access points is the #1 cause of agv connectivity failure, leading to "stuck robots." Solution: A rugged industrial edge router (like a 5G R5020 Lite) on each AGV, connected to a Private 5G network. This provides seamless, low-latency connectivity with zero roaming handoff issues.

Problem: Need to track vehicle location, monitor driver behavior, and get real-time engine diagnostics. Solution: A 4G in-vehicle edge router (like the R1520 Global) provides robust GPS tracking, while its CAN bus integration reads J1939 data directly from the engine, sending a unified telematics stream to the cloud.

Problem: Need to provide reliable, high-speed Wi-Fi for 50+ passengers, while also securely processing credit card payments for ticketing. Solution: A 5g edge router. This single device uses its high-speed 5G eMBB connection as the WAN "backhaul." It then provides a secure, isolated Wi-Fi hotspot for passengers and a separate, firewalled network for the secure payment terminal.

How do you manage an edge router that's moving at 70 mph? You can't. A moving edge routermust be managed by a powerful, cloud-based platform. A platform like Add One Product: RCMS is your "control tower."

• ZTP: An installer can mount a new edge router in a truck. The device powers on, "calls home," and instantly downloads its full security and network configuration via Zero-Touch Provisioning.
• Remote Visibility: You can see your entire fleet on a single map, get alerts for low signal, and remotely reboot a device without ever calling the driver. This is the TCO-saver for any fleet connectivity solution.

A standard edge router is a "border guard" for a stationary building. An in-vehicle edge router is a specialized "navigator and communications officer" for a moving asset.

It is a rugged, E-Mark certified device that thrives on vibration and dirty power.It's a connectivity powerhouse, using Dual-SIM 5G/4G to ensure it's always online. And it's an intelligent data hub, speaking CAN bus and GPS to tell you not just where your asset is, but how it's doing. For any serious AGV, fleet, or transit project, a professional in-vehicle edge router isn't just a good idea—it's the only solution.
