The 5 Key Functions That Define a Modern Industrial Edge Router

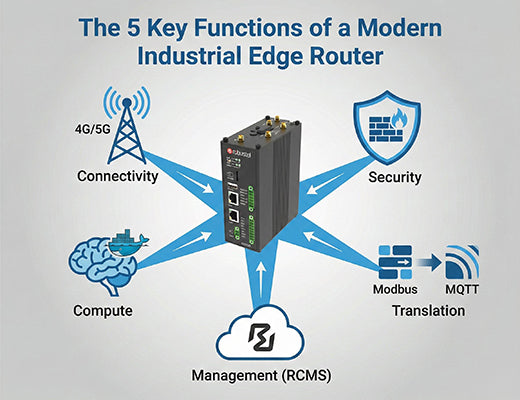

What does a modern edge routeractually do? In 2025, an industrial edge router is no longer just a simple "box that routes." It has evolved into a multi-function, intelligent appliance that is part firewall, part data translator, part computer, and part fleet asset. This guide breaks down the five key edge router functions that define a professional-grade device, including robust connectivity, security, protocol conversion, edge computing, and centralized management.

In the past, the job of a router was simple: move data packets from A to B. But at the network "edge"—the critical border between your trusted factory or office (LAN) and the untrusted internet (WAN)—that job description has radically changed.

Your modern industrial edge router is no longer a "dumb" box. It's a hardworking, multi-talented Swiss Army knife. It's your security guard, your translator, your local computer, and your communications officer, all rolled into one rugged device.

As an engineer who designs these systems, I can tell you that any professional edge router you buy in 2025 must be able to perform these five key functions. If it can't, you're not buying a modern solution; you're buying an outdated liability.

This is the most basic edge router function, but "industrial" connectivity has a higher standard. An edge router must connect your LAN to the WAN. A professional edge router must ensure that connection never fails.

• Routing & NAT: This is the baseline. The edge router manages your internal LAN (e.g., 192.168.1.x) and routes traffic to the external WAN, using NAT to manage your public IP address.
• Cellular Failover: This is non-negotiable for any business. You can't rely on a single wired internet line (which can be cut by a backhoe). A modern industrial edge router has a 4G/LTE or 5G modem built-in. It uses the wired line as primary and, if it detects an outage, automatically fails over to the cellular network in seconds.
• Dual-SIM Reliability: A great5g edge router goes one step further: it includes Dual-SIM slots. If its primary cellular carrier (e.g., AT&T) fails, it automatically switches to a backup carrier (e.g., T-Mobile).

This "always-on" connectivity is the foundation of any serious edge router.

As we covered in our edge router vs firewall guide, the edge router is your primary security checkpoint. It's the only thing protecting your internal network from the entire internet.

• Stateful Firewall: Every professional edge router is a stateful firewall. It blocks all unsolicited incoming traffic by default, making your internal assets (like PLCs and PCs) invisible to hackers.
• Secure VPN Hub: An edge router must be a powerful VPN (Virtual Private Network) endpoint. It builds encrypted, "secret tunnels" (using IPsec, OpenVPN, etc.) over the public internet to connect securely to your HQ or cloud. This is essential for protecting sensitive corporate or industrial data.
• Security-First Design: An edge router is not just a consumer device in a metal box. Its software should be hardened. A secure edge router from a vendor like Robustel is built on a development process certified to IEC 62443, a rigorous standard for OT security.

This is what separates a generic "IT" edge router from a true industrial edge router. Your factory's PLCs, VFDs, and CNCs don't speak IP-based JSON; they speak old-school industrial protocols.

A true industrial edge router must also be an IoT Gateway.

• Protocol Conversion: It must have the hardware (like RS485/RS232 ports) and the software (drivers) to "speak" legacy protocols like Modbus RTU/TCP, Siemens S7, or EtherNet/IP.
• Data Standardization: This edge router function involves translating that raw, cryptic data (e.g., "register 40010") into a clean, modern format (e.g., JSON) and publishing it via MQTT or OPC UA.
• The "One-Box" Solution: This ability turns your edge router into an all-in-one device. It's the edge router vs iot gateway confusion-solver: a modern industrial edge router is an IoT Gateway.

This function is what makes an edge router "smart." Instead of just blindly forwarding all data to the cloud (which is slow and expensive), a modern edge computing gateway (the highest form of an edge router) processes data locally.

• Why? To enable real-time alerts, filter out "noise" to save on data costs, and run applications even if the internet connection is down.
• The "Old" Way: A "black box" edge router with proprietary firmware. You can't change it.
• The "New" Way: An open OS edge router (like the Add One Product: EG5120 ) that runs Debian Linux. This gives developers full control.
• The "Killer App" (Docker): The best edge router devices support Docker. This allows you to deploy any custom application—a Python script, a Node-RED flow, an AI model—as a secure container right on the edge router itself. This transforms your edge router from a network device into a powerful, distributed computer.

This is the function that 90% of buyers forget, and 100% of them regret forgetting.

Your first edge router is easy to manage by logging into its web page. Your 1,000th edge router is an operational impossibility. A modern edge router must be part of a fleet management platform.

• The Problem: How do you update firmware, patch security holes, change VPN keys, or check the status of 1,000 devices across three continents?
• The Solution: A cloud platform like Add One Product: RCMS (Robustel Cloud Manager Service).
• Key Platform Features:
  • Zero-Touch Provisioning (ZTP): Automate the deployment of a new edge router. Just plug it in, and it configures itself from the cloud.
  • OTA (Over-the-Air) Updates: Push a new firmware or security patch to your entire edge router fleet with one click.
  • Remote Access: Securely access the device's command line or web GUI from anywhere, and even access the devices behind it (like PLCs).

An edge router without a central management platform is just a "brick." An edge router with a platform is a scalable, manageable, and profitable solution.

The days of the "dumb" router are over. The modern industrial edge router is a sophisticated, multi-function appliance that is the key to any successful IIoT or remote connectivity project.

When you're writing your next RFP, don't just ask for a "router." Demand a true edge router that delivers on all five key functions:

1. Connectivity (with 4G/5G failover)
2. Security (Stateful Firewall, VPN, IEC 62443)
3. Translation (Industrial Protocols like Modbus)
4. Compute (Open OS with Docker support)
5. Management (A scalable cloud platform like RCMS)

An edge router that ticks all five boxes isn't just a component; it's the foundation of your entire edge strategy.
