MQTT and the IoT Gateway: The Perfect Pair for IIoT Communication

In the world of IIoT, the IoT Gateway and the MQTT protocol are the perfect partnership. This article explains why. A traditional IoT Gateway solves the problem of protocol translation (like Modbus to MQTT), but MQTT itself solves the problem of efficient and reliable data transport over unreliable networks (like 4G/5G). We'll explore the MQTT publish/subscribe model, why it's superior to legacy polling, and how an industrial IoT gateway acts as the perfect, intelligent MQTT client on the factory floor.

Let's be honest: most industrial data protocols are heavy, "chatty," and were designed for a wired factory floor in the 1990s. Now, try to run a "chatty" protocol like Modbus directly over an expensive, high-latency 4G cellular connection. It's a nightmare. It's slow, it's unreliable, and it will eat your data plan for lunch.

This is where the perfect partnership comes in.

1. The IoT Gateway: The powerful, local "translator" that speaks the old, heavy languages.
2. The MQTT Protocol: The modern, lightweight "language" for sending data to the cloud.

The IoT Gateway does the "heavy lifting" locally, and MQTT does the "lightweight lifting" to the cloud. Together, they form the backbone of nearly every successful IIoT project. Let's explore why this iot gateway mqtt combination is so powerful.

MQTT (Message Queuing Telemetry Transport) is a messaging protocol. Its genius lies in its simplicity and a model called "Publish/Subscribe" (Pub/Sub).

This is not like Modbus.

• Modbus (Poll/Response): A Master must ask a Slave for data. ("Hey, PLC, what's your temperature?" ... "It's 25C." ... "Okay. Hey, PLC, what's your temperature now?" ... "It's 25.1C.") This is constant, inefficient polling.

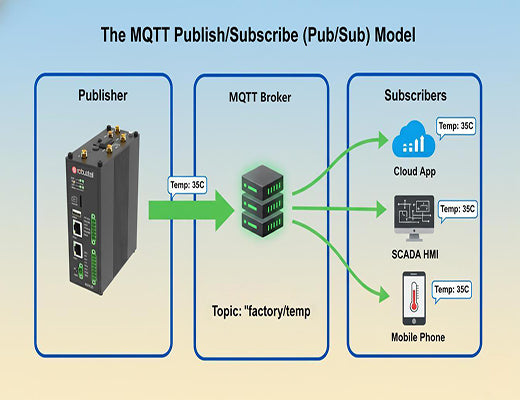

• MQTT (Publish/Subscribe): This model has three parts:

1. Publisher (The IoT Gateway): This is your IoT Gateway. It publishes data once to a specific "topic." (e.g., Topic: factory/line1/motor/speed, Message: 1800).
2. Broker (The Server): This is the central server. It's like a post office. It receives all messages and sorts them by topic.
3. Subscriber (The Application): This is your cloud dashboard or SCADA. It "subscribes" to the topic factory/line1/motor/speed.

The IoT Gateway (Publisher) and your application (Subscriber) never talk to each other directly. The MQTT Broker decouples them completely. This is the magic key to scalability. Your IoT Gateway just publishes its data; it doesn't care if zero or 50 applications are listening.

This Pub/Sub model is perfect for the cloud, but your PLC on the factory floor doesn't speak MQTT. This is where the industrial IoT gateway becomes the essential "MQTT Client" at the edge.

This is the single most important job for an IoT Gateway.

1. Local Polling: The IoT Gateway (like a Robustel EG5120) runs locally and polls the PLC via Modbus every 100 milliseconds. (This is the "chatty" part, but it's on a local wire, so it's fast and free).
2. Edge Logic: The IoT Gateway thinks. It sees the temperature is 25.1C, 25.1C, 25.1C... It doesn't need to report this.
3. Event-Driven Publishing: Suddenly, the value changes to 25.2C. Now, the IoT Gateway publishes one singleMQTT message to the broker: {"topic": "factory/plc1/temp", "value": 25.2}.

Instead of sending 1,000 redundant messages, your IoT Gateway only sends one, precisely when the data matters. This is the Modbus to MQTT translation, and it saves you massive amounts of cellular data and cloud processing costs.

What happens if the 4G/5G connection at your remote site is flaky? This is where MQTT truly shines, and why any cellular IoT gateway should use it.

• It's Lightweight: An MQTT message header is tiny (as small as 2 bytes). A standard HTTP header can be 800+ bytes. When you're paying per kilobyte on a cellular plan, MQTT is vastly cheaper. This makes it the ideal protocol for an IoT Gateway on the move.
• Quality of Service (QoS):MQTT has built-in reliability levels. When your IoT Gateway publishes a critical alarm, it can use:
  • QoS 0: "Fire and forget." (Fastest, but a packet might get lost)
  • QoS 1: "At least once." (Guarantees delivery, but might get duplicates)
  • QoS 2: "Exactly once." (Guarantees delivery, no duplicates. Slower, but 100% reliable) A professional IoT Gateway lets you choose the QoS level for each data point.
• Last Will & Testament (LWT): This is a brilliant feature for any remote IoT Gateway. When the IoT Gateway first connects to the MQTT Broker, it gives it a "Last Will":

"Hey, Broker. If you don't hear from me for 60 seconds (no ping, no message), assume my 4G connection died or I lost power. When that happens, please automatically publish this message on my behalf to the topic factory/gateway1/status: Offline."

This LWT feature is how platforms like RCMS can instantly tell you a remote IoT Gateway has gone offline, even when the device itself had no chance to send a "goodbye" message.

Your IoT Gateway is the "Client." It needs a "Broker" (Server) to talk to. You have two main options:

1. Cloud-Based Broker (Most Common): You use a cloud service like AWS IoT Core, Azure IoT Hub, or a self-hosted broker on a server. Your IoT Gateway uses its 4G/5G connection to publish data to this public internet address. This is the standard for most IIoT applications.
2. Local Broker on an Edge Computing Gateway: What if your internet fails, but you still need local systems to talk? A powerful Edge Computing Gateway (the most advanced type of IoT Gateway) like the Add One Product: EG5120 can run its ownMQTT Broker using Docker. This allows a local HMI (subscribing) and the IoT Gateway (publishing) to keep talking to each other inside the factory, even if the internet is down.

The IoT Gateway and MQTT are the perfect pair because they solve each other's problems.

• The IoT Gateway solves MQTT's problem: It provides the "feet on the street" to go out and get the dirty data (Modbus, S7, etc.) that MQTT itself can't read.
• MQTT solves the IoT Gateway's problem: It provides a super-lightweight, reliable, and scalable "language" for the gateway to send that data over expensive and unreliable cellular networks.

A "smart" factory isn't just about having data; it's about moving that data efficiently and reliably. The combination of a powerful industrial IoT gateway (like a Robustel) doing the local translation and an MQTT protocol handling the transport is the undisputed, modern standard for building a scalable and cost-effective IIoT solution.
