Mining & Oil/Gas: Rugged LoRaWAN Gateways for Hazardous Environments

In the extraction industries, a spark can cause a disaster. Connecting sensors in an oil refinery or an open-pit mine requires hardware that is more than just "durable"; it must be intrinsically safe or housed in explosion-proof enclosures. This guide explores the critical role of the LoRaWAN gateway in these hazardous environments. We discuss how LoRaWAN's long range covers vast mines without expensive cabling, how it monitors pipeline integrity to prevent leaks, and why selecting the right industrial gateway is a matter of life and death.

The digitizing of heavy industry is often called "Industry 4.0," but in Mining and Oil & Gas, it is simply called "Survival."

Operators are under immense pressure to reduce costs, prevent environmental leaks, and protect workers. Data is the answer. But gathering data from a vibrating crusher in a dust-filled mine or a pressure valve in a volatile refinery is not a job for standard IT equipment.

This environment demands a rugged LoRaWAN gateway.

LoRaWAN is uniquely suited for these sectors because of its incredible range and low power. However, the hardware that receives these signals must be built to withstand heat, dust, vibration, and the constant threat of explosive atmospheres. This guide explains how to deploy a LoRaWAN gateway where other networks fail.

In an oil refinery or a coal mine, the air can contain flammable gases or combustible dust. A standard electronic device can create a tiny spark, leading to a catastrophic explosion.

When deploying a LoRaWAN gateway, you have two strategies:

1. The Safe Zone Strategy: Mount the gateway high up on a tower, outside the immediate "Red Zone" (hazardous area). Because LoRa has a range of 10km+, the gateway can safely sit outside the danger zone while listening to Intrinsically Safe sensors inside the zone.
2. The Explosion-Proof Strategy: If the LoRaWAN gateway must be inside the hazardous area, it must be housed in a heavy-duty, certified explosion-proof enclosure (Ex d). This ensures that if the electronics fault, the explosion is contained inside the box.

Mines are constantly changing shape. You cannot run fiber optic cables to a shovel that moves every day.

• The Solution: Place a solar-powered LoRaWAN gateway on the high rim of the pit.
• The Application:
  • Dewatering: Monitor water levels in the pit bottom.
  • Asset Tracking: Track the location of light vehicles and lighting towers.
  • Slope Stability: Connect geotechnical sensors to detect landslides early.
• The Result: Total visibility of the pit without a single cable on the ground.

Pipelines stretch for hundreds of miles across uninhabited terrain. A small leak can go unnoticed for days, causing massive environmental fines.

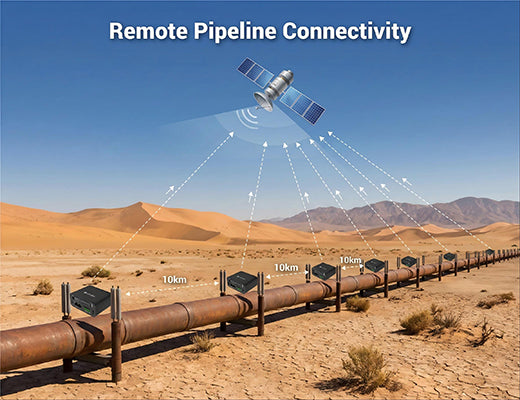

• The Solution: A chain of LoRaWAN gateways along the pipeline route.
• The Application: Sensors measure pressure drops and acoustic vibrations (the sound of a hiss).
• The Connectivity: Since there is no Ethernet, the LoRaWAN gateway uses 4G/LTE or even Satellite Backhaul to send the alarm to HQ in seconds.
• The Result: Immediate shut-off of valves, minimizing the spill.

In these industries, workers often operate alone in dangerous areas.

• The Solution: Wearable LoRaWAN trackers with a "Panic Button" and gas detection.
• The Application: If a worker detects Hydrogen Sulfide (H2S) or falls down (accelerometer impact), the device sends a distress signal to the LoRaWAN gateway.
• The Advantage: Unlike cellular phones, which often have dead zones in metal refineries, a private LoRaWAN gateway network can be engineered to provide 100% saturation coverage, ensuring the safety signal always gets through.

A consumer-grade gateway will die in a week in these conditions. An industrial LoRaWAN gateway for mining and oil/gas must feature:

• Vibration Resistance: Mining equipment shakes violently. The gateway must use locking connectors and soldered components (no loose wires).
• Dust Proofing (IP67): Coal dust is conductive. If it gets inside, it shorts the board. The LoRaWAN gateway must be fully sealed.
• Wide Temperature: From the frozen oil fields of Canada (-40°C) to the desert mines of Australia (+50°C), the gateway must operate without active cooling fans, which would clog with dust.

In the extraction industries, efficiency is the difference between profit and loss. A rugged LoRaWAN gateway infrastructure allows you to extract data as efficiently as you extract ore or oil.

By providing a reliable, long-range connection to your critical assets and workers, you reduce downtime, enhance safety, and ensure environmental compliance. In the harshest environments on Earth, the LoRaWAN gateway is your digital lifeline.
