LTE vs 5G Spectrum Fundamentals: How Frequency Bands Impact Performance

The performance differences between lte vs 5g – speed, range, building penetration – aren't magic; they're largely dictated by the radio frequencies, or spectrum, each technology uses. This guide dives into lte vs 5g spectrum fundamentals. We explain the critical trade-offs between low-band, mid-band, and high-band ( mmWave) 5g frequency bands, how they compare to traditional LTE bands, and why understanding these cellular performance implications is essential for choosing the right technology and hardware for your needs in the lte vs 5g landscape.

We've compared the speeds, latency, security, and architectures of lte vs 5g. But to truly grasp why these technologies perform so differently, we need to talk about something fundamental: the radio waves themselves, specifically the frequency bands, or spectrum, they operate in. Think of spectrum as the invisible real estate where cellular signals travel. Just like physical real estate, some locations are better for certain tasks than others.

As someone designing devices that need to navigate this complex RF world, I know that understanding lte vs 5g spectrum isn't just for radio engineers. It directly impacts the cellular performance – the speed, range, and reliability – you'll experience. Why does your 5G signal sometimes drop when you walk indoors? Why are real world 5g speeds so variable? Often, the answer lies in the specific 5g frequency bands being used. Let's explore the physics behind lte vs 5g.

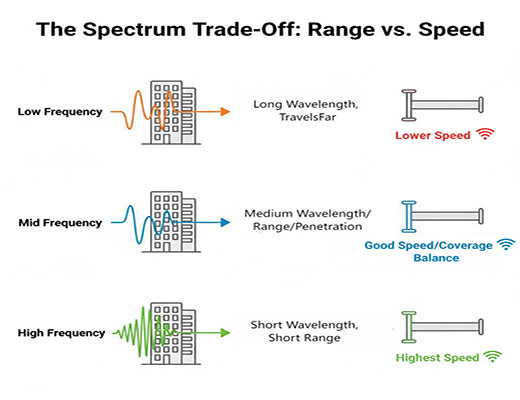

Radio waves, like all electromagnetic waves, have different properties depending on their frequency (measured in Hertz, Hz). For cellular communication ( lte vs 5g included), the critical relationship is:

• Lower Frequencies (Longer Wavelengths):
  • Travel farther (better range/coverage per tower).
  • Penetrate obstacles (buildings, walls, foliage) more effectively.
  • Carry less data per unit of time (lower bandwidth potential -> lower maximum speed).
• Higher Frequencies (Shorter Wavelengths):
  • Travel shorter distances (poorer range -> need more towers for coverage).
  • Are easily blocked by obstacles (poor penetration).
  • Carry much more data per unit of time (higher bandwidth potential -> higher maximum speed).

This fundamental physics trade-off dictates much of the strategy behind deploying lte vs 5g spectrum. There's no single "best" frequency; it's about using the right band for the right purpose.

Cellular networks operate in licensed frequency bands allocated by government regulators (like the FCC in the US - external link, opens new tab). Here's how lte vs 5g typically utilize the available spectrum:

• Frequencies: Typically 600 MHz, 700 MHz, 800 MHz, 900 MHz bands.
• Characteristics: Excellent range and building penetration. Limited bandwidth.
• LTE Use: Forms the backbone of LTE's wide-area coverage, especially in rural areas and for deep indoor signal. Essential for basic connectivity and voice (VoLTE).
• 5G Use: Also used by 5G (often shared with LTE via DSS) to provide a broad 5G coverage layer. Delivers 5G connectivity over large distances, but speeds might only be marginally better than good LTE in these bands. Crucial for ensuring baseline 5G availability.
• LTE vs 5G: Both lte vs 5g leverage low-band for coverage, but the speed experience won't be dramatically different here.

• Frequencies: Includes heavily used bands like 1.7-2.1 GHz (AWS), 1.9 GHz (PCS), 2.5 GHz, and newer 5G bands around 3.5-4.2 GHz (C-Band).
• Characteristics: A balanced blend – decent range (miles, not tens of miles like low-band), reasonable penetration, and significantly more bandwidth than low-band.
• LTE Use: Widely used by LTE Advanced for capacity and higher speeds in urban/suburban areas, often combined using Carrier Aggregation.
• 5G Use: This is the "sweet spot" and primary band for most initial 5G deployments globally. It offers a tangible speed and capacity boost over LTE ( real world 5g speeds of 150-500+ Mbps are common here) while still providing workable coverage. Technologies like Massive MIMO and beamforming are highly effective in these bands.
• LTE vs 5G: Mid-band is where the noticeable cellular performance difference between lte vs 5g truly emerges for most users today. 5G simply has access to wider channels in newer mid-bands (like C-Band).

• Frequencies: Bands like 24 GHz, 28 GHz, 39 GHz, 47 GHz.
• Characteristics: Massive amounts of available bandwidth (enabling multi-Gbps speeds). Extremely short range (hundreds of feet, not miles). Very poor penetration (blocked by walls, glass, even leaves or heavy rain).
• LTE Use: Not used by LTE.
• 5G Use: Exclusively used by 5G to deliver ultra-high speeds (eMBB) in very dense, localized areas like downtown cores, stadiums, airports, or specific enterprise venues. Requires a dense network of small cells and relies heavily on advanced beamforming to be practical.
• LTE vs 5G: mmWave is a unique 5G capability, delivering speeds far beyond anything LTE can offer, but its limited coverage makes it a capacity/speed layer, not a coverage layer. The lte vs 5g difference is most extreme here, but experienced rarely by most users.

Understanding these three tiers is fundamental to decoding the lte vs 5g spectrum strategies and performance expectations.

Carriers use several techniques to make the most of their spectrum assets for both lte vs 5g:

• Carrier Aggregation (CA): Allows a device to connect to multiple frequency bands (even across low, mid, high tiers) simultaneously and combine their bandwidth. Think of it as using multiple hoses to fill a pool faster. Both advanced LTE and 5G rely heavily on CA to achieve peak speeds. The complexity of CA combinations increases significantly with 5g vs lte.
• Dynamic Spectrum Sharing (DSS): Enables LTE and 5G signals to coexist in the same frequency band, dynamically allocating resources based on user demand. This allows carriers to deploy 5G using existing LTE bands without forcing LTE users off immediately, accelerating the 5G rollout. It's a key lte vs 5g coexistence technology. (See: Future of LTE vs 5G).
• MIMO & Beamforming: As discussed previously ( LTE vs 5G Antennas), these antenna techniques significantly improve spectral efficiency (how much data can be pushed through a given amount of spectrum) for both lte vs 5g, especially 5G.

How does understanding lte vs 5g spectrum influence your decisions?

• Device Band Support: Crucial! Your router or gateway must support the specific frequency bands used by your chosen carrier(s) in your deployment region for both lte vs 5g. A "global" device often supports dozens of bands to ensure broad compatibility. Checking band support against carrier deployments is essential.
• Antenna Selection: Different frequency bands perform best with antennas tuned for those frequencies. External antennas, correctly chosen and placed, can significantly improve performance, especially for low-band (range) or specific mid-band frequencies.
• Coverage Expectations: Don't expect multi-Gbps 5G speeds in rural areas primarily served by low-band spectrum. Set realistic cellular performance expectations based on the likely bands available at your site. A site survey measuring signal strength across different lte vs 5g bands is invaluable.
• Indoor Deployments: For deep indoor locations, low-band lte vs 5g signals will penetrate best. Mid-band might require indoor antennas or small cells. High-band mmWave generally requires dedicated indoor infrastructure.

Ignoring spectrum realities leads to poor performance and failed deployments in both lte vs 5g scenarios.

Spectrum is the invisible foundation upon which lte vs 5g networks are built. The fundamental trade-off between frequency, range, penetration, and bandwidth dictates the capabilities and limitations of each cellular generation. LTE established its dominance through effective use of low-band and mid-band spectrum for broad coverage and solid performance. 5G leverages this legacy but adds the transformative potential of wider mid-band channels and ultra-high-capacity mmWave bands, enabled by advanced antenna technologies.

Understanding how low-band vs mid-band vs high-band frequencies influence cellular performance is not just academic; it's essential for setting realistic expectations, planning effective deployments, and selecting the right hardware that truly supports the lte vs 5g spectrum available in your operating environment. The speed you get is ultimately determined by the radio waves you can catch.
