LoRa vs. LoRaWAN: A Guide for LoRaWAN Gateway Users

The terms "LoRa" and "LoRaWAN" are often used interchangeably, but they refer to two completely different layers of the IoT stack. This confusion often leads to poor hardware choices. This guide clarifies the difference: LoRa is the physical radio signal, while LoRaWAN is the networking protocol. We explain why an industrial LoRaWAN gateway is essential to bridge these two worlds. By understanding how a LoRaWAN gateway processes the LoRa modulation into manageable network packets, architects can build scalable, secure, and interoperable IoT networks rather than isolated point-to-point links.

In the world of industrial IoT, terminology can be a minefield. Two terms, in particular, cause endless confusion: LoRa and LoRaWAN.

Are they the same thing? No. Can you have one without the other? Technically, yes (but you shouldn't). Do they require different hardware? Absolutely.

For anyone deploying an industrial sensor network, understanding this distinction is critical. If you buy a simple "LoRa radio," you are building a walkie-talkie system. If you deploy a LoRaWAN gateway, you are building a cellular-grade network.

This article breaks down the technical differences and explains why the LoRaWAN gateway is the indispensable component that unites the physics of radio with the intelligence of the internet.

LoRa (Long Range) refers strictly to the Physical Layer (PHY). It is the modulation technique—the actual radio waves traveling through the air.

Think of LoRa as the "voice" of the sensor. It uses a technology called Chirp Spread Spectrum (CSS) to encode data into radio waves. This modulation is incredible because it can travel 10+ kilometers and penetrate concrete walls, all while consuming very little power.

However, LoRa by itself is "dumb."

• It has no addressing (it doesn't know who the message is for).
• It has no security (anyone can listen).
• It has no traffic control (signals collide).

A simple LoRa radio can shout "Hello," but it cannot manage a network. This is where your LoRaWAN gateway comes in. The LoRaWAN gateway is equipped with a specialized chip (concentrator) designed to listen to these raw LoRa "chirps" from the air.

LoRaWAN (Long Range Wide Area Network) is the Media Access Control (MAC) layer. It is the software standard that sits on top of LoRa.

If LoRa is the "voice," LoRaWAN is the "language" and the "conversation rules."

LoRaWAN defines how the device joins the network, how it encrypts data, and how it saves battery. Crucially, the LoRaWAN gateway is the physical hardware that enforces these rules.

When a LoRaWAN gateway receives a signal, it is looking for the specific structure of a LoRaWAN packet. It checks for the DevAddr (Device Address) and the MIC (Message Integrity Code). Without the LoRaWAN protocol, a LoRaWAN gateway would just be receiving noise.

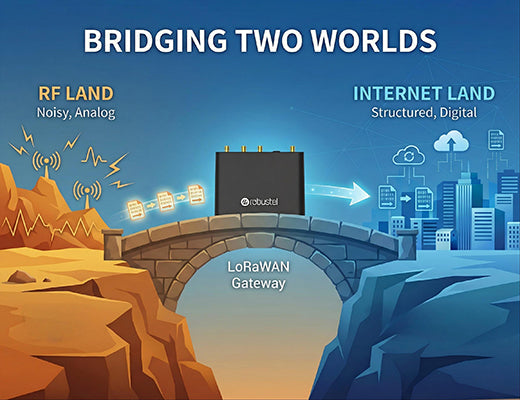

The LoRaWAN gateway is the literal interface between the PHY layer and the MAC layer.

1. Input (LoRa PHY): The antenna on your LoRaWAN gateway catches the raw LoRa radio waves.
2. Processing (Demodulation): The LoRaWAN gateway demodulates the chirp signal into digital bits.
3. Output (LoRaWAN/IP): The LoRaWAN gateway wraps those bits in an IP packet and forwards them to the Network Server.

This process highlights why the quality of your LoRaWAN gateway matters. A cheap gateway might struggle to demodulate weak LoRa signals, breaking the link before the LoRaWAN protocol can even do its job. An industrial LoRaWAN gateway like the Robustel R1520LG ensures that the physical link remains robust.

You might ask: "Can I just use LoRa Point-to-Point (P2P) without a LoRaWAN gateway?"

Technically, yes. You can have two LoRa radios talk directly to each other. This is fine for a hobbyist opening a garage door. But for industry, P2P is a dead end.

• Scalability: A P2P setup handles 2 devices. A LoRaWAN gateway handles 1,000 devices.
• Interoperability: In P2P, you are locked into proprietary code. In a network managed by a LoRaWAN gateway, you can mix sensors from different brands (Bosch, Dragino, etc.), and they all work together because they speak LoRaWAN standard.
• Cloud Integration: P2P data is stuck on the device. A LoRaWAN gateway automatically pushes data to the cloud (AWS, Azure, TTN) via cellular backhaul.

Because the LoRaWAN gateway must handle the complex intersection of Radio Physics and Network Protocols, hardware selection is vital.

An effective LoRaWAN gateway must have:

• High Sensitivity: To "hear" the faint LoRa PHY signals from miles away.
• Powerful Processor: To run the packet forwarder software that handles the LoRaWAN MAC headers.
• Robust Backhaul: To ensure the LoRaWAN packets reach the server.

If you choose a consumer-grade device, the LoRaWAN gateway often fails to process the LoRaWAN stack correctly under heavy load, leading to packet loss.

Understanding the difference between LoRa and LoRaWAN clarifies your infrastructure needs. LoRa is the amazing radio technology that gives you range. LoRaWAN is the smart networking layer that gives you security and scale.

The LoRaWAN gateway is the indispensable link that binds them.

You cannot build a professional sensor network without a professional LoRaWAN gateway. It is the device that transforms raw physics into actionable business data. By investing in a rugged LoRaWAN gateway, you ensure that your network utilizes the full power of both LoRa range and LoRaWAN intelligence.
