Choosing Your IoT Gateway Backhaul: 4G/5G Cellular vs. Wi-Fi vs. Ethernet

So, you've designed a brilliant IoT solution. You have your sensors, your cloud platform is ready, and you've selected a powerful  Industrial IoT Edge Gateway  . Now for a question that seems simple but can make or break your entire project: How will that gateway talk to the internet?

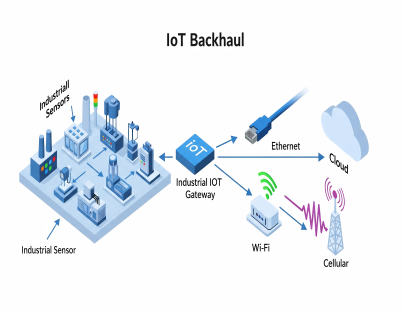

This connection is called the "backhaul," and I've seen more projects get into trouble by underestimating this choice than almost any other. Choosing the wrong IoT gateway backhaul can lead to unreliable connections, massive data bills, or inflexible deployments that can't adapt to changing conditions. Is the stability of wired Ethernet worth the installation cost? Is the flexibility of Cellular worth the data plan? Where does Wi-Fi fit in? Let's be clear: there is no single "best" answer, only the best answer for your specific application. This guide will walk you through making that decision.

• Unmatched Reliability and Stability: A physical cable is not susceptible to the radio frequency (RF) interference, signal degradation, or congestion that wireless technologies face. For a stationary gateway in a factory or building with existing network infrastructure, Ethernet provides a rock-solid, "always-on" connection.
• Highest Speed and Lowest Latency: A Gigabit Ethernet connection offers incredibly high bandwidth and the lowest possible latency, which is ideal for applications that need to transfer large amounts of data from the edge to the cloud.
• Enhanced Security: A wired connection within a secure, firewalled local area network (LAN) is inherently more secure than any wireless transmission, as it's not broadcast over the air.
• Simplified Power with PoE: Many industrial gateways, like the  Robustel R1520LG  , support Power-over-Ethernet (PoE). The real 'aha!' moment here is realizing you can run a single Ethernet cable to your gateway to provide both data connectivity and power, dramatically simplifying installation in difficult-to-reach places. You can learn more about the PoE standard from the Wikipedia.

• Lack of Flexibility: The biggest drawback is the cable itself. You are physically tethered to your network infrastructure. This makes it completely unsuitable for mobile assets and impractical for remote or temporary deployments where running a cable is too expensive or impossible.
• Installation Cost & Complexity: In existing buildings or large outdoor sites, the cost and labor required to run new Ethernet cabling can be prohibitive.

Best For: Stationary gateways in locations with existing, reliable network infrastructure, such as factories, smart buildings, and data centers.

Wi-Fi offers a convenient wireless alternative to Ethernet when you have a local wireless network available.

• Easy and Low-Cost Deployment: If you have an existing, reliable Wi-Fi network (WLAN) on-site, connecting your IoT gateway backhaul can be as simple as entering a password. This eliminates the need for any new cabling.
• Good Performance: Modern Wi-Fi standards (like Wi-Fi 5 and 6) offer high bandwidth and low latency, often sufficient for many industrial IoT applications.
• Flexibility within a limited area: It allows you to place the gateway anywhere within the range of your Wi-Fi access points without being physically tethered.

• Reliability and Interference: But here's the catch, especially in an industrial setting. Wi-Fi operates on shared, unlicensed frequency bands (2.4 GHz and 5 GHz). In an industrial environment filled with motors, metal structures, and other wireless devices, Wi-Fi is prone to RF interference, which can lead to connection instability and packet loss.
• Limited Range: The range of Wi-Fi is typically limited to tens of meters, making it unsuitable for large outdoor areas or remote deployments.
• Security Risks: A poorly configured Wi-Fi network is a significant security risk. It requires robust security protocols (WPA2/WPA3 Enterprise) and careful network management to be secure enough for industrial use.

Best For: Indoor or campus environments with existing, well-managed, and secure Wi-Fi infrastructure where running an Ethernet cable is inconvenient.

• Ultimate Deployment Flexibility:A cellular gateway can be deployed virtually anywhere there is a mobile signal. This is essential for:
  • Remote Sites: Monitoring agricultural assets, pipelines, or environmental stations.
  • Mobile Assets: Vehicle telematics, asset tracking, and in-transit monitoring.
  • Temporary Deployments: Setting up connectivity for construction sites or pop-up events.
• Rapid Installation: There's no need to coordinate with on-site IT to get access to a local network. You simply insert a SIM card, power on the device, and it's online. This dramatically accelerates deployment timelines.
• Network Resilience with Dual SIM: This is a crucial feature for industrial reliability. A gateway with dual SIM slots , like most Robustel devices, can automatically failover to a secondary carrier if the primary network goes down. This provides a level of uptime that a single wired or Wi-Fi connection cannot match.

• Recurring Data Costs: Unlike Ethernet or Wi-Fi, cellular connectivity comes with a monthly data plan. For applications that transmit a lot of data, this can become a significant operational cost. (This is a key reason why  edge computing  to reduce data volume is so important for cellular deployments).
• Potential for Signal Issues: While cellular networks are vast, coverage can still be weak or non-existent in very remote, rural, or underground locations.
• Latency: While 5G is improving this dramatically, cellular latency is generally higher than wired Ethernet, which can be a factor for some real-time control applications.

Best For: Remote monitoring, mobile applications, mission-critical systems requiring a reliable backup connection, and any deployment where flexibility and speed are top priorities.

So, which IoT gateway backhaul is best? The answer is, "it depends." There is no one-size-fits-all solution.

• Ethernet is your go-to for maximum reliability in fixed locations.
• Wi-Fi offers great convenience for indoor deployments with existing infrastructure.
• Cellular provides unparalleled flexibility and reach for almost any other scenario.

The most powerful industrial IoT edge gateways , like the  Robustel EG5120  , are designed with this reality in mind. They don't force you to choose one; they offer multiple backhaul options in a single device. This allows you to design a truly resilient connectivity strategy, such as using Ethernet as the primary backhaul and 4G LTE as an automatic backup. Understanding the strengths and weaknesses of each option is the first step to building a reliable and cost-effective IoT solution.
