A Deep Dive into the Robustel R1520LG LoRaWAN Gateway Architecture

So, you've decided to deploy a LoRaWAN solution. You've chosen your sensors and have a network server in mind, maybe a public one like LoRiot or a private one like ChirpStack. Now comes the most critical hardware decision: the gateway. It's tempting to think all LoRaWAN gateways are the same—they receive LoRa packets and forward them. But this view misses the most important part of the story. The internal LoRaWAN gateway architecture is what truly defines its performance, reliability, security, and flexibility for any deployment, public or private.

I can't tell you how many times I've seen promising IoT projects struggle because they were built on gateway hardware that couldn't handle the demands of a real-world industrial environment. A gateway isn't just a modem; it's the central hub of your entire network. In this deep dive, we'll pull back the curtain on the Robustel R1520LG, a next-generation LoRaWAN edge gateway , to see how its architecture is designed from the ground up for serious, scalable LoRaWAN deployments. This is a crucial topic covered in our  Ultimate Guide to Industrial IoT Edge Gateways.

The performance of any LoRaWAN gateway begins with its LoRa concentrator chipset. This is the component responsible for listening to multiple channels simultaneously and demodulating LoRa packets.

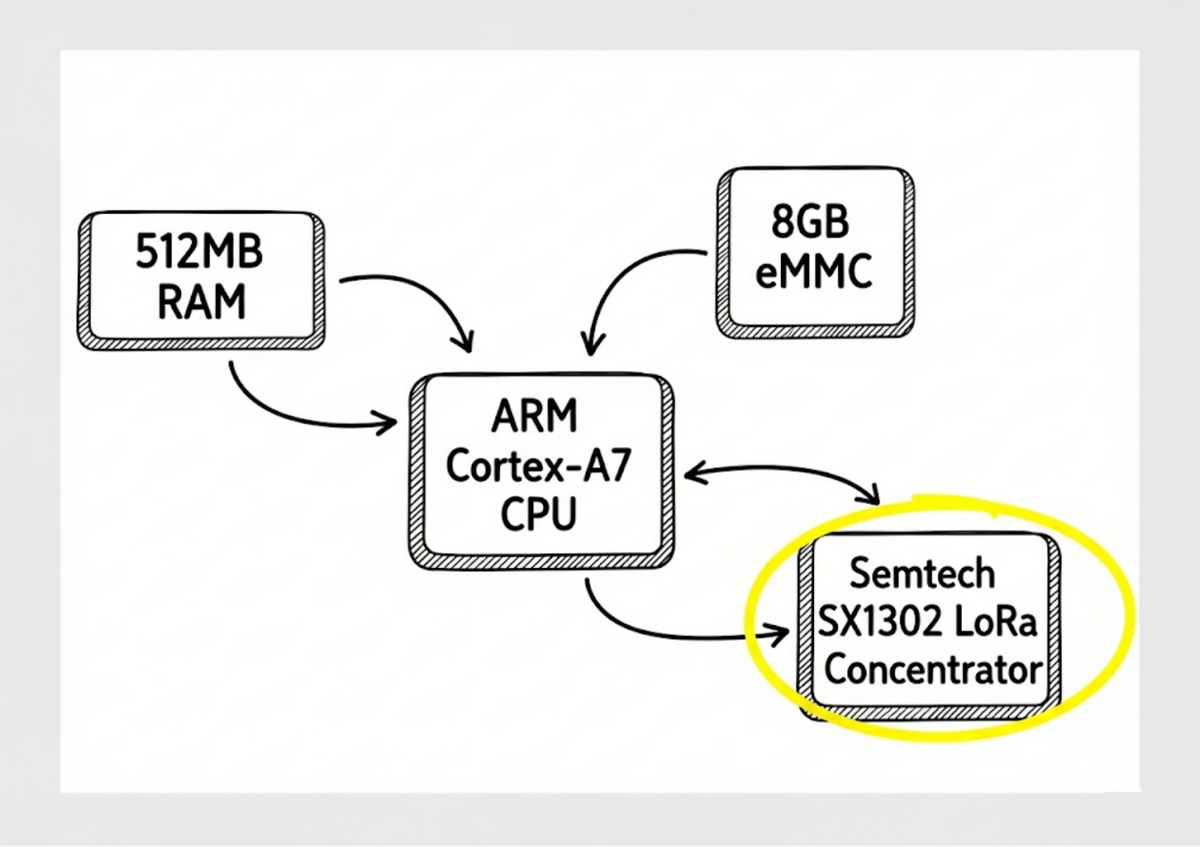

The R1520LG is built around a modern Semtech SX1302 8-channel LoRa concentrator . So, why is this important? The SX1302 represents a significant step up from its predecessor (the SX1301), offering several key advantages:

• Lower Power Consumption: It consumes significantly less power, which reduces heat and improves the overall thermal performance and lifespan of the gateway.
• Higher Sensitivity: It can demodulate signals at a much lower signal-to-noise ratio (down to -140 dBm for the R1520LG), meaning it can reliably receive data from sensors that are farther away or in challenging RF environments. In ideal, open-area conditions, this can translate to a coverage distance of up to 10-15 kilometers .
• Higher Capacity: It can handle a higher volume of LoRaWAN packets, making it better suited for dense deployments. Theoretically, a single 8-channel gateway based on the SX1302 can manage tens of thousands of end-device nodes . Let's be clear: choosing a gateway with a modern concentrator like the SX1302 is one of the single most important decisions for future-proofing your LoRaWAN network.

A modern LoRaWAN gateway architecture includes a powerful onboard computer to manage the LoRa concentrator, run the operating system, and handle network traffic.

The R1520LG is powered by a reliable ARM Cortex-A7, 792 MHz processor (NXP i.MX6ULL) , supported by 512 MB of DDR3 RAM and 8 GB of eMMC storage . While a LoRaWAN gateway doesn't always need the quad-core power of a full edge computing gateway like the EG5120, this robust CPU and ample memory are crucial for:

• Running a Stable Operating System: Provides the resources needed for the Debian-based RobustOS Pro to run smoothly.
• Handling High Network Throughput: Efficiently manages data from both the LoRaWAN interface and the various backhaul connections.
• Supporting On-Device Applications: Allows the gateway to run essential services like the ChirpStack Gateway Bridge, VPN clients, and even custom scripts without performance degradation.

A LoRaWAN gateway is only as reliable as its connection and its ability to withstand the environment it's placed in. The R1520LG's hardware architecture provides multiple, resilient backhaul options and a robust physical design for both indoor and outdoor use.

• Dual Ethernet Ports: With two 10/100 Mbps Ethernet ports, one of which supports PoE PD (Power-over-Ethernet) , the R1520LG can be powered and connected with a single cable, simplifying installation.
• 4G LTE Cellular: The integrated 4G LTE Cat 4 modem with Dual SIM failover is a critical feature. It allows the gateway to be deployed in locations with no wired internet or to be used as a backup connection if the primary Ethernet link fails.
• Wi-Fi: The gateway can use Wi-Fi as a client to connect to an existing wireless network or act as an Access Point for local configuration and management.

While described as an indoor gateway, the R1520LG is built with industrial-grade components. Its wide operating temperature range of -20°C to +60°C and IP30-rated housing mean it can be reliably deployed in protected outdoor enclosures (like IP67 -rated boxes) or in demanding indoor environments like warehouses, factories, and utility closets where standard networking equipment would fail.

The most powerful hardware is useless without a flexible and secure operating system. This is another area where a professional LoRaWAN gateway architecture stands apart.

The R1520LG runs RobustOS Pro , which is built on a stable Debian 11 (LTS) foundation . This is a game-changer for developers because it provides:

• An Open, Familiar Environment: Anyone with Linux or Raspberry Pi experience will feel at home in the command line.
• Containerization with Docker: The ability to run Docker containers allows for incredible flexibility in deploying custom applications.
• Certified Security: RobustOS Pro is developed under the IEC 62443-4-1 standard and is independently penetration tested , providing a level of security assurance that DIY solutions can't match.

A key software architecture choice for a LoRaWAN gateway is how it interacts with the network server. The R1520LG supports both primary modes, making it suitable for any deployment strategy:

1. Packet Forwarder Mode (for Public or Centralized Networks): This is the traditional mode, where the gateway simply forwards all raw LoRaWAN packets it receives to a network server (like ChirpStack, LoRiot, AWS, etc.) located in the cloud or a central data center. This is ideal for connecting to large, existing public or enterprise networks.
2. Built-in LoRaWAN Network Server (LNS) (for Private Networks): The R1520LG has enough processing power to run the entire ChirpStack LNS directly on the device. This creates a completely self-contained, all-in-one private LoRaWAN network , perfect for deployments where offline operation or ultra-low latency is required, such as in smart agriculture.

The LoRaWAN gateway architecture is a complex interplay of hardware and software designed for a single purpose: providing reliable, secure, and scalable connectivity for your IoT devices, whether for a private or public network, indoors or out. A modern industrial gateway like the Robustel R1520LG demonstrates this perfectly. By combining a high-performance Semtech SX1302 concentrator, a capable ARM processor, multiple resilient backhaul options, and a flexible, secure Debian-based operating system, it provides a powerful foundation for any LoRaWAN network.
