The Key Hardware Components That Define High-Reliability Edge Products

Not all edge products are created equal. A "cheap" edge product in a metal box is just a consumer toy in a costume. True reliability comes from the components inside. This guide dives into the five key hardware components that define high-reliability industrial edge products: industrial-grade eMMC storage (not SD cards), wide-temperature CPUs, hardened power supplies (EMC/ESD), isolated I/O ports, and fanless, heat-dissipating enclosures.

You're trying to choose an edge product for a critical project. You see a cheap, $80 router in a plastic case. You see a $200 "prosumer" router in a metal case. And you see a $600 industrial edge product from Robustel. What's the real difference? Why is the price so different?

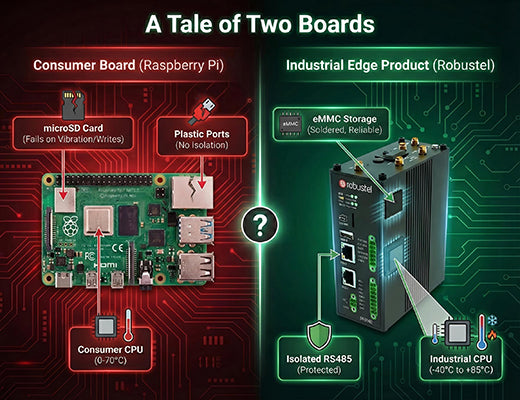

As an engineer, I can tell you the secret: it's not the box, it's the board. You can put a Raspberry Pi (a consumer edge product) in a $100 DIN-rail case, but it's still a consumer toy. It will still fail.

True reliability isn't a feature; it's an engineering discipline. It's a set of deliberate, expensive component choices that separate professional edge products from everything else. Let's look at the five key hardware components that actually matter.

This is the most important differentiator.

• Consumer/DIY Edge Products: Use a removable microSD card for their operating system. This is a consumer-grade component designed for cameras. It fails in two ways:

1. Vibration: It's held in by a tiny spring. Constant factory vibration will cause micro-disconnects and data corruption, bricking your edge product.
2. Write Cycles: An OS performs thousands of small read/write operations 24/7. SD cards are not built for this and will wear out and corrupt, often within 6-12 months.

• High-Reliability Edge Products: Use eMMC (Embedded MultiMediaCard). This is industrial-grade flash memory that is soldered directly to the board (vibration-proof). It has built-in wear-leveling and is designed for 10+ years of 24/7 OS-level operation. This is the first thing you should look for on a spec sheet. If your edge product uses an SD card, it is not industrial.

It's not just about speed; it's about temperature.

• Consumer Edge Products: Use a commercial-grade CPU rated for 0°C to 70°C (32°F to 158°F). This is the temperature of the chip itself. In a 50°C (122°F) fanless box, that CPU will overheat, throttle, and crash.
• Rugged Edge Products: Use industrial-grade CPUs, RAM, and components. These are far more expensive parts that are certified to operate at a system ambient (air) temperature of -40°C to +75°C (-40°F to 167°F). This edge product is built to survive in a locked metal cabinet in a Texas summer or a Canadian winter.

Factory power is not "clean" like your office power. It's "dirty"—filled with voltage spikes, sags, and electrical "noise" (EMC/EMI) from motors, VFDs, and welders.

• Consumer Edge Products: Use a cheap 5V or 12V "wall-wart" adapter. This has zero protection. The first voltage spike from a nearby motor will fry the device.
• Rugged Edge Products: Have a robust power supply on the board.

1. Wide-Voltage Input: It accepts a wide range (e.g., 9-36V DC) to handle sags and spikes without resetting.
2. EMC/ESD Filtering: It has heavy-duty circuits (TVS diodes, isolation) to filter out electrical noise before it can crash the CPU. A true industrial edge product is designed to survive an electrically hostile environment.

This is a subtle but critical failure point.

• Consumer Edge Products: Give you plastic RJ45s and USB ports. These are not isolated. A voltage spike or static shock on one of these ports can travel directly to the CPU and kill the entire edge product.
• Rugged Edge Products: Use galvanically isolated ports, especially for industrial I/O like RS485 (for Modbus) or CAN bus. This means there is no direct electrical connection between the port and the CPU. A 2,500V spike on the RS485 line will be stopped dead at the port, protecting the "brain" of the edge product. This is essential for any edge product connecting to external machinery.

The box does matter, just not for the reasons you think.

• Consumer Edge Products: A plastic case traps heat. If it has a fan, that fan is a moving part that will fail, and it actively sucks in dust, oil, and moisture, shorting out the board.
• Rugged Edge Products: Use a fanless, metal (aluminum) enclosure. This isn't just for looks. The entire case is engineered to act as a giant, passive heat sink, drawing heat away from the CPU and dissipating it silently. No moving parts means no failures, and no vents means protection from dust and moisture.

A truly rugged edge product is not a single feature. It's an engineering philosophy. It's a system of reliable components working together.

It's the eMMC storage that survives the vibration, the wide-temp CPU that survives the heat, the isolated power supply that survives the noise, and the fanless case that protects it all. This is why a professional industrial edge product has a higher upfront price, and a massively lower TCO. When you choose an edge product, you're not buying specs; you're betting on the quality of these hidden components.
