How to Build a Cloud-Managed Access Control System: A 4-Step Guide

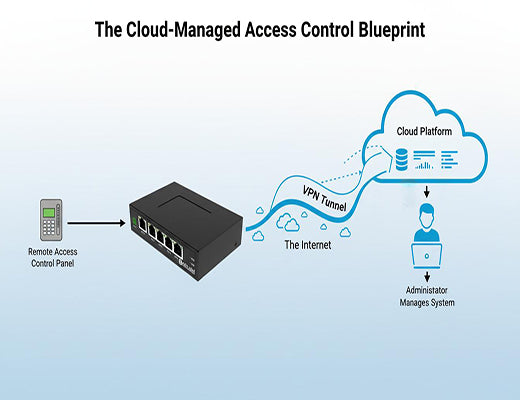

This guide provides a practical, 4-step framework for how to build an iot access control system by connecting your existing on-site hardware to the cloud. We'll walk you through the architecture, from connecting your access control panel to a secure industrial router, to establishing a VPN tunnel and integrating with your cloud platforms. This approach allows you to modernize your physical security for scalable, remote management without a costly "rip and replace" of your existing infrastructure.

You've just won a contract to manage physical access for a client with 20 small retail locations. The thought of installing, configuring, and maintaining 20 separate, on-premise access control servers is a logistical and financial nightmare. How do you update user credentials? How do you pull an audit log after an incident? It’s a model that simply doesn't scale.

What if you could manage all 20 of those locations—and the next 200—from a single web browser?

Let's be clear: you can. The modern approach is to build a centralized, cloud-managed system. And the best part? You don't have to build it from scratch. This guide will show you how.

Before we start, the most important concept to grasp is that we are not trying to reinvent the wheel. The professional-grade access control panels at your doors are very good at their primary job: making a split-second, reliable decision to open a lock. Our goal is not to replace that, but to securely connect access control panel to cloud platforms for centralized management.

The foundation of your system is the reliable hardware already at the door:

• The Access Control Panel: The local controller from a trusted brand.
• The Readers & Locks: The card readers, keypads, and electric strikes.

The key requirement for this guide is that your access control panel must have an IP network port (Ethernet). This is the physical gateway to getting it online.

This is the most critical step. You need a device to act as a secure bridge from the panel's local network to the public internet. A consumer-grade router is a security flaw waiting to happen.

• The Hardware: Choose a professional industrial router, like the Robustel R2111.
• The Connection: Simply connect an Ethernet cable from your access control panel's network port to one of the LAN ports on the R2111.
• The Uplink: The R2111 then uses its primary WAN connection (either a wired line or, more commonly for this application, its built-in 4G/LTE cellular modem) to connect to the internet.

Now that you have a physical connection, you must secure it. Sending unencrypted access control data over the public internet is not an option.

• The Task: Configure a VPN (Virtual Private Network) tunnel between your R2111 router and your cloud platform's endpoint. This creates a private, encrypted "armored truck" for your data.
• The Tool: The R2111's web GUI makes this simple. You can configure a robust IPsec or OpenVPN tunnel in minutes, ensuring all communication is completely secure and hidden from the outside world.

The final step is to bring it all together in the cloud. The 'aha!' moment for many integrators is realizing you'll be interacting with two complementary cloud platforms:

• The Access Control Cloud Platform: This is the application where you will manage the doors—adding users, setting schedules, and viewing audit logs. The platform communicates with your on-site panel through the secure VPN tunnel you just created.
• The Device Management Cloud Platform (RCMS): This platform, like Robustel's RCMS, manages the bridge itself—the R2111 router. From RCMS, you can monitor the router's connectivity, get alerts if a site goes offline, perform remote troubleshooting, and push security updates.

That's how to build an iot access control system in the modern era. By following this simple, 4-step integration playbook, you transform a collection of isolated, on-premise systems into a single, secure, and globally manageable network. For system integrators, this approach not only drastically reduces the complexity and cost of multi-site deployments but also creates a powerful foundation for offering high-value, recurring revenue services like "Access Control as a Service."
