Smart Power Distribution Room Monitoring with R1520 Gateway: Low-Cost RS485+DI+DO Integration for Data Acquisition & Remote

Let's be honest, for many small to medium-sized businesses, the power distribution room is an out-of-sight, out-of-mind utility closet. It’s the humming heart of the operation, but it's often a black box. You rely on manual checks to record energy data, and you only find out about an electrical fault like an overcurrent or phase loss when the lights go out and production grinds to a halt. In my experience, this reactive approach isn't just inefficient; it's a significant business risk. What if you could have a 24/7 digital watchman in that room, giving you real-time data and the power to act, even when you're miles away?

This is where a truly integrated approach to smart power distribution room monitoring comes in. You don't need a complex, expensive SCADA system. In fact, you can achieve a miniature, powerful "plant operations monitoring system" with a single, versatile industrial gateway. We're going to break down how one device can become the central nervous system for your electrical safety and efficiency.

I once spoke with a factory owner, let's call him Dave. Dave’s facility had a critical circuit that, if it tripped, would spoil an entire batch of product. The problem? The only alert he'd get was a frantic call from the shop floor, by which time the damage was done. He had no visibility into rising current loads that might predict a trip, no log of when the breaker actually opened, and certainly no way to safely shut down a secondary circuit remotely in an emergency.

Dave's situation is incredibly common. The key challenges are:

• Lack of Real-time Data: Manual meter reading is labor-intensive and provides zero insight into real-time power consumption, voltage fluctuations, or current spikes.
• Delayed Fault Response: When a circuit breaker trips, the response is always reactive. There's no immediate, automated alert sent to the right personnel, leading to prolonged downtime.
• No Remote Control Capability: In an emergency, like a fault detected by a smoke sensor, there's no way to remotely and safely de-energize a circuit to prevent further damage or a potential fire.

The real 'aha!' moment for many engineers is realizing that a modern industrial gateway isn't just for internet access. The right device, like the Robustel R1520, is a multi-tool for control and automation. It consolidates the functions of a data logger, a remote terminal unit (RTU), and a communications gateway into one box.

Here’s how its built-in interfaces work together to create a comprehensive smart power distribution room monitoring solution.

The most crucial element of any monitoring system is data. The R1520’s RS485 serial port acts as the primary data collector.

• What it connects to: Your multifunction power meters. Almost every modern power meter uses the Modbus RTU protocol over an RS485 interface to output a treasure trove of electrical data.
• What it does: The R1520 can be configured to poll the power meter(s) at regular intervals, reading dozens of parameters.
• The result:You get a continuous, real-time stream of all critical electrical data, including:
  • Voltage (V)
  • Current (A)
  • Power (kW, kVA, kVAr)
  • Energy Consumption (kWh)

This turns your passive electrical panel into a dynamic source of business intelligence for energy management and cost control.

A Digital Input is a simple but powerful tool; it tells you if something is "on" or "off." In our smart power distribution room monitoring setup, it acts as a 24/7 sentry.

• What it connects to:

1. Circuit Breaker Auxiliary Contacts: Most industrial circuit breakers have a slot for an auxiliary contact. This contact physically changes state when the breaker trips or is manually operated.
2. Environmental Sensors: Simple devices like smoke detectors, water leak sensors, or door magnetic contacts often have a dry contact output.

• What it does: The R1520’s DI port continuously monitors the state of these contacts. If a breaker trips or a smoke alarm is triggered, the circuit state changes, and the R1520 knows instantly.
• The result: You get immediate, automated alerts for critical physical events, turning a silent fault into an actionable notification via SMS or a cloud platform.

The Digital Output is your hand to reach into the power room from anywhere. It's a relay that you can command to open or close a circuit remotely.

• What it connects to: A circuit breaker's shunt trip coil. This accessory, when energized, mechanically trips the breaker.
• What it does: The R1520’s DO port is wired to the shunt trip coil. When an authorized operator sends a command (via a secure cloud platform like RCMS or even a specially coded SMS), the R1520 energizes its DO relay for a moment.
• The result: You gain the ability for remote circuit breaker control. In a confirmed emergency, you can instantly and safely trip a critical circuit to prevent catastrophic failure, without needing anyone to be physically present.

So, how does this all come together? Let's go back to our factory owner, Dave.

1. Data Collection: His new R1520 is now polling his main incomer's power meter every 5 seconds via RS485. He can see his factory's power draw in real-time on his RCMS dashboard.
2. Intelligent Alerting: Dave has set up a simple alert: IF Current > 180A FOR 60s, THEN send SMS to 'FactoryManager'. This gives his team a heads-up about a sustained overload condition before the breaker trips.
3. Event-Driven Action: A DI is connected to a smoke detector. Another alert is configured: IF DI_SmokeDetector = ON, THEN send High-Priority SMS to 'Dave' AND 'EmergencyTeam'.

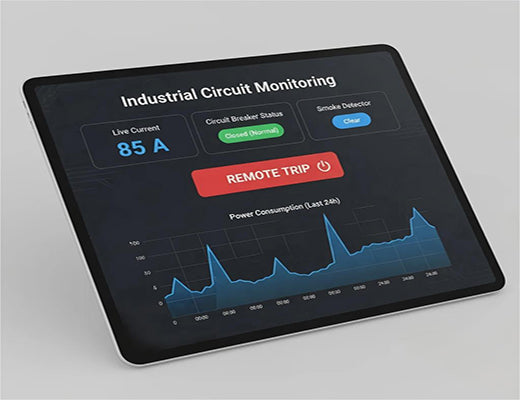

4. Remote Intervention: One day, Dave receives the smoke detector alert. He checks his security cameras and confirms there's an issue with a specific piece of machinery. From his phone, he logs into the secure RCMS platform and activates the DO connected to that machine's circuit breaker. The breaker trips instantly, de-energizing the faulty equipment and preventing a fire.

This is the power of an integrated smart power distribution room monitoring system. It's not just about data; it's about turning data into decisive, protective action. For an in-depth look at industrial communication protocols, check out this resource from IEC.

Adopting this kind of integrated smart power distribution room monitoring solution with a device like the R1520 delivers value far beyond its cost.

• Massive Cost Reduction: You're essentially getting a micro-SCADA and remote management system for the price of a single industrial gateway. This eliminates the need for separate RTUs, data loggers, and communication modules.
• Increased Safety and Security: Proactive alerts and the ability to perform remote emergency shutdowns significantly enhance the safety of your personnel and the security of your assets. You can learn more about electrical safety standards here.
• Optimized Operations: Real-time energy data allows for proactive maintenance and better energy management strategies, while instant fault alerts drastically reduce Mean Time to Repair (MTTR) and minimize costly downtime.
• Scalability: This concept is perfectly scalable. You can start with monitoring one critical panel and easily expand the system to cover your entire facility, all managed through a single cloud platform.

The magic isn't just in the hardware's capabilities; it's in the linkage of RS485, DI, and DO functions to create a closed-loop system of monitoring, alerting, and control. It’s about making your infrastructure work for you, intelligently and affordably.
