How a Secure Edge Router Stops Ransomware from Reaching Your OT Network

For a factory, ransomware is an existential threat. This guide explains how a secure edge router acts as the critical "digital airlock" to protect your vulnerable OT network (PLCs, SCADA) from attacks originating on the IT network. We'll show how a properly configured industrial edge router uses a stateful firewall and network segmentation to make your machines invisible to malware. This isn't just a router; it's the most important ot security device you own.

It's the scenario that keeps plant managers and CISOs awake at night. An employee in accounting clicks a phishing email. Ransomware silently encrypts their PC. But it doesn't stop there. It starts scanning the network. It finds a "flat" network architecture and jumps from the IT network (the office) to the OT network (the factory floor).

Suddenly, your HMIs are frozen. Your PLCs are encrypted. Your entire production line is dead in the water, held hostage.

This isn't a theory. It has happened to some of the world's largest industrial companies. The problem is that your PLCs and SCADA systems were never designed for this. They are "trusting" devices with no patches and no passwords. They were born behind a physical "air gap" that no longer exists.

You must connect your OT network for data. But how do you do it without exposing your entire operation to ruin? The answer is not a standard router. The answer is a professional, secure edge router.

Your PLCs are reliable, but they are not secure.

• They run on 20-year-old firmware that can't be patched.
• They speak open protocols like Modbus with zero encryption.
• They have no "Access Control" and will obey any command from any device on their network.

A standard IT edge router (like your office router) is not designed to protect this. It's designed to let users access the internet. A cheap consumer edge router is a wide-open door. You need a purpose-built industrial edge router that is designed as a security-first device.

A secure edge router is not just a router; it's a stateful firewall and a security gateway. Its entire job is to be the "border guard" that creates a digital airlock between your "dirty" IT network and your "clean" OT network.

Here is how this edge router provides a multi-layered defense to stop ransomware cold.

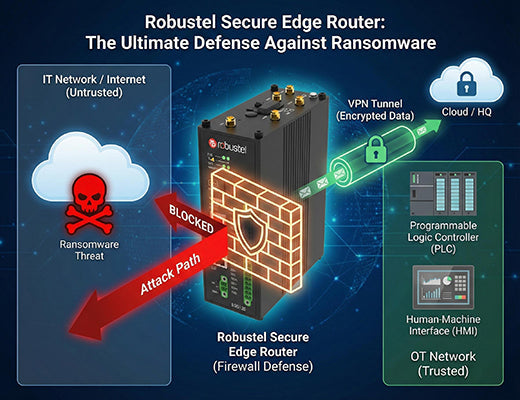

This is the most critical function. You never let your IT and OT networks talk directly. You force them to go through the secure edge router.

• The Architecture:

1. The edge router's WAN Port connects to the "Untrusted" IT network or a 4G/5G cellular link.
2. The edge router's LAN Port connects to a small, new, isolated "OT Bubble" network (e.g., 192.168.100.x). Your PLCs and HMIs live only in this bubble.

• The Result: The edge router creates a new, digital "air gap." The ransomware scanning the IT network cannot even see the PLC's IP address. It doesn't know it exists.

This is the core rule of ot security. A firewall is not "allow some"; it's "deny all."

• The Rule: The secure edge router is configured to DENY ALL INBOUND TRAFFIC by default. No exceptions.
• The "Pinhole": You then create one tiny, specific rule. For example: "Allow the edge router itself (at 192.168.100.1) to make an OUTBOUND connection on port 8883 to the cloud server at 52.1.2.3."
• How it Stops Ransomware: The ransomware is on the IT network, trying to initiate a connection inbound to your PLC. The edge router's firewall instantly drops this packet. It's not on the allow list. The attack is stopped before it can even knock on the door. This one edge router function is your primary defense.

Even the outbound data needs protection.

• The Function: The industrial edge router takes the Modbus or S7 data from the PLC and wraps it in a secure, encrypted VPN tunnel (like IPsec or OpenVPN).
• The Result: It sends this secure tunnel through the IT network to your cloud. Even if a hacker is sniffing your IT network, they can't read your production data. This edge router makes your data invisible.

"But what if my engineer needs to get in to fix the PLC?"

• The BAD Way: Create another firewall rule: "Allow TIA Portal on port 102." This is a permanent, risky hole.
• The SECURE Edge Router Way: You use Add One Product: RCMS and RobustVPN. This is a zero-trust solution. The edge router's firewall remains closed. Your engineer logs into RCMS (with 2FA), and RCMS creates a temporary, on-demand, authenticated VPN tunnel directly to that edge router. When the engineer logs off, the tunnel is destroyed.

This is the final, crucial point. How do you trust your edge router? Any vendor can claim their edge router is a secure firewall. But is it? Has it been tested?

A "prosumer" edge router is a black box. A true secure edge router comes with proof.

• The Standard:IEC 62443 is the global standard for industrial cybersecurity.
• The Proof: Robustel's edge router development process is certified to IEC 62443-4-1. This is an independent, third-party audit that proves we build security into our edge router from the first line of code. We conduct penetration testing. We have a formal vulnerability response plan.

You are trusting this single edge router with the safety of your entire factory. You must demand this level of certified security. This is what makes a Robustel edge router a true ot security appliance.

A "flat network" is a ransomware attack waiting to happen. The old physical "air gap" is gone, but the need for security is higher than ever.

A professional, secure edge router is the modern, digital air gap. It's the intelligent firewall that isolates your vulnerable PLCs. It's the secure VPN that encrypts your data. And it's the "airlock" that gives your engineers safe access without compromising your network.

This industrial edge router is not a liability; it is your most important defense.
