Connectivity Protocols for Edge Devices: 5G, Wi-Fi 6, and LoRaWAN

An edge device is useless if it is disconnected. However, choosing the right connectivity protocol is one of the hardest decisions in IoT architecture. There is no "One Ring to Rule Them All." This guide compares the three dominant contenders: 5G (for mobility and speed), Wi-Fi 6 (for high-density indoor environments), and LoRaWAN (for long-range, low-power sensing). We break down the "Iron Triangle" of wireless networking—Speed, Range, and Power—to help you match the right protocol to the right edge device for your specific use case.

The intelligence of an edge device is defined by its processor, but its value is defined by its connection.

If a smart camera detects a fire but cannot transmit the alert because the signal is weak, the system has failed.

Network architects today are faced with a confusing menu of wireless options. Marketing teams hype 5G as the solution to everything, while IT departments push for Wi-Fi 6 upgrades. Meanwhile, Operational Technology (OT) teams advocate for LoRaWAN.

The truth is, a robust network often uses all three.

To select the right module for your edge device, you must understand the strengths and weaknesses of each protocol. This guide provides a technical comparison to help you choose.

Best For: Mobile assets, Outdoor sites, Ultra-Low Latency control.

5G is not just faster 4G. It introduces "Ultra-Reliable Low Latency Communications" (URLLC).

If you have an edge device installed in an autonomous vehicle, a drone, or a remote oil well, 5G is the king.

• Pros: It works everywhere there is a cell tower. It handles high speeds (moving vehicles). It offers public or private network options.
• Cons: High power consumption. A 5G edge device usually needs a constant power source or a massive battery. It is also more expensive per module.
• The Edge Case: A 5G gateway acting as the primary backhaul for a remote solar farm, streaming video security feeds and controlling inverters in real-time.

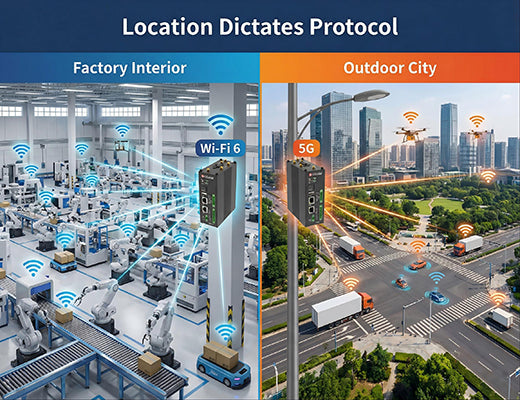

Best For: Static factory machines, Warehouses, Offices.

Wi-Fi 6 was built for congestion.

In a factory with 500 robotic arms and 200 tablets, older Wi-Fi would crash. Wi-Fi 6 uses technologies like OFDMA to allow multiple devices to talk simultaneously.

• Pros: Extremely high bandwidth (Gigabits). Low hardware cost. easy integration with existing IT infrastructure.
• Cons: Limited range (feet, not miles). Poor handover (roaming between access points disconnects the session). High power drain.
• The Edge Case: An edge device mounted on a CNC machine inside a factory, transmitting high-frequency vibration data to a local server.

Best For: Battery-powered sensors, Smart Cities, Agriculture.

LoRaWAN (Long Range Wide Area Network) is the opposite of Wi-Fi. It is incredibly slow, but it can shout a whisper that travels 10 miles.

• Pros: Massive range (10km+). Incredible battery life (a coin cell lasts 5 years). Deep penetration through concrete and steel.
• Cons: Tiny bandwidth (Bytes, not Megabytes). High latency. You cannot send video or audio.
• The Edge Case: A battery-powered edge device buried in a manhole cover monitoring water levels, reporting status once per hour.

The most sophisticated IoT deployments use a "Gateway Architecture" that combines these protocols.

Imagine a Smart City solution for parking.

1. LoRaWAN: Hundreds of small battery-powered sensors are glued to parking spots. These are simple edge nodes.
2. Aggregation: They send data to a central edge device (The Gateway) mounted on a street pole.
3. 5G: The Gateway aggregates the data and uses a 5G modem to blast the information to the cloud.

In this scenario, the edge device is a bridge. It utilizes LoRaWAN to talk "South" to the sensors (saving their battery) and uses 5G to talk "North" to the internet (providing speed).

Don't ask "Which is better?" Ask "What is the data?"

If your edge device is sending video, you need 5G or Wi-Fi 6. If it is sending a temperature reading once an hour, 5G is a waste of money and battery; LoRaWAN is the answer.

By understanding the physics of connectivity, you can build a fleet of edge devices that are cost-effective, reliable, and perfectly suited to their environment.
